B7218-C-T-P4S-UL main spindle bearing 90x160x30 mm,P4 Grade,15 degrees Contact Angle

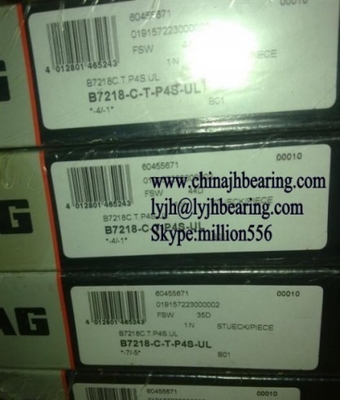

Large Image : B7218-C-T-P4S-UL main spindle bearing 90x160x30 mm,P4 Grade,15 degrees Contact Angle

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	B7218-C-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	No Seal
Number Of Row:	Single Row

FAG bearings B7218-C-T-P4S-UL adjusted, in pairs or sets, contact angle α = 15°, restricted tolerances
d: 90mm D: 160mm B: 30mm
Type:	B	Standard Steel balls
Dimension series:	72	Heavy series
Dimension(dxDxh)		90x160x30mm
Contact angle:	C	C =15° E = 25°
Cages:	T	Plastic fiber cage, outer ring guided
Precision:	P4S	P4S FAG standard, reference to DIN620, higher than P4
Bearing arrangement:	U	single bearing, universal assemble
Preload:	L	light preload

B7218.C.T.P4S.UL High Precision Ball Bearing,Machine tool main spindle bearing
B7218CTP4SUL FAG High Speed Angular contact Ball Bearing
15 degrees Contact Angle
P4 Grade
90mm x 160mm x 30mm
Made in Germany

B7218-C-T-P4S-UL FAG High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phenolic cage, bearing is P4 quality and made in Germany

Item: B7218.C.T.P4S.UL FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular contact Ball Bearing

ball: steel

Quality: P4 Grade

Dimensions: 90mm x 160mm x 30mm /Metric

ID (inner diameter)/Bore: 90mm

OD (outer diameter): 160mm

Width/Height/thickness: 30mm

Size:90 x 160 x 30 mm

Quantity: One Bearing

Dynamic load rating Cr: 122000 N

Static load rating Cor: 104000 N
