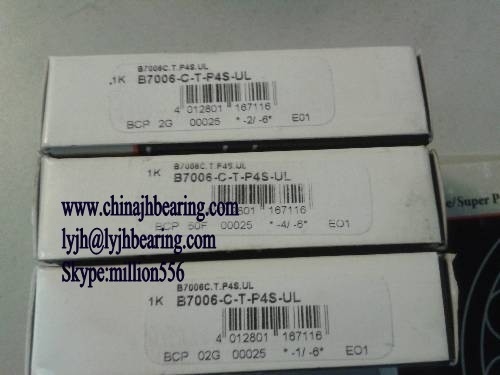

JinHang precision B7006-C-T-P4S-UL Machine tool main spindle bearing,FAG Original

Large Image : JinHang precision B7006-C-T-P4S-UL Machine tool main spindle bearing,FAG Original

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	B7006-C-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	No Seal
Number Of Row:	Single Row

FAG bearings B7006-C-T-P4S-UL
d: 30mm D: 55mm B: 13mm
Type:	B	Standard Steel balls
Dimension series:	70	Medium series
Dimension(dxDxh)		30x55x13mm
Contact angle:	C	C =15° E = 25°
Cages:	T	Plastic fiber cage, outer ring guided
Precision:	P4S	P4S FAG standard, reference to DIN620, higher than P4
Bearing arrangement:	U	single bearing, universal assemble
Preload:	L	light preload

B7006.C.T.P4S.UL High Precision Ball Bearing B7006-C-T-P4S-UL Machine tool main spindle bearing

B7006CTP4SUL FAG High Speed Angular Spindle Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phonetic cage, bearing is P4 quality and made in Germany

Item: B7006-CTP4SUL FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular Contact Ball Bearing

ball: steel ball

Quality: P4 Grade

Dimensions: 30mm x55mm x13mm /Metric

ID (inner diameter)/Bore: 30mm

OD (outer diameter): 55mm

Width/Height/thickness: 13mm

Size:30 x 55 x 13mm

Quantity: One Bearing

Dynamic load rating Cr: 15400 N

Static load rating Cor: 7300 N
