010.40.800 Four Point Contact Ball Slewing Bearing 922x678x100mm
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P0 P6 P5 | Seals Type: | Double Sealed |
|---|---|---|---|
| Teeth: | Without Teeth | Service: | Offer Drawing And Calcuation |
| Structure: | Four Point Contact Ball Slewing Bearing | Material: | 42CrMo,50Mn |
| Clearance: | Axial Direction |

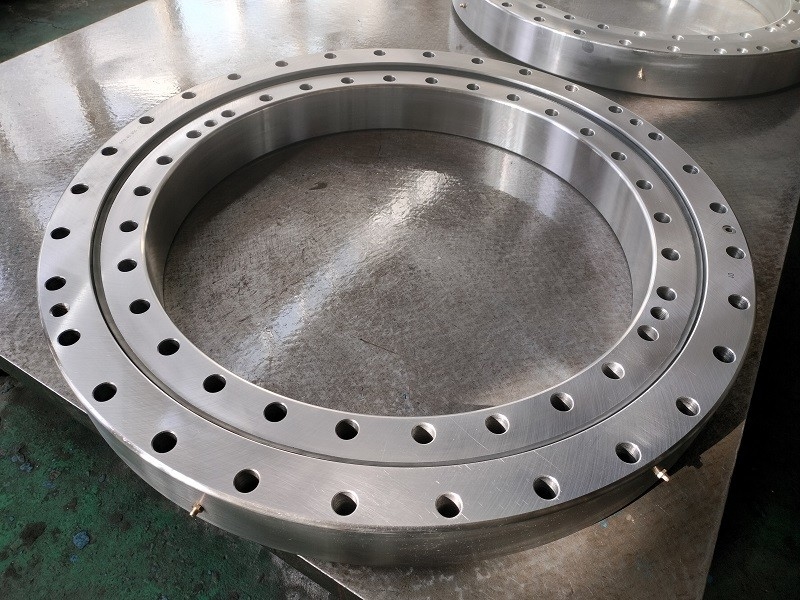

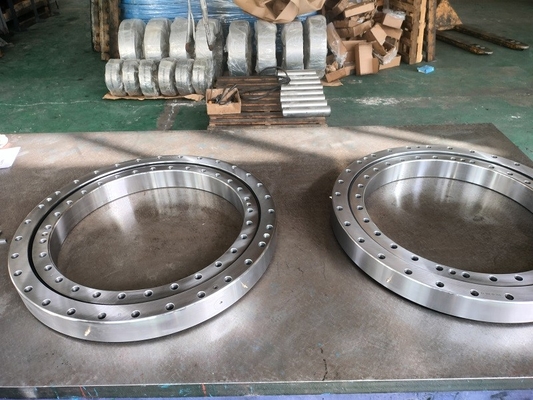

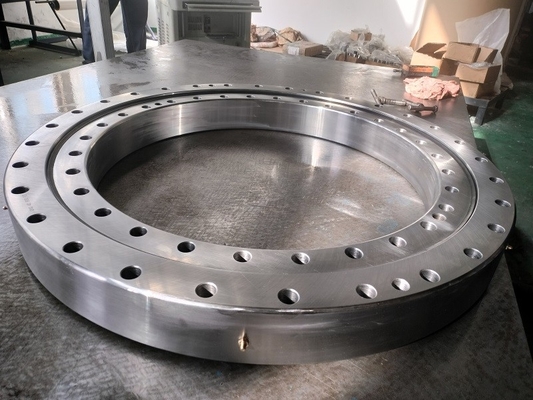

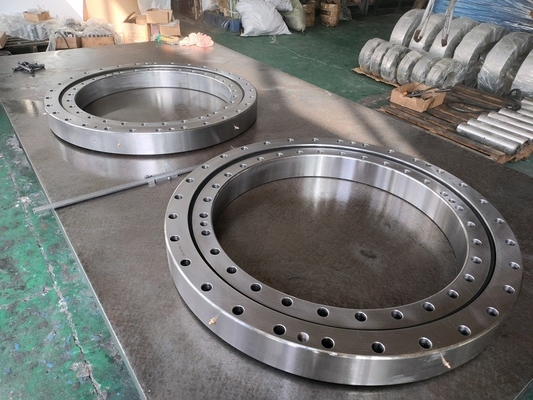

010.40.800 four point contact ball slewing bearing 922x678x100mm
The bearing 010.40.800 structure four point contact ball slewing bearing without teeth. The full size 922*678*100mm mainly used for mining Swing conveyor base.
The turntable ball bearing 010.40.800details as following:
The bearing type:010.40.800
Production Capacity :1000PCS/month
The bearing structure: Four point contact ball bearing
The bearing teeth:without gear/teeth
The bearing full size:36.3x26.7x3.93 inch size
The bearings outside diameter:36.3 inch size
The ball bearings inside diameter:26.7 inch size
The bearing total width:3.93 inch size
The shipping port:Shanghai or Qingdao seaport
The shipping way:by air or by sea
HS Code:8482103000
The bearing boundary metric size:922X678X100MM
The bearing outer diameter :922mm
The bearing inner diameter:678mm
The bearing height:100mm
The rolling element: ball
The bearing ring material:50Mn,42CrMo
The bearing type:010.40.800
Production Capacity :1000PCS/month
The bearing structure: Four point contact ball bearing
The bearing teeth:without gear/teeth
The bearing full size:36.3x26.7x3.93 inch size
The bearings outside diameter:36.3 inch size
The ball bearings inside diameter:26.7 inch size
The bearing total width:3.93 inch size
The shipping port:Shanghai or Qingdao seaport
The shipping way:by air or by sea
HS Code:8482103000
The bearing boundary metric size:922X678X100MM
The bearing outer diameter :922mm
The bearing inner diameter:678mm
The bearing height:100mm
The rolling element: ball
The bearing ring material:50Mn,42CrMo
The bearing service:offer assembly drawing and life usage calculation
The bearing ball material:GCr15
The bearing manufacture process:make forging, lathe process, raceway queching and raceway grinding and drill hole ,and assembly the whole unit bearing.
The bearing package:strong wooden case
The slewing bearing is a basic mechanical component for engineering machinery, mining machinery, construction machinery and other machineries that require relative rotary motions of two parts. The slewing bearing serves to transmit movement, bears load, and connect. However, different from bearing applications, the slewing bearing is generally suitable for low speed and heavy load.
The slewing bearing has a wide range of applications including engineering machinery, e.g. truck crane, excavator, and tower crane; mining machinery, e.g. bucket wheel machine;
metallurgical industry, e.g. clay gun, ladle turret, furnace cover slewing mechanism, etc. It is also used for port machinery, welding machinery, wind power generating equipment, medical equipment, e.g. CT machine, etc.
