High Speed Machine Tool Main Spindle Bearing 7024AC 12018028mm

Large Image : High Speed Machine Tool Main Spindle Bearing 7024AC 120*180*28mm

Product Details:

Place of Origin:	China
Brand Name:	JHB or your required
Certification:	Quality certificate
Model Number:	7024AC

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	100USD
Packaging Details:	Carton or standard export wooden case
Delivery Time:	IN STOCKS
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Material:	Steel GCr15SiMn	Structure:	Angular Contact Ball Bearing
Cage Material:	Steel/Nylon	Rolling Elements:	Ball
Precision Grade:	P4 P2 Grade	Application:	High Speed Machine Tool Main Spindle
Lubrication:	Oil Lubrication	HS Code:	8482200000

High speed machine tool main spindle bearing 7024AC 120*180*28mm

7024C 7024AC 7024B High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 15 degrees 25 degree 40 degree contact angle and steel cage, bearing is P4 P2 quality and made in China. They are mainly used in holder sleeve,Multispindle drilling head,Grinding workhead,Lathe spindle.

High Speed Machine Tool Main Spindle Bearing 7024AC 120*180*28mm

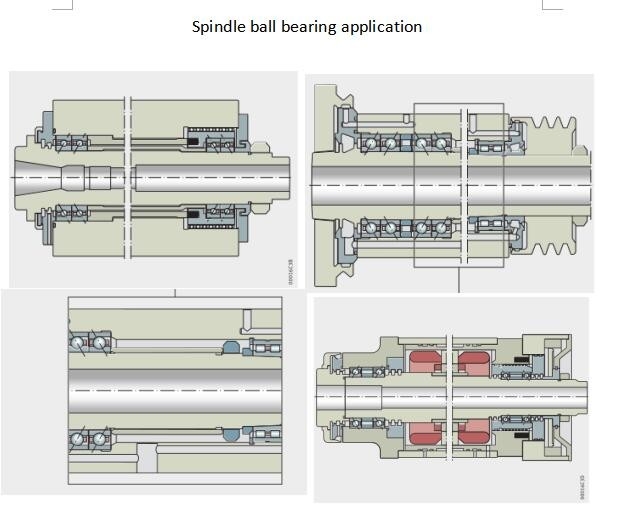

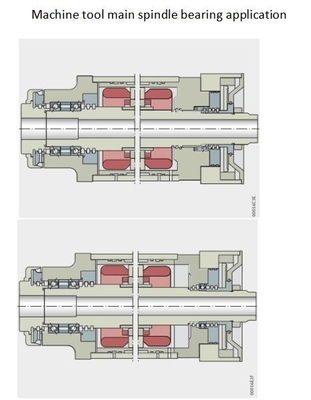

The bearing application: high speed machine tool main spindle Tool holder sleeve,Multispindle drilling head,Grinding workhead,Lathe spindle.

The bearing shipping term:By DHL or UPS or Fedex

The payment term:T/T,WU,L/C at sight

The bearing rolling element:Ball

The ball bearing material:Steel ball, ceramic ball

The bearing ring material:super chorme steel

High Speed Machine Tool Main Spindle Bearing 7024AC 120*180*28mm

Back to back bearing arrangement
Face to face bearing arrangement
Tandem bearing arrangement
DB:Back-to-back arrangement Designation suffix DB
DF:Designation suffix DB Designation suffix DF (FF)
DT:Tandem arrangement Designation suffix DT (T)
TBT:Back-to-back and tandem arrangement Designation suffix TBT (TD)
TFT:Face-to-face and tandem arrangement Designation suffix TFT (TF)
TT:Tandem arrangement Designation suffix TT (3T)
QBC:Tandem back-to-back arrangement Designation suffix QBC (TDT)
QFC:Tandem face-to-face arrangement Designation suffix QFC (TFT)
QBT:Back-to-back and tandem arrangement Designation suffix QBT (3TD)
QFT:Face-to-face and tandem arrangement Designation suffix QFT (3TF)
QT:Tandem arrangement Designation suffix QT (4T)
