Tubular Strander single row cylindrical Roller Bearing 527458 P5 Grade,
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | GCr15SiMn | Cage Material: | Brass/steel |
|---|---|---|---|
| Clearance: | C1 C2 C0 C3 C4 | Precision Grade: | P5 P6 |
| Application: | Tubular Strander Machine | Feature: | High Rigidity, High Radial Load Carrying Capacity |
| Lubrication: | Oil Lubrication | Oil: | Oil Groove And Oil Hole |
| Original: | LuoYang China | Payment: | T/T .L/C |

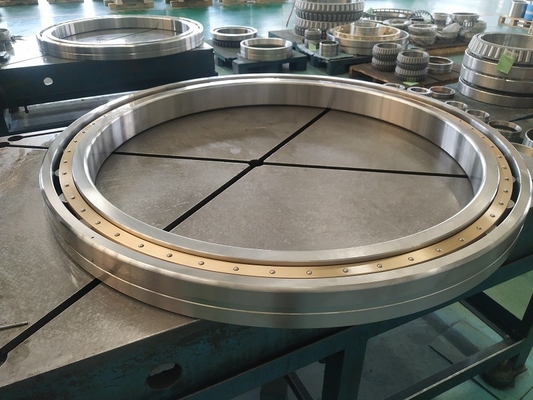

Tubular strander cylindrical roller bearing 527458P5 in stock
Special cylindrical roller bearings Z-527458.ZL are separable bearings, which are very convenient for installation and disassembly.Special bearings 527458 for tubular stranding machines running at high speeds have increased accuracy to tolerance class P6 or P5.
Bearing structure details:single row cylindrical roller bearing
Row number:one row
Bearing factory items:Z-527458.ZL
Bearing old type: 527458
The special bearing z-527458.zl used for high speed tubular strander machine
Bearing boundary metric size: standard size
Bearing outer diameter metric :standard size
Bearing inner diameter metric:standard size
Bearing height metric:standard size
Precision grade:P5 P4 Grade
Outer Ring material:GCr15SiMn code
Inner Ring material:Steel GCr15SiMn
Roller material: Steel chrome
Roller shape:cylindrical roller
Basic dynamic load rating, Radial Cr:315KN
Basic static load rating, Radial Cor:570KN
Bearing weight:21KGS
Bearing boundary inch size:standard size
Bearing outer diameter inch: standard size
Bearing inner diameter inch size:standard size
Bearing height inch:standard size
The bearing manufacture time:60 days
The bearing MOQ:10pcs
Cage material:Brass solid cage
Precision grade:P5 P6 Available
Clearance:C3 C0 available
HS code:8482500090
Payment term:T/T or L/C at sight
Shipping term By sea or by air
Quality standard:GB307 Rolling bearing technical requirement
The seaport name:Shanghai or Tianjin or qingdao seaport
Bearing brand:JHB or OEM
Lubrication:Oil or Grease
Tubular stranders machine feature:
Quality and experience to obtain unbeatable machines
High capacity machines, fast, reliable and very long-lasting. High quality bearings that allow turning at high turns. Multiple configurations to work with bobbins from Dia. 500 to 900 mm and larger specials according to customer specs for customized solutions.
With automated loading systems, greasing systems inside the tube, binding units for internal layers, back-torsion core mechanisms, etc …
Option to add a larger coil with core element in the head to avoid twisting it (BULL-HEAD)
