Precision Bearing For Tubular Stranding Machine Z-527456.ZL
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | GCr15SiMn | Cage Material: | Brass/steel |
|---|---|---|---|
| Clearance: | C1 C2 C0 C3 C4 | Precision Grade: | P5 P6 |
| Application: | Tubular Strander Machine | Feature: | High Rigidity, High Radial Load Carrying Capacity |
| Lubrication: | Oil Lubrication | Oil: | Oil Groove And Oil Hole |
| Original: | LuoYang China | Payment: | T/T .L/C |

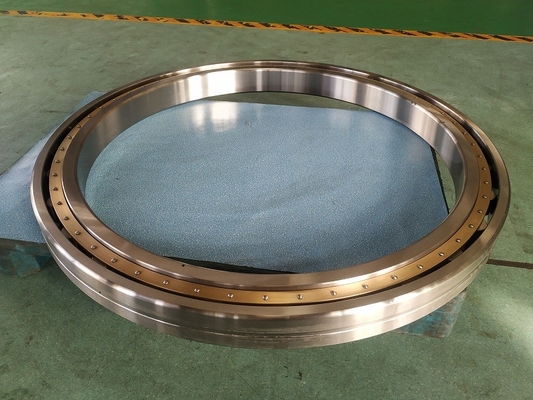

Precision bearing for Tubular stranding machine Z-527456.ZL
The bearings Z-527456.ZL are separable and are therefore easier to mount and dismount. As a result, both bearing rings can be given a tight fit. Single row cylindrical roller bearings 527456 with cage are available as non-locating, semi-locating and locating bearings. our bearing features: high speed, high accuracy, long life, low vibration and low noise.
Bearing structure:cylindrical roller bearing
Racyway number:1 row
Bearing factory items:Z-527456.ZL
Bearing old type:527456
Bearing boundary metric size: standard size
Bearing outer diameter metric :standard size
Bearing inner diameter metric:standard size
Bearing height metric:standard size
Bearing boundary inch size:standard size
Bearing outer diameter inch: normal size
Bearing inner diameter inch size:normal size
Bearing height inch:1.5”
Precision grade:P5 P6 Available
Clearance:C3 C0 available
Application:Wire cable Tubular high speed Stranding machine
Delivery time: 60 days
Feature:Will use for high speed rotating machine
Service:Bearing data and calculation for the using life
HS code:8482500090
Shipping term By sea or by air
Basic dynamic load rating, Radial Cr:220KN
Tubular stranders machine feature:
Quality and experience to obtain unbeatable machines
High capacity machines, fast, reliable and very long-lasting. High quality bearings that allow turning at high turns. Multiple configurations to work with bobbins from Dia. 500 to 900 mm and larger specials according to customer specs for customized solutions.
With automated loading systems, greasing systems inside the tube, binding units for internal layers, back-torsion core mechanisms, etc …
Option to add a larger coil with core element in the head to avoid twisting it (BULL-HEAD)
