Offer wire cable Tubular Twister Roller Bearing Z-549124.ZL price
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | GCr15SiMn | Cage Material: | Brass/steel |
|---|---|---|---|
| Clearance: | C1 C2 C0 C3 C4 | Precision Grade: | P5 P6 |
| Application: | Tubular Strander Machine | Feature: | High Rigidity, High Radial Load Carrying Capacity |
Offer Wire Cable Tubular Twister Roller Bearing Z-549124.ZL Price

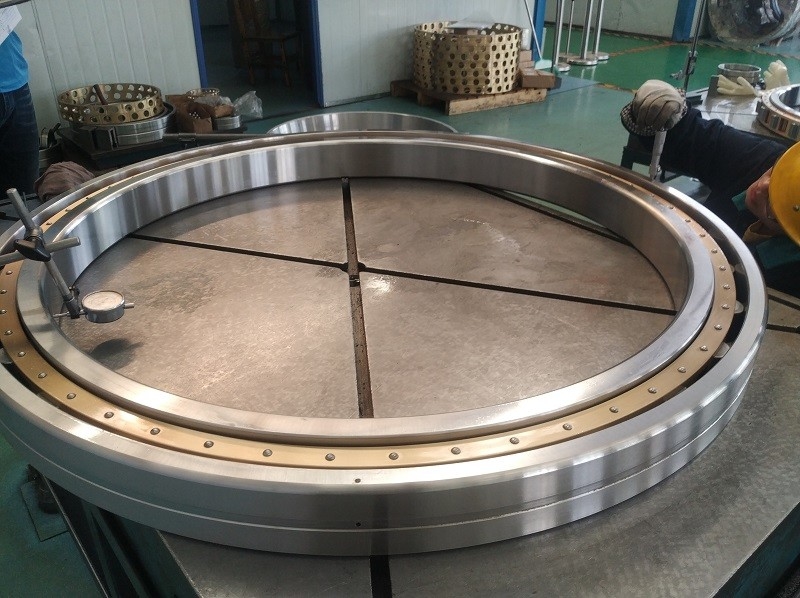

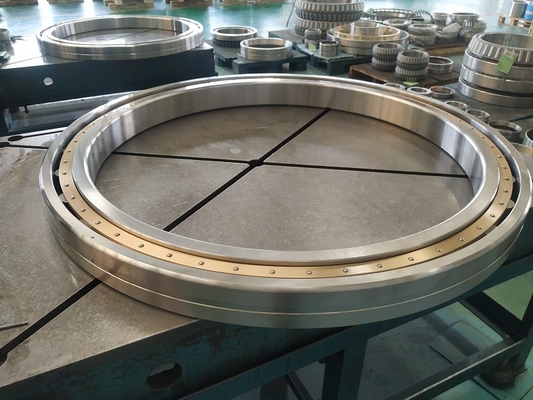

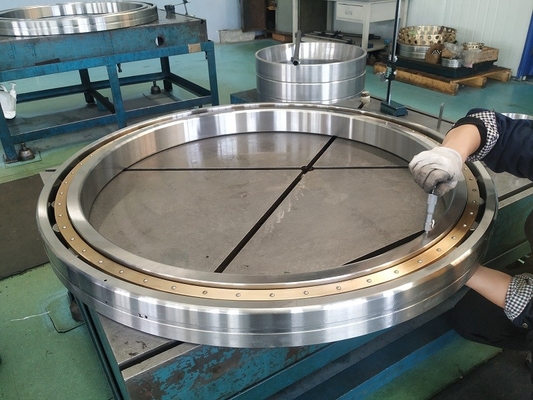

Z-549124.ZL Special roller bearings Z-549124.ZL consists of an inner and/or outer ring and a complement of controlled-contour cylindrical rollers. The robust solid brass cage is guided on the inner ring.we focus on the special roller bearing 549124 for tubular stranding equipment.The cylindrical roller bearing 549124 with cage are available as non-locating, semi-locating and locating bearings.
Factory Bearing items: Z-549124.ZL
Bearing old type: Z549124ZL
Bearing another item:549124
Bearing boundary metric size:standard size
Bearing outer diameter metric :standard size
Bearing inner diameter metric:standard size
Bearing height metric:standard size
Ring material: steel GCr15SiMn
Heat treatment:HR55-HRC62
Bearing boundary inch size:standard size
Bearing outer diameter inch: standard size
Bearing inner diameter inch size:standard size
Bearing height inch:standard size
Heat treatment process:Bainite quenching
Roller material:steel GCr15
Roller structure:Cylindrical roller with directly line
Cage material:Brass material cage
Cage structure:Solid structure
Row number: one row
Rolling: cylindrical Roller
Basic dynamic load rating, Radial Cr:1630KN
Basic static load rating, Radial Cor:2600KN
Limited speed:2600RPM
The delivery time: EX-stock,60 days manufacture time
The bearing Z-549124.ZL application: wire/cable Tubular Stranding equipment.
