Cylindrical Roller Bearing 527465 CableTubular Stranders Equipment

Cylindrical Roller Bearing 527465CableTubular Stranders Equipment

The single row cylindrical roller bearing 527465 with the dimension  structure have one outer ring and one inner ring, the inner ring with rib for hold the lubrication . Meanwhile it has one brassa and some roller combination. The bearing 527465 will use for cable wire tubular strander equipment.
The lubrication will use the oil lubrication.It has high speed for 1+6+12 bobbins tubular stranders machine.

Double-row cylindrical roller bearings are available in two types, NN and NNU, and two series, 30 and 49.The rollers in the NN type bearing are guided by the ribs of the inner ring. The rollers in the NNU type bearing are guided by the ribs of the outer ring.
Bearings are available with either a tapered bore type (which allows adjustment of radial internal clearance of bearing) or a standard cylindrical bore. The bearings come in two types, standard type and high-speed HS type. Standard cage is machined brass.

cylindrical roller bearing 527465 the data as following:

Cylindrical roller bearing 527465 bearing feature as following:

The cylindrical roller bearings have high rigidity, high radial load carrying capacity and, due to the cage, are suitable for higher speeds than full complement designs.

The bearings are separable and are therefore easier to mount and dismount. As a result, both bearing rings can be given a tight fit.

Single row cylindrical roller bearings with cage are available as non-locating, semi-locating and locating bearings.

Single row Cylindrical roller bearing 527465 for Tubular stranders machine equipment with the following feature.

High capacity machines, fast, reliable and very long-lasting. High quality bearings that allow turning at high turns. Multiple configurations to work with bobbins from Dia. 500 to 900 mm and larger specials according to customer specs for customized solutions.

With automated loading systems, greasing systems inside the tube, binding units for internal layers, back-torsion core mechanisms, etc …

Option to add a larger coil with core element in the head to avoid twisting it (BULL-HEAD)

Options:

Standard speeds for 630 mm bobbins: 1000 rpm for the 6 bobbins and up to 950 rpm for the 12 bobbins.

Multiple and special configurations.

BULK HEAD: for OPGW cable or steel core cable. With passage of threads by liras. Dia reels. 1000 ; 1250 ; 1600 mm.

Tandem tubes between cars.

Possibility of incorporating a loader for the whole semi-automatic machine.

Applications:

Soft, medium and high carbon steel strands and/or ropes.

Special options as grease applicators, fiber optic in steel tube elements, binding heads, etc…

OPGW type cables: Fiber optic cable core surrounded by Al wires. Core bobbins Dia.. 1250 – 1400 – 1600 mm.

Cylindrical roller bearing application as following:

Cylindrical roller bearings are used in a variety of applications. Examples include mining, petroleum production, power generation, power transmission, cement processing, aggregate crushing, and metal recycling. Some cylindrical roller bearings are used in briquetting machines, rubber mixing equipment, rolling mills, rotary dryers, or pulp and paper machinery. Others are used in construction equipment, crushers, electric motors, blowers and fans, gears and drives, plastics machinery, machine tools and traction motors and pumps.

Why choose JHB bearings
Who we are?
We JINHANG Precision bearing are a professional
Precision bearing manufacturer in the world, established in 2005, specializing in slewing bearings, slewing drives,rotary table bearing,crossed roller bearing,cylindrical roller bearing,tapered roller bearing,spherical roller bearing,thrust roller bearing thrust ball bearing,tandem bearing,pinion and other special machine parts, with design, production, sales, marketing and service all over the world. For the high precision bearing,our precision grade can reach to P5 P4 P2 class.

Our team advantage:
We have 70 employees, with 10 experienced engineers and professional technicists. The most of Engineer from LYC and ZWZ brand factory, they had owned produce and design and after sales experienced to design the bearing.We can also design the drawing according to the bearing work condition to meet the customer requirement.

Manufacturing ability:
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.
Quality control:

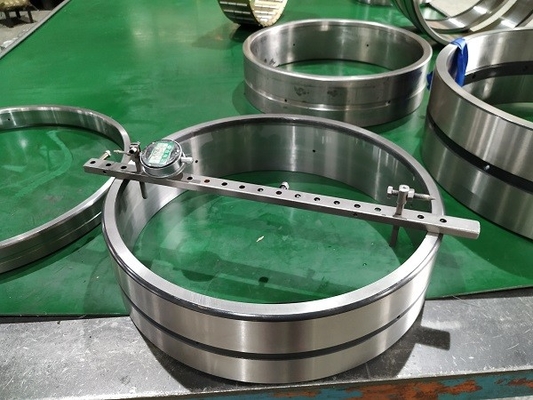

All the bearing from the forging to assembly process,It will need to inspect step.For the bearing forging we will need to test the size and hardness and surface, for the lathe process and grinding process,first it will need to check by the worker ,and then the professional inspector will checking the size and accurate,The last step the monitor will inspect the size. It can insure zero defect.
Service:
It can calculate the load curve.
Can offer assembly drawing based on the bearing working condition
Can offer pre- sale ,sale and after sale service

Our workshop :

The Tubular Strander machine as following:
