Payment & Shipping Terms:
|Material:||GCr15SiMn||Cage Material:||Steel /brass Available|
|Delivery Time:||In Stock||Clearance:||C1 C2 C0 C3 C4|

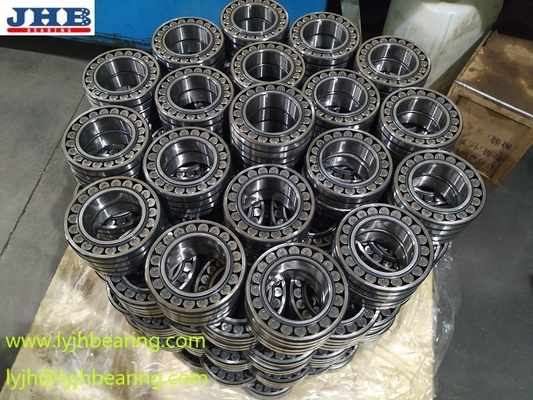

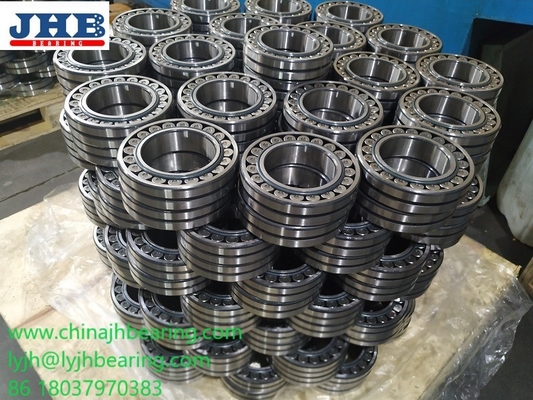

The 222,223,231,232 series spherical roller bearing used in Jaw Crusher Machinery
The Jaw Crusher mainly used the spherical roller bearing , The spherical roller bearing
such as 222,223,231,232 structure.
The bearing house is Split bearing series.such as SNV,SD.Every day will be need to lubricate with oil.
We had a customer fromUnited StatesThey used the bearing in the Jaw Crusher.
The machine used the bearing as following:
The movable jaw bearing:Spherical roller bearing:23168BK30.MB.C3 dimension: 340x500x190 mm.
The adapter sleeve type:H3168HGJ.
The Main frame bearing:23256K.MB.C3,The adapter sleeve type:H2356
If you have any question, Please don't hesitant to contact us.

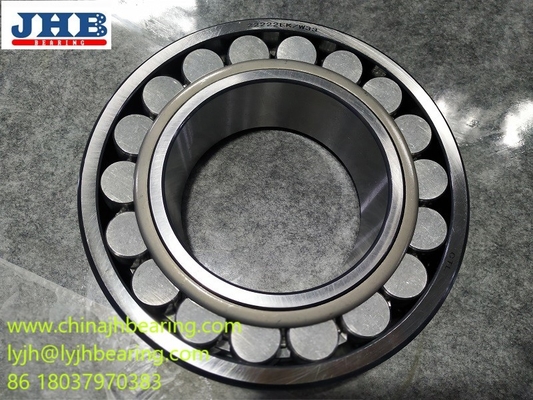

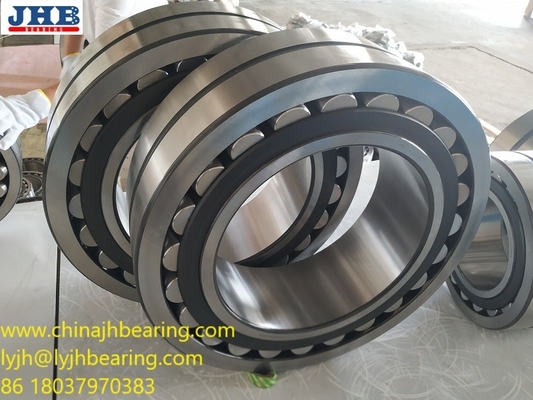

The inner ring of spherical roller bearings have two raceways, outer raceway is a part of a sphere, whose curvature center is on the axis of bearings. This type of bearings possesses self-aligning performance, allowing the misalignment of shaft, and can also be used under certain permanent misalignment.
These bearings are able to carry higher radial loads, as well as certain axial loads, but can’t be used to carry pure axial loads. The osculation between rollers and raceways is high, and friction is higher than cylindrical roller bearings. Therefore, the limiting speed is lower.
This type of bearings is especially suitable to the heavy or vibrating load applications.
The type 20000C bearings have symmetrical rollers and pressed steel cages, no rib on inner ring, rollers are longer, load carrying capacity is high, and rollers are guided by a floating guide ring.
The type 20000CC bearings are the modified type to type 20000C, the friction between rollers and raceway is decreased, load carrying capacity is enhanced.
The type 20000CA bearings adopt symmetrical spherical rollers and machined solid cages, they have floating guide ring and integral ribs on inner rings.
The type 20000TN1 bearings use symmetrical rollers and nylon molded cages, no integral ribs and floating guide ring on inner ring, the cages are guided by rollers.
The type 20000CC, 20000CA and 20000TN1 bearings are developed in recent years and their internal design are optimized, should give priority to be used.
Spherical roller bearings are primarily used in the applications,
such as rolling mills, paper-making, power transmitting equipments and ship mechanics, gearbox, vibratory,Metallurgical
• Mining and construction
• Fluid machinery
• Material handling
• Industrial gearboxes
• Textile industry
|Principal dimensions||Basic load ratings||Speed ratings|
|dynamic||static||Reference speed||Limiting speed||weight||Bearing with cylindrical bore||Bearing with tapered bore|
|50||90||23||104||108||7 000||9 500||0,63||22210 E||22210 EK|
|50||110||27||156||166||5 600||7 500||1,35||21310 E||21310 EK|
|50||110||40||220||224||4 800||6 300||1,90||22310 E||22310 EK|
