Home ProductsTandem Extruder Bearing

Feed Plastic Extruder Machine Use T5AR2385 M5CT2385 23*85*162mm bearing shaft 23mm

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

Feed Plastic Extruder Machine Use T5AR2385 M5CT2385 23*85*162mm bearing shaft 23mm

China Feed Plastic Extruder Machine Use  T5AR2385 M5CT2385 23*85*162mm bearing shaft 23mm supplier
Feed Plastic Extruder Machine Use  T5AR2385 M5CT2385 23*85*162mm bearing shaft 23mm supplier Feed Plastic Extruder Machine Use  T5AR2385 M5CT2385 23*85*162mm bearing shaft 23mm supplier Feed Plastic Extruder Machine Use  T5AR2385 M5CT2385 23*85*162mm bearing shaft 23mm supplier Feed Plastic Extruder Machine Use  T5AR2385 M5CT2385 23*85*162mm bearing shaft 23mm supplier

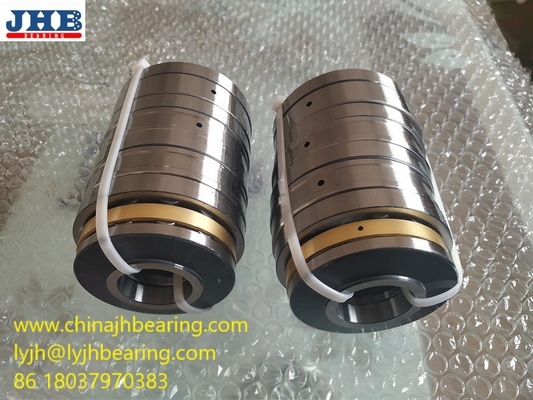

Large Image :  Feed Plastic Extruder Machine Use T5AR2385 M5CT2385 23*85*162mm bearing shaft 23mm

Product Details:

Place of Origin: Made in China
Brand Name: JHB or OEM
Certification: Quality certificate
Model Number: T5AR2385 M5CT2385

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS
Price: Negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: 25 days after getting the order
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Material: GCr15SiMn/GCr15 Package: Wooden Case
Cage: Steel Or Brass Inner Dia: 23mm
Outer Dia: 85mm Height: 162mm

Feed Plastic Extruder Machine Use T5AR2385 M5CT2385 23*85*162mm Bearing China Factory





Tandem bearings T5AR2385 M5CT2385 consist of several axial cylindrical roller bearings arranged in line, A system of rings and washers matched to each other ensures that all stages of the tandem bearing are subjected to uniform load at all times irrespective of the ratio C/F. The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. The thrust cylindrical roller bearing T5AR2385 M5CT2385 23*85*162mm  the inner diameter:23 mm, the outer diameter:85mm, the total height:162mm

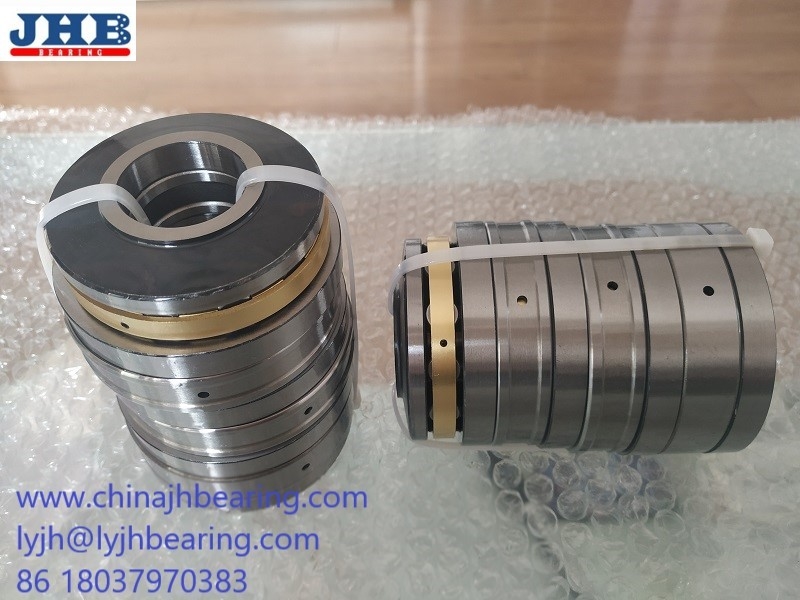

                                   Feed Plastic Extruder Machine Use  T5AR2385 M5CT2385 23*85*162mm bearing shaft 23mm



Five row tandem roller bearing catalogue as following:



Tandem bearing old code Tandem bearing new code Basic size unit(mm)

Basic load rating

Unit (KN)

weight material
Inner dia Outer dia Height Cr Cor kg
T5AR2385 M5CT2385 23 85 162 624 2651 5.2 Steel chrome

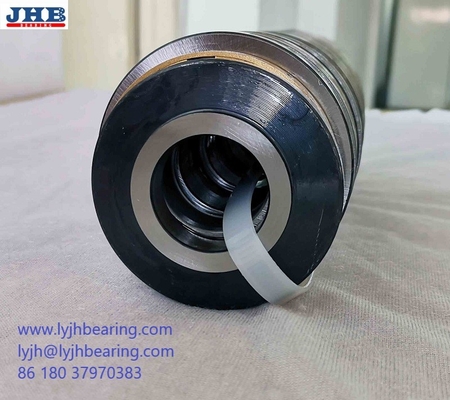

 Feed Plastic Extruder Machine Use  T5AR2385 M5CT2385 23*85*162mm bearing shaft 23mm

  Feed Plastic Extruder Machine Use  T5AR2385 M5CT2385 23*85*162mm bearing shaft 23mm

Feed Plastic Extruder Machine Use  T5AR2385 M5CT2385 23*85*162mm bearing shaft 23mm



Forging process:
The blanks of bearing rings are mainly made of rods and tubes, while the forging process is only applicable to rods. However, forgings are the most used blank materials in bearing manufacturing, and are suitable for large and medium-sized bearings. Forging can be divided into hot forging, cold forging and warm forging. Hot forging refers to processing above the re-crystallization temperature of the billet metal, warm forging is forging at a temperature not exceeding the re-crystallization temperature, and cold forging refers to forging at normal temperature.

The purpose of ferrule forging: 1. Through forging, obtain a blank with a size similar to the product, improve the utilization of metal materials, reduce the amount of machining, and reduce costs. 2. Forging can eliminate the internal defects of the metal, improve the structure, and thus increase the service life of the bearing.





Tandem Thrust Bearings Type:
1.Multi-stage cylindrical roller thrust bearing (basic type) adopts elastic spacer to connect the shaft washer,housing washer, roller and cage assembly.The components of this Thrust Bearings are demountable. The user should assemble or Dismount the bearing meticulously according to numeral order we provide.
2. Multi-stage cylindrical roller thrust bearing (shaft type) is made by penetrating an axis through the inner bore of basic type multi-stage cylindrical roller thrust bearing and fastening the bearing to the axis by locking collar.The components of this type of cylindrical roller thrust bearing are inseparable.In 2000, our multi-stage cylindrical roller thrust bearing (shaft type) obtained the national patent and was awarded "high-tech product" by Department of Science and Technology in Jiangsu Province.
3. Multi-stage cylindrical roller thrust bearing (sleeve type) locking collar is made by covering a sleeve to the external of the basic type multi-stage cylindrical roller thrust bearing.It is also inseparable,and is assembled and disassembled as a whole.
Tandem Thrust Bearing Application:
Rubber industry parallel twin-screw extruder,Deep drilling oil rig,Pipelay pulling machine,Screw press oil extraction machine





Feed Plastic Extruder Machine Use  T5AR2385 M5CT2385 23*85*162mm bearing shaft 23mm



Feed Plastic Extruder Machine Use  T5AR2385 M5CT2385 23*85*162mm bearing shaft 23mm





Our team advantage:
We have 70 employees, with 10 experienced engineers and professional technicists. The most of Engineer from LYC and ZWZ brand factory, they had owned produce and design and after sales experienced to design the bearing.We can also design the drawing according to the bearing work condition to meet the customer requirement.

Manufacturing ability:
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.
Quality control:
All the bearing from the forging to assembly process,It will need to inspect step.For the bearing forging we will need to test the size and hardness and surface, for the lathe process and grinding process,first it will need to check by the worker ,and then the professional inspector will checking the size and accurate,The last step the monitor will inspect the size. It can insure zero defect.
Service:
It can calculate the load curve.
Can offer assembly drawing based on the bearing working condition
Can offer pre- sale ,sale and after sale service.
