Payment & Shipping Terms:
|Material:||Chrome Steel,||Clearance:||C0, C2, C3, C1, C4, C5, C6|
|Transport Package:||Single Box Packing+Cartons+Pallets||HS Code:||84823000|
|Cage Type:||Cc,Ca,MB,||Application:||Continuous Casting Machine|

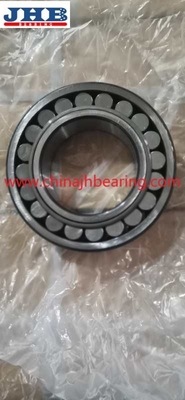

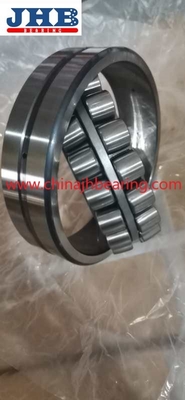

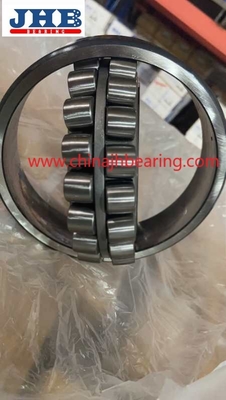

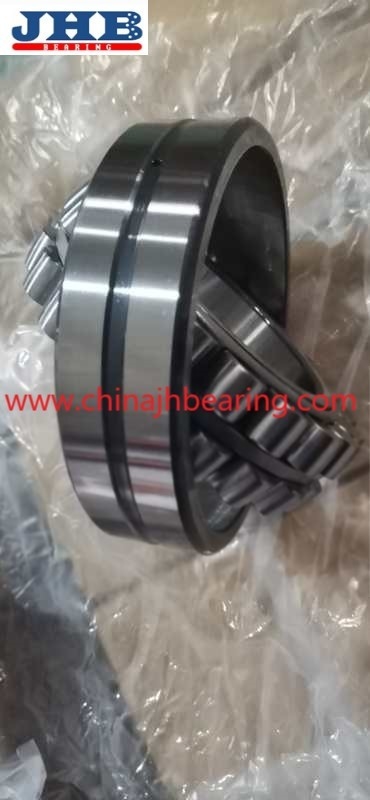

22218EKW33 Spherical roller bearing 90X160X40mm for Continuous casting machine in stocks
22218EKW3 spherical roller bearings have a very high load carrying capacity in the radial and axial directions. Bearing applications become increasingly cost effective due to long service life compact arrangements.
|Product name||Spherical roller bearing|
|Cage material||Brass/steel material|
|Packing||Strong wooden case|
|Delivery Time||In stock|
|Clearance||C3, C0 C1 C2 available|
|Oil groove||Yes with3 oil hole|
The inner ring of spherical roller bearings have two raceways, outer raceway is a part of a sphere, whose curvature center is on the axis of bearings. This type of bearings possesses self-aligning performance, allowing the misalignment of shaft, and can also be used under certain permanent misalignment.
These bearings are able to carry higher radial loads, as well as certain axial loads, but can’t be used to carry pure axial loads. The osculation between rollers and raceways is high, and friction is higher than cylindrical roller bearings. Therefore, the limiting speed is lower.
This type of bearings is especially suitable to the heavy or vibrating load applications.
The type 20000C bearings have symmetrical rollers and pressed steel cages, no rib on inner ring, rollers are longer, load carrying capacity is high, and rollers are guided by a floating guide ring.
The type 20000CC bearings are the modified type to type 20000C, the friction between rollers and raceway is decreased, load carrying capacity is enhanced.
The type 20000CA bearings adopt symmetrical spherical rollers and machined solid cages, they have floating guide ring and integral ribs on inner rings.
The type 20000TN1 bearings use symmetrical rollers and nylon molded cages, no integral ribs and floating guide ring on inner ring, the cages are guided by rollers.
The type 20000CC, 20000CA and 20000TN1 bearings are developed in recent years and their internal design are optimized, should give priority to be used.
Spherical roller bearings are primarily used in the applications,
such as rolling mills, paper-making, power transmitting equipments and ship mechanics, gearbox, vibratory,Metallurgical
• Mining and construction
• Fluid machinery
• Material handling
• Industrial gearboxes
• Textile industry
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.
All the bearing from the forging to assembly process,It will need to inspect step.For the bearing forging we will need to test the size and hardness and surface, for the lathe process and grinding process,first it will need to check by the worker ,and then the professional inspector will checking the size and accurate,The last step the monitor will inspect the size. It can insure zero defect.
It can calculate the load curve.
Can offer assembly drawing based on the bearing working condition
Can offer pre- sale ,sale and after sale service
