SX011818 Crossed roller bearing 90x150x13mm for robot machine use,in stock

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

SX011818 Crossed roller bearing 90x150x13mm for robot machine use,in stock

China SX011818 Crossed roller bearing 90x150x13mm for robot machine use,in stock supplier
SX011818 Crossed roller bearing 90x150x13mm for robot machine use,in stock supplier SX011818 Crossed roller bearing 90x150x13mm for robot machine use,in stock supplier SX011818 Crossed roller bearing 90x150x13mm for robot machine use,in stock supplier SX011818 Crossed roller bearing 90x150x13mm for robot machine use,in stock supplier

Large Image :  SX011818 Crossed roller bearing 90x150x13mm for robot machine use,in stock

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: Quality certificate
Model Number: SX011818

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS
Price: USD100
Packaging Details: strong export wooden case
Delivery Time: 25 days
Payment Terms: Western Union, T/T, L/C, MoneyGram
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Material: GCr15 Precision: P0
Rolling: Roller Pinion Lubrication: Grease
Quality Period: 5 Year Package: Plastic Bag + Color Box + Cartocarton) + Plywood

SX011818 Crossed roller bearing 90x150x13mm for robot machine use,in stock





SX011818 Bearing feature:

SX011818 belong to Crossed roller bearing SX series. The outer ring is separable and connected with three stating rings. While the inner ring is integrated with the main body.This model is used in locations where the rotation accuracy of the outer ring is required.



SX011818 bearing specification:

name Crossed roller bearing SX011818
Boundary dimension: 90x150x13mm
Outer dia: 150mm
Inner dia: 90mm
width 13mm
Radial basic loading Cr:18KN
Radial basic loading C0:37KN
Weight 0.4KGS
Outer ring material Steel GCr15
Inner ring material Steel GCr15
Raceway structure Crossed shape
Package

Vacuum

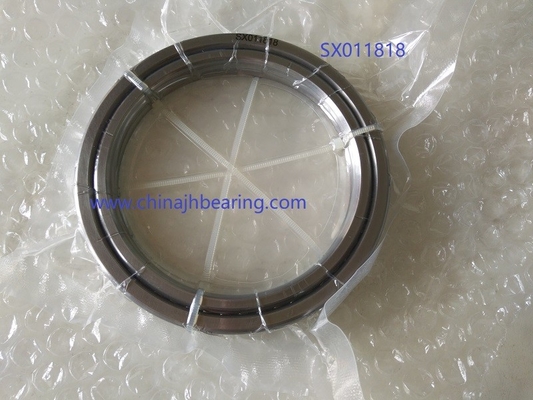

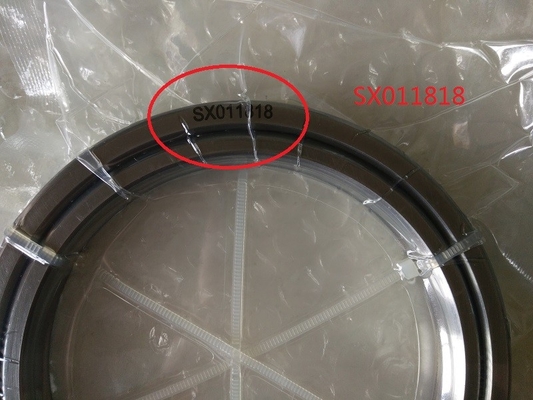

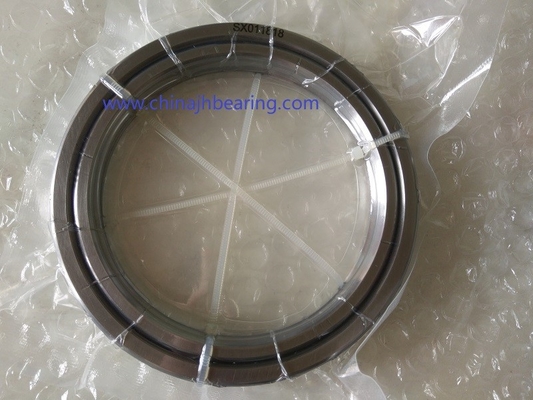

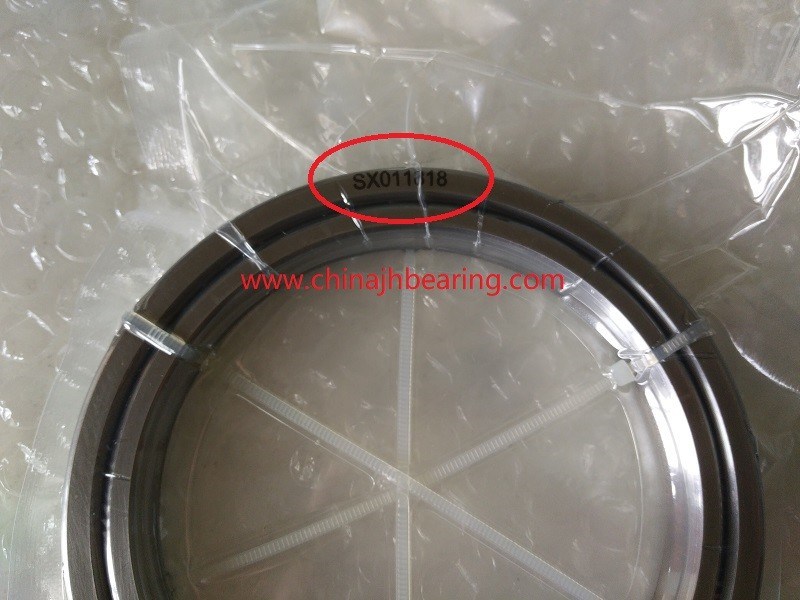

SX011818 Bearing actual picture, Please reference:

SX011818 Crossed roller bearing 90x150x13mm for robot machine use,in stock

SX011818 Crossed roller bearing 90x150x13mm for robot machine use,in stock



SX011818 Bearing application:



Industrial robots,swiveling tables of machining centers,Precision rotary tables,medical equipment,measuring instruments and IC manufacturing machines.

the index table swiveling unit of machine tools, robots, hydraulic manipulators, car assembly line, rotary table, etc.



SX011818 crossed roller bearing features as following:

Two Rows of rings Rollers in the Space of One

Compactness / Small cross section

Reduced Cost

Design configuration gives Wide Effective Spread

Line Contact on Roller and Raceway (Precision class)

Maximum Accuracy of Rotation

High Stability

Greater Tilting Stiffness



Crossed roller bearing Installation & Cautions

1.Inspect the parts before installing:Clean bearing bracket,main axle or other parts to remove dirt or grease.

2.Place the bearing into the bearing bracket and main axle:To match the design clearance ,keep the bearing horizontal and insert the bearing into the bearing bracket or axle.If it is hard to install,use a rubber hammer to slightly hit every part of the bearing,so that the bearing can be attention to the hitting force is too large.Afterwards,the matching status of bearing and basic face can be examined by checking the noise.For a interference fit,use heating or cooling to expand or shrink the parts for ease of installation. Be sure the bearing temperature does not exceed 80℃ . If the split inner or outer ring is acentric, please loosen the blots slightly and rotate the monolithic ring to adjust the concentricity of split ring, so that the bearing can be fit in the bracket.
