RA10008UUC0 Crossed roller bearing thin section 100x116x8mm robots machine use

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

RA10008UUC0 Crossed roller bearing thin section 100x116x8mm robots machine use

China RA10008UUC0 Crossed roller bearing thin section 100x116x8mm robots machine use supplier
RA10008UUC0 Crossed roller bearing thin section 100x116x8mm robots machine use supplier RA10008UUC0 Crossed roller bearing thin section 100x116x8mm robots machine use supplier RA10008UUC0 Crossed roller bearing thin section 100x116x8mm robots machine use supplier RA10008UUC0 Crossed roller bearing thin section 100x116x8mm robots machine use supplier

Large Image :  RA10008UUC0 Crossed roller bearing thin section 100x116x8mm robots machine use

Product Details:

Place of Origin: China
Brand Name: JHB or OEM
Certification: ISO9001:2008
Model Number: RA10008UUC0

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-1000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: 25-35 days
Payment Terms: T/T,L/C, Western Union
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Delivery Time: In Stocks Precison Grade: P0
Application: Medical Equipment Package: Strong Carton Package
Quality Period: 1 Year Shipping Term: By Fedex

RA10008UUC0 Crossed roller bearing thin section 100x116x8mm price and stock





Product details
RA 10008UUCC0 Crossed roller bearing is a light and compact type with the thinnest possible inner and inner rings.It is optimal for location where weight reduction and downsizing are required,such as the hand swiveling unit of robots and main plutocrats.
Crossed roller bearing including RA ,RB RE,RU,XSU,XU,SX,CRB,CRBC,CRBH structure



RA 10008UUCC0 bearing size specification:



Bearing type RA 10008UUCC0
Size 100x116x8mm
Outer Dia: 116mm
Inner Dia: 100mm
Height 8mm
Shaft dia: 100mm
Inner outer ring material GCr15 steel
Rolling Roller
Delivery time In stocks



RA10008UUC0 Crossed roller bearing thin section 100x116x8mm robots machine use

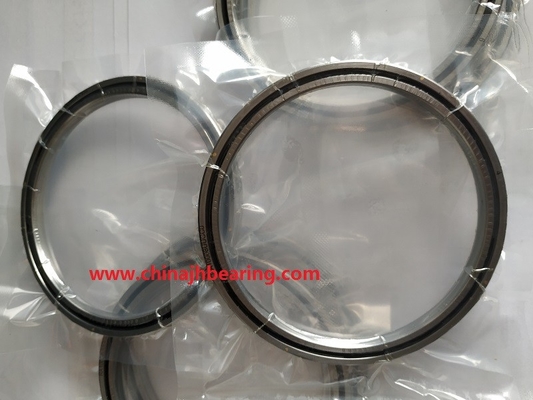

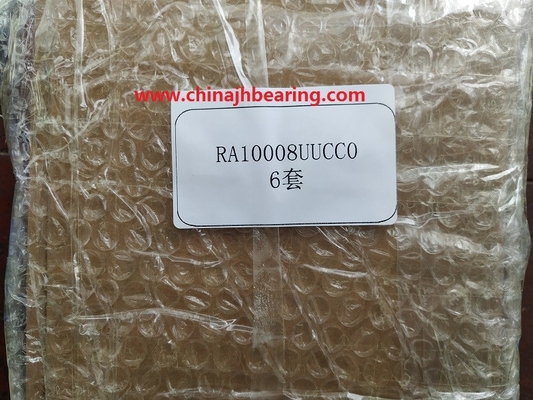

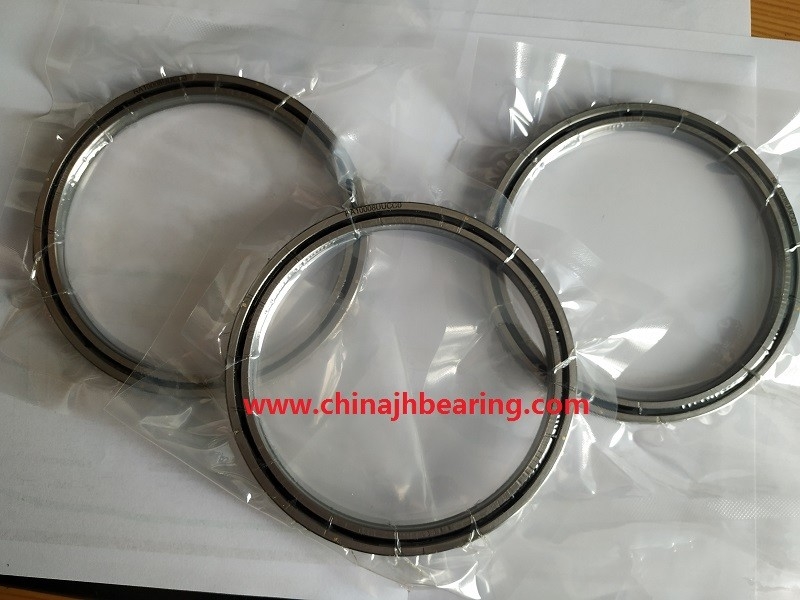

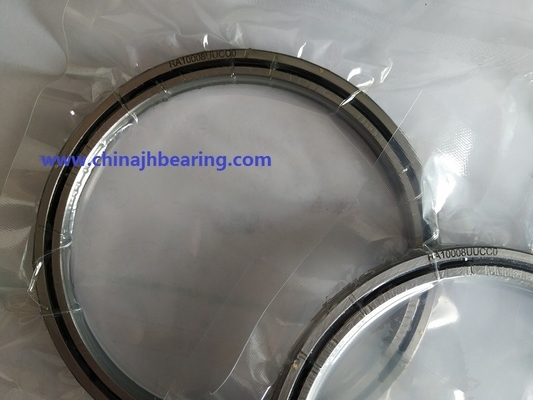

RA 10008UUCC0 bearing actual picture as following:



RA10008UUC0 Crossed roller bearing thin section 100x116x8mm robots machine use







RA 10008UUCC0 bearing Installation Procedure:


(1) When attaching the presser flange, attach it to the integrated rotation ring (i.e., inner ring of models RB and RA, or outer ring of model RE) first.
(2) Place the presser flange onto the Cross-Roller Ring. Rock the flange several times to match the bolt holes.
(3) Insert the presser bolts into the holes. Manually turn the bolts and make sure they do not display skewing caused by misalignment of the holes.
(4) Tighten the presser bolts in three to four steps from light to full tightening by repeatedly securing the bolts in diagonal order.
When tightening the separable inner or outer ring, slightly turning the integral outer or inner ring will correct the dislocation between the ring and the body.

RA10008UUC0 Crossed roller bearing thin section 100x116x8mm robots machine use



RA 10008UUCC0 bearing application:
applications such as joints and swiveling units of industrial robots,
swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines.


RA 10008UUCC0 bearing feature:
High Rotation Accuracy
Easy Handling
Skewing Prevention
