|Bearing Material:||42CrMo 50Mn||Structure:||Four Point Contact|
|Teeth:||External Teeth||Seal:||Double Seal|
|Ball Brand:||LYC Brand||Lubrication:||Grease Lubrication|

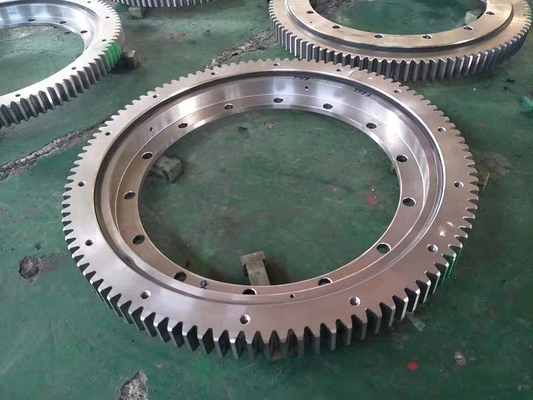

Slewing ball bearing E.1200.20.00.C 1198.4x984x56mm for mobile crane machine
We had offered the bearing E.1200.20.00.C to our mobile crane,the structure is four point contact ball structure, the rolling elements is ball.
Now We will introduce Slewing bearing E.1200.20.00.C specification as follows:
|Slewing bearing type||E.1200.20.00.C|
|Outer dia:||1198.4 mm|
|Outer ring hole qty||22 pcs|
|Inner ring hole qty||22 pcs|
|Outer ring and inner ring material||50Mn 42CrMo|
|Ball bearing||LYC ball Brand ,GCr15SiMn|
|teeth||In outer ring|
|Pitch diameter||1184 mm|
E.1200.20.00.C slewing ring application:
Power Plants, Cement and Mining industry. Making use of top-grade components,
Stacker Handling Equipment,Reclaimer Machine,Grab.
Loader,Dragline,slewing tower crane,bottom,mobile crane,schip crane,slewing pillar crane,fire ladder,clarifier,frame machinery,concrete pump

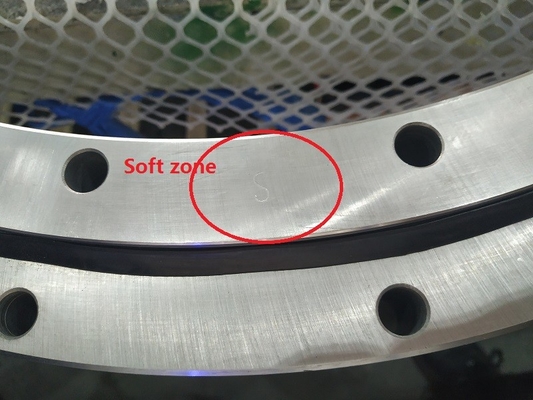

E.1200.20.00.C slewing ring plug position and soft zone as following:
E.1200.20.00.C slewing bearing load information:can support axial ,radial forces and tilting moments.
E.1200.20.00.C Slewing bearing selection:
JinHang Precision slewing bearing are allocated critical load curves for their static load capacity.when defining the required bearing load capacity, the determined loads must be multiplied by the “load factors” according to the work condition.
E.1200.20.00.C slewing bearing transport and storage:
Slewing bearing required careful handing
Slewing bearing should always be transported and stored in horizontal position and be stored in dry roofed areas.
USE eyebolts for horizontal handling,Impact,particularly in radical direction,must be avoided.
The surface of slewing bearing should be applied with anti-corrosion oil,and the anti-corrosion period is 6 months,longer storage(as backup,for example) periods will require special perservation.
