RKS.060.25.1204 four point contact slewing bearing 1289x1119x68 mm belongs to medium size without a gear
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | 50Mn | Seal: | Double Seal |
|---|---|---|---|
| Lubrication: | Grease | Package: | Strong Wooden Case |

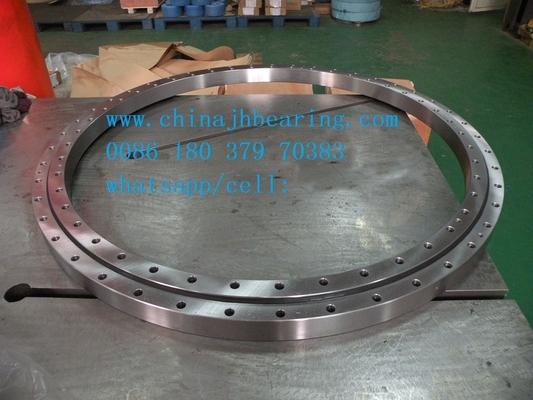

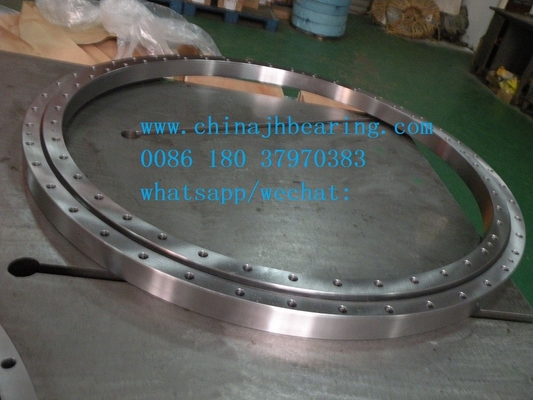

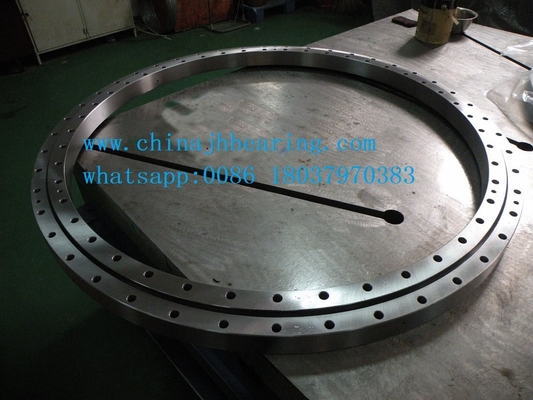

RKS.060.25.1204 four point contact slewing bearing belongs to medium size without a gear
RKS.060.25.1204 four point contact ball slewing bearing belongs to medium size without a gear belongs to ball slewing bearing series.We had offered the slewing bearing RKS.060.25.1204 to Turkey customer. It has have a strong,full-size gearless ring. Depending on their size, they are available with two different fixed cross sections within the series. The inner and outer rings have a standardized number of equally spaced holes for attachment bolts, to simplify installation.
RKS.060.25.1204 four point contact ball slewing bearing boundary size as following:
| Slewing bearing type | Boundary size | Outer dia(mm) | Inner dia(mm) | Height(mm) | Weight(KGS) |
| RKS.060.25.1204 | 1289x1119x68 mm | 1289 | 1119 | 68 | 120 |
RKS.060.25.1204 slewing bearing package as follow:
Inside package: plastic film + kraft paper + blue tape;
Outside package: standard export free-fumigation wooden case.
RKS.060.25.1204 slewing bearing technology details as follows:
Material:42CrMo 50Mn
Heat treatment: Raceway surface queching hardness: HRC55-60,the depth of the harden more than 3mm

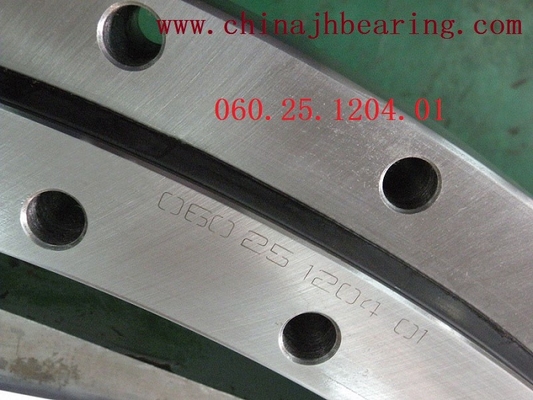

The bearing face will marked the slewing bearing type and number
Slewing bearing RKS.060.25.1204 application:
Vehicle construction,general mechanical engineering
If you need choose the right bearing type, Please offer the following details:
A.applied loads
B.Collective loads with respective time percentages
C.Speed or number of movements and angle per time unit together with the relating collective loads
D.Circumferential forces to be transmitted by the gearing
E.Bearing diameter
F.Other operating conditions
For RKS.060.25.1204 slewing bearing delivery time,If you need short lead time, Please contact us.We will discuss with the produce department. Our contact information as follows:
