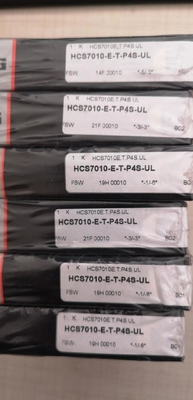

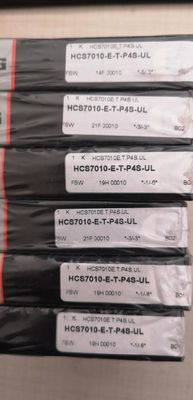

order FAG HCS7010-E-T-P4S-UL machine tool main spindle bearing in stocks,offer sample available
HCS7010-E-T-P4S-UL FAG spindle bearing used in machine tool main spindle center. It made in Germany. The structure belongs to four point contact ball bearing that consist of inner ring outer ring cage and ball element.
|Basic Dimensions(mm)||Bearing Designations||Precision Rating||basic load rating(KN)||
HCS7010-E-T-P4S-UL Spindle bearing suffix:
HCS:Bearing with small balls Ceramic balls
Contact angle: E:25 degree
T: Cage material Laminated fabric, guidance on outer ring
AccuracyP4S :FAG standard Better than P4 to DIN 620
Bearing arrangement:Individual bearing, suitable for any arrangement
Preload: L Light
HCS7010-E-T-P4S-UL Spindle bearing application:
Machining centre,Milling spindle for high loads ,Turning spindle,Milling spindle for very high speeds,Grinding spindle,High frequency motor spindle,High frequency motor spindle.
Bearing selection according to ball size and material Spindle bearings having a designation beginning with B or RS are filled with large balls while the other types have small balls.
Bearings with large balls have a higher load carrying capacity and are therefore more suitable for high loads than bearings with small balls. The latter should be selected in preference for high speeds.
Ceramic Bearings with ceramic rolling elements have additional speed advantages.

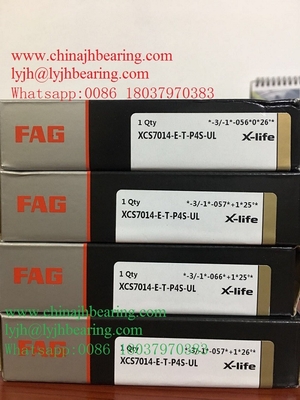

X-life ultra bearings X-life ultra bearings have rings made from Cronidur 30 and balls made from ceramic. Bearings of this design with small balls have a designation starting with XC, bearings with large balls start with XCB.
Specifications for bearing selection Bearing selection is aided by a comparison of the specifications and performance data of spindle bearings, see table.
