Home ProductsMachine tool main spindle bearing

XCS7014-E-T-P4S-UL 70x110x20 mm FAG Spindle bearings used for machine tool main spindle center

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

XCS7014-E-T-P4S-UL 70x110x20 mm FAG Spindle bearings used for machine tool main spindle center

China XCS7014-E-T-P4S-UL  70x110x20 mm FAG Spindle bearings used for machine tool main spindle center supplier
XCS7014-E-T-P4S-UL  70x110x20 mm FAG Spindle bearings used for machine tool main spindle center supplier XCS7014-E-T-P4S-UL  70x110x20 mm FAG Spindle bearings used for machine tool main spindle center supplier XCS7014-E-T-P4S-UL  70x110x20 mm FAG Spindle bearings used for machine tool main spindle center supplier XCS7014-E-T-P4S-UL  70x110x20 mm FAG Spindle bearings used for machine tool main spindle center supplier

Large Image :  XCS7014-E-T-P4S-UL 70x110x20 mm FAG Spindle bearings used for machine tool main spindle center

Product Details:

Place of Origin: Germany
Brand Name: FAG
Certification: quality certificate
Model Number: XCS7014-E-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD100
Packaging Details: standard strong carton
Delivery Time: 2 days
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Sample: Sample Available Delivery Time: In Stocks
Package: Standard Carton

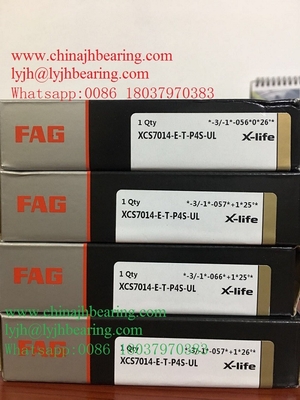

XCS7014-E-T-P4S-UL 70x110x20 mm FAG Spindle bearings in stocks



XCS7014-E-T-P4S-UL 70x110x20 mm FAG Spindle bearings are super precision machine elements that react with high sensitivity to harmful influences from the environment.We JinHang Precision bearing can offer FAG original made in Germany.



Basic Dimensions(mm) Bearing Designations Precision Rating basic load rating(KN)

Limiting Speed

(r/min)

Weight

(KGS)

d D B Cr Cor Grease oil
70 110 20 XCS7014-E-T-P4S-UL P4 27 13.2 24000 36000 0.35




XCS:Cronidur bearing with small ceramic balls sealed

Dimension series: 719 Light series, 70 Medium series,72 Heavy series

FAG XCS7014-C-T-P4S-UL bearing Machine tool main spindle bearing

Preload:

L:Light, M: Moderate, H:Heavy.

Bearing arrangement:

U: Individual bearing, suitable for any arrangement,

DU :Duplex set, universal bearings

TU:Triplex set,universal bearing

QY:Quadruplex set,universal bearing

PU:Quintuplex set,universal bearing

P4S:FAG Standard better than P4 to DIN620

T: Laminated fabric guidance on outer ring

2RSD Sealed on both sides and greased

CDLR:Direct lubrication 15°

DDLR: annular grooves 20°

EDLR: With O rings 25°

C:15° D 20° E 25°



XCS7014-E-T-P4S-UL  70x110x20 mm FAG Spindle bearings used for machine tool main spindle center

XCS7014-E-T-P4S-UL FAG spindle bearing belong s to life ultra bearings are suitable for very high speeds and have very high load carrying capacity. These hybrid bearings have balls made from ceramic (Si3N4) and bearing rings made from Cronidur 30, a highly nitrided, corrosion-resistant steel,

The contact angle indicates the axial load carrying capacity of the bearing. As the contact angle increases, so does the axial load carrying capacity.
FAG spindle bearings are available with the contact angle:
■  = 15° (suffix C)
■  = 20° (suffix D)
■  = 25° (suffix E)





We JinHang Precision bearing offer high precision bearing including spindle bearing,rotary table bearing,crossed roller bearing,cylindrical roller bearing tapered roller bearing thin section bearing slewing bearing.Also if customer need FAG NSK NTN SKF bearing we can also offer to you.

The shipping term: FedEx,TNT,DHL,UPS

The shipping time: 5 days

The delivery time : in stocks

Package: standard strong carton or wooden case

Sample:offer sample available
