Home ProductsMachine tool main spindle bearing

65BNR10ETYNDBBELP4 NSK spindle bearing used for machine tool main spindle center.

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

65BNR10ETYNDBBELP4 NSK spindle bearing used for machine tool main spindle center.

China 65BNR10ETYNDBBELP4 NSK spindle bearing used for machine tool main spindle center. supplier
65BNR10ETYNDBBELP4 NSK spindle bearing used for machine tool main spindle center. supplier 65BNR10ETYNDBBELP4 NSK spindle bearing used for machine tool main spindle center. supplier 65BNR10ETYNDBBELP4 NSK spindle bearing used for machine tool main spindle center. supplier 65BNR10ETYNDBBELP4 NSK spindle bearing used for machine tool main spindle center. supplier

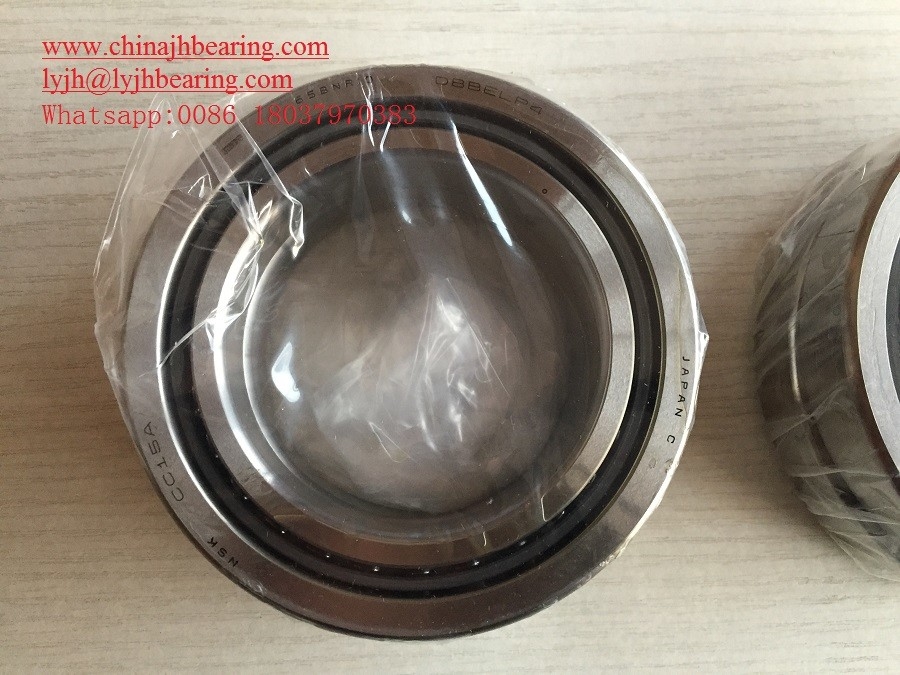

Large Image :  65BNR10ETYNDBBELP4 NSK spindle bearing used for machine tool main spindle center.

Product Details:

Place of Origin: Made in Japan
Brand Name: NSK brand
Certification: Quality certificate
Model Number: 65BNR10ETYNDBBELP4

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD300
Packaging Details: standard carton or wooden case
Delivery Time: in stocks
Payment Terms: T/T, Western Union
Supply Ability: 500PCS/MONTH
Contact Now
Detailed Product Description
Precision: P4 GRADE Stocks: In Stocks
Sample: Offer Sample Available Delivery Time: 2 Days

                                  65BNR10ETYNDBBELP4 NSK spindle bearing used for machine tool main spindle center.



It  including outer ring inner ring cage and ball parts that belongs to  high precision accuracy angular contact ball bearing.

Most spindle designs include an outer cap whose male register surface should lightly compress the bearing's outer ring. Suggested axial compression: 10-30μm.

•The male register's surface should be flat and parallel to the outer cap mounting flange surface that contacts the housing. This will ensure even clamping pressure against the bearing outer ring.

Excessive and/or uneven clamping pressure can result in bearing noise or loss of preload.



65BNR10ETYNDBBELP4 NSK spindle bearing specification as following:

Bearing items 65BNR10ETYNDBBELP4
Bearing size 65x100x18mm
Inner dia 65
Out dia 100
Height 18
Brand NSK Original made in Japan
Delivery time In stocks
Package NSK Standard carton package
Shipping term By TNT Fedex DHL UPS
Payment T/T Westion union





65BNR10ETYNDBBELP4 machine tool spindle bearing specification:

BNR:18 degree contact robust series

10 dimension series ISO10 Size

E:steel ball

TYN:Polyamide cage

DBB:Quintuplex set(Four pieces into one set),universal bearing

EL:Extra light preload symbols

P4:ISO Class 4(ABEC7)



65BNR10ETYNDBBELP4 Spindle bearing with good performance as following:



High Speed Super Precision Angular Contact bearings are now available due to NSK’s new optimized design, under the ROBUST name.

Allowing increased speeds and improved performance, these series are available in applications specific designs for machining center

applications (BNR), and high speed grinding applications (BGR) – both allowing customers to push the limits of existing speeds.

› Machining Centers › Grinding Machines › High Frequency Spindles › Lathes › Milling Machines.



65BNR10ETYNDBBELP4 NSK spindle bearing used for machine tool main spindle center.

65BNR10ETYNDBBELP4 spindle bearing Method of Cleaning,

1. Use Kerosene or light oil to clean the bearings.

2. Use separate tanks for first cleaning and final cleaning. Each tank should

be equipped with a wire rack to prevent direct contact of the bearing with any contamination that may have settled at the bottom.

3. In the first cleaning tank, avoid rotating the bearings. After cleaning the outside surfaces with a soft brush, move the bearings to the final cleaning tank.

4. In the final cleaning tank, rotate the bearing by hand very gently. Make sure that the cleaning fluid in the final cleaning tank is kept clean.

5. Remove excess cleaning fluid from the bearing after cleaning. Allow the bearing to completely dry before applying grease or oil using a lint free cloth.
