RU 124 G Crossed roller bearing equal to CRBF8022AD 80x165x22mm offer sample available

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

RU 124 G Crossed roller bearing equal to CRBF8022AD 80x165x22mm offer sample available

China RU 124 G Crossed roller bearing equal to CRBF8022AD  80x165x22mm  offer sample available supplier
RU 124 G Crossed roller bearing equal to CRBF8022AD  80x165x22mm  offer sample available supplier RU 124 G Crossed roller bearing equal to CRBF8022AD  80x165x22mm  offer sample available supplier RU 124 G Crossed roller bearing equal to CRBF8022AD  80x165x22mm  offer sample available supplier RU 124 G Crossed roller bearing equal to CRBF8022AD  80x165x22mm  offer sample available supplier

Large Image :  RU 124 G Crossed roller bearing equal to CRBF8022AD 80x165x22mm offer sample available

Product Details:

Place of Origin: China
Brand Name: JHB or OEM
Certification: Quality certificate
Model Number: RU124G

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD50
Packaging Details: strong carton
Delivery Time: 2 Days
Payment Terms: Western Union, T/T
Supply Ability: 500PCS/MONTH
Contact Now
Detailed Product Description
Delivery Time: In Stocks Material: GCr15
Package: Carton

RU 124 G Crossed roller bearing equal to CRBF8022AD 80x165x22mm offer sample available



RU124G Crossed roller bearing doesn’t required a presser flange or housing.In addition,because it has an integrated inner/outer ring structure and is equipped with washers,its performance is minimally affected by the mounting procedure,ensuring stable rotation accuracy and torque.This model can be used for both inner ring rotation and outer ring rotation.

Bearing type RU 124 G Crossed roller bearing equal to CRBF8022AD
Dimension: 80x165x22mm
Inner ring dia: 80mm
Outer ring dia: 165mm
Height: 22mm
weight 2.6 KGS
Technical details:

UU:with seal attached on both sides

U: with seal attached on one side

CC0:NEGATIVE CLEARANCE(PRELOAD)

C0:Positive clearance

C1: positive clearance(greater than C0)

Precision grade PO P5 P4 P2 Grade
R/B R:outer ring with rotation accuracy,B: inner and outer rings with rotation accuracy
G G:counterbore holes of the inner and outer rings face opposite directions,No symbol: counterbore holes of the inner and outer ring face the same direction
X Symbol for inner ring hole,No Symbol counterbore hole on the inner ring, X:tapped hole on the inner ring(through hole)
N

Option symbol,No symbol No accessory

N:with grease nipple attached

Accuracy grade P0 P5 P4 P2 USP grade
Material GCr15,GCr15SiMn
Delivery time In stock
package

Inside package: plastic film + kraft paper + blue tape;

Outside package: standard export free-fumigation wooden case



Shipping term By DHL,Fedex,TNT or by sea

We JINHANG Precision Bearing offer RU66 crossed roller bearing and service support. For the quality we can guarantee period in one year. If you have question, Please contact us.

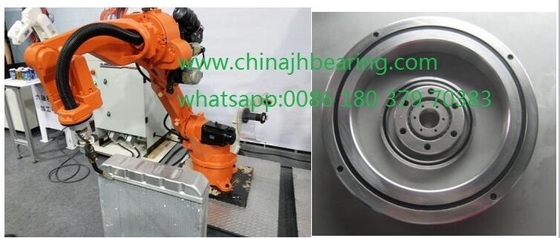

The RU85 Crossed roller bearing application:

1. heavy duty transport robot

2. Pick up robot

3. Welding robot

4. Transport robot

RU 124 G Crossed roller bearing equal to CRBF8022AD  80x165x22mm  offer sample available



RU 124G Crossed roller bearing Installation & Cautions

1.Inspect the parts before installing:Clean bearing bracket,main axle or other parts to remove dirt or grease.

2.Place the bearing into the bearing bracket and main axle:To match the design clearance ,keep the bearing horizontal and insert the bearing into the bearing bracket or axle.If it is hard to install,use a rubber hammer to slightly hit every part of the bearing,so that the bearing can be attention to the hitting force is too large.Afterwards,the matching status of bearing and basic face can be examined by checking the noise.For a interference fit,use heating or cooling to expand or shrink the parts for ease of installation. Be sure the bearing temperature does not exceed 80℃ . If the split inner or outer ring is acentric, please loosen the blots slightly and rotate the monolithic ring to adjust the concentricity of split ring, so that the bearing can be fit in the bracket.





Meanwhile we can offer :



RU42 RU 66 RU 85 RU 124 G RU 124 X RU 148G RU 148X RU 178G RU228G RU228X RU297G RU297X RU445G RU445X

RU 124 G Crossed roller bearing equal to CRBF8022AD  80x165x22mm  offer sample available
