FAG original Machine tool main Spindle bearings B7020-E-T-P4S-UL with 100x150x24mm in stocks

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

FAG original Machine tool main Spindle bearings B7020-E-T-P4S-UL with 100x150x24mm in stocks

China FAG original Machine tool main Spindle bearings B7020-E-T-P4S-UL with 100x150x24mm in stocks supplier
FAG original Machine tool main Spindle bearings B7020-E-T-P4S-UL with 100x150x24mm in stocks supplier FAG original Machine tool main Spindle bearings B7020-E-T-P4S-UL with 100x150x24mm in stocks supplier FAG original Machine tool main Spindle bearings B7020-E-T-P4S-UL with 100x150x24mm in stocks supplier FAG original Machine tool main Spindle bearings B7020-E-T-P4S-UL with 100x150x24mm in stocks supplier

Large Image :  FAG original Machine tool main Spindle bearings B7020-E-T-P4S-UL with 100x150x24mm in stocks

Product Details:

Place of Origin: Germany
Brand Name: FAG
Certification: ISO9001:2008
Model Number: B7020-E-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD300/PCS
Packaging Details: standard carton
Delivery Time: 2 days
Payment Terms: Western Union, T/T
Supply Ability: 1000PCS
Contact Now
Detailed Product Description
Material: GCr15 Delivery Time: In Stocks
Application: Machine Tool Spindle Precision Grade: P4
Ball Material: Steel Ball

FAG original Machine tool main Spindle bearings B7020-E-T-P4S-UL with 100x150x24mm in stocks





We/JinHang Precision Bearing offer FAG original Spindle bearings B7020-E-T-P4S-UL with 100x150x24mm , the structure is four point contact ball bearing with P4 accurate grade.

It is made in Germany,the delivery time is in stock.



adjusted, in pairs or sets, contact angle α = 25°, restricted tolerances

d 100 mm




D 150 mm




B 24 mm







a 41,1 mm




Da 141 mm
  Tolerance: H12



da 110 mm
  Tolerance: h12



Etk max 120,8 mm




Etk min 115,5 mm




Etk1 max 120,8 mm




Etk1 min 115,5 mm




r1 min 1,5 mm




ra max 1,5 mm




ra1 max 0,6 mm




rmin 1,5 mm




α 25 °
  Contact angle






m 1,24 kg
  ≈ Mass



Cr 79000 N
  Basic dynamic load rating, radial



C0r 55000 N
  Basic static load rating, radial



Cur 5000 N
  Fatigue limit load, radial



nG Fett 8000 1/min
  Limiting speed for grease lubrication

The limiting speeds are based on elastically preloaded single bearings.



nG Öl 13000 1/min
  Limiting speed for minimal quantity oil lubrication

The limiting speeds are based on elastically preloaded single bearings.



FV L 681 N
  Preload force



FV M 2336 N
  Preload force



FV H 4869 N
  Preload force



KaE L 1982 N
  Lift-off force



KaE M 7018 N
  Lift-off force



KaE H 15103 N
  Lift-off force



ca L 242 N/µm
  Axial rigidity



ca M 385 N/µm
  Axial rigidity



ca H 521 N/µm
  Axial rigidity

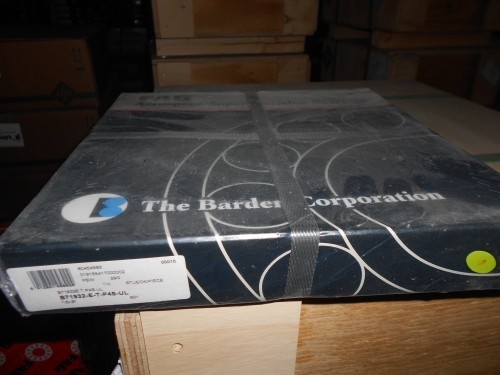

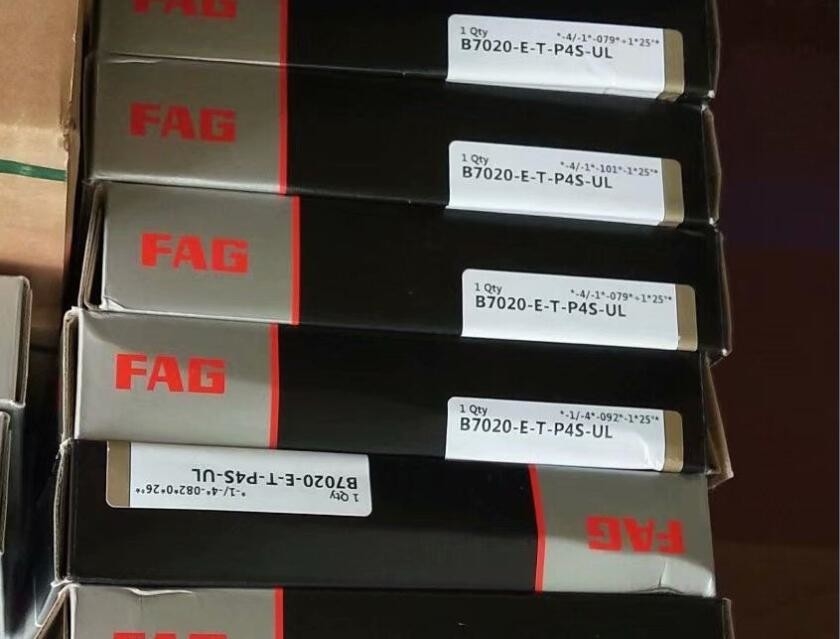

For FAG B7020-E-T-P4S-UL Actual bearing pictures:

FAG original Machine tool main Spindle bearings B7020-E-T-P4S-UL with 100x150x24mm in stocks
