RB40040 UUCC0 Crossed roller bearing used for Robot rotating parts 510x400x40 mm in stocks

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

RB40040 UUCC0 Crossed roller bearing used for Robot rotating parts 510x400x40 mm in stocks

China RB40040 UUCC0 Crossed roller bearing used for Robot rotating parts  510x400x40 mm in stocks supplier
RB40040 UUCC0 Crossed roller bearing used for Robot rotating parts  510x400x40 mm in stocks supplier RB40040 UUCC0 Crossed roller bearing used for Robot rotating parts  510x400x40 mm in stocks supplier RB40040 UUCC0 Crossed roller bearing used for Robot rotating parts  510x400x40 mm in stocks supplier RB40040 UUCC0 Crossed roller bearing used for Robot rotating parts  510x400x40 mm in stocks supplier

Large Image :  RB40040 UUCC0 Crossed roller bearing used for Robot rotating parts 510x400x40 mm in stocks

Product Details:

Place of Origin: China
Brand Name: JHB or OEM
Certification: ISO 9001
Model Number: RB40040 UUCC0

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD300
Packaging Details: strong wooden case
Delivery Time: 2 days
Payment Terms: Western Union, T/T
Supply Ability: 1000PCS
Contact Now
Detailed Product Description
Material: GCr15SiMn Accurate: P4 P2
Delivery Time: In Stocks Package: Wooden Case

RB40040 Crossed roller bearing used for Robot rotating parts 510x400x40 mm in stocks



We/JinHang Precision bearing offer crossed roller bearing RB40040UUCC0 with 400x510x40mm P5 P4 P2 accuracy rotating grade. RB40040 UUCC0 crossed roller bearing structure despite the minimum possible dimension of the inner and outer rings,its outer ring is separable while the inner ring is integrated with the main body. This model is used in locations where the rotation accuracy of the inner ring is required.



The crossed roller bearing RB40040 UUCC0 technology data as following:

Crossed roller bearing type RB40040 UUCC0
Shaft diameter 400 mm
Boundary size 510x400x40 mm
Outer ring diameter 510 mm
Inner ring diameter 400 mm
height 40 mm
Basic loading rating Radial C:241 KN Co:531 KN
Weight 23.5 KGS
UU With seal attached on both sides
CC0 Negative clearance(preload)
Accuracy grade P4 P2 P5 Grade



RB40040 UUCC0 crossed roller bearing service:

A. Offer technology service

B. Quality guarantee: one year

C. Offer assembly drawing

D. Fast delivery time in stocks



RB 40040UUCC0 crossed roller bearing package: standard strong wooden case avoid long trip damage.



RB 40040 UUCC0 precision grade as following:



According to bearing dimension tolerance and precision , code mainly are P2,P4,P5,P6 and P0,



How to choose RB40040 UUCC0 Crossed roller beairng:



  • Confirm working condition:Rotation by inner ring or outer ring and the rotation speed,Dimension range which the structure allows
  • Choose proper structure:According to required service life --Choose proper bearing dimension

Rigidity—Confirm the bearing clearance, rigidity, and install location Rotation precision—Confirm bearing precision grade .

  • Rotation torque requirement
  • Lubrication and the method

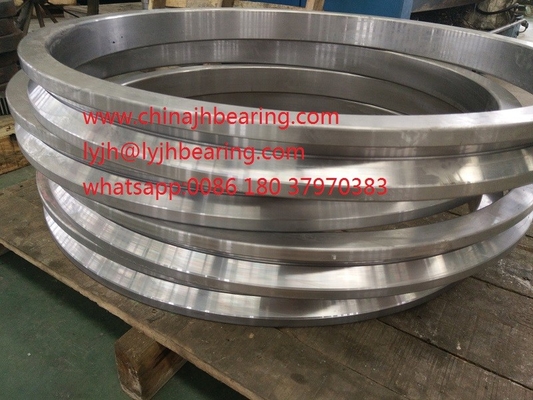

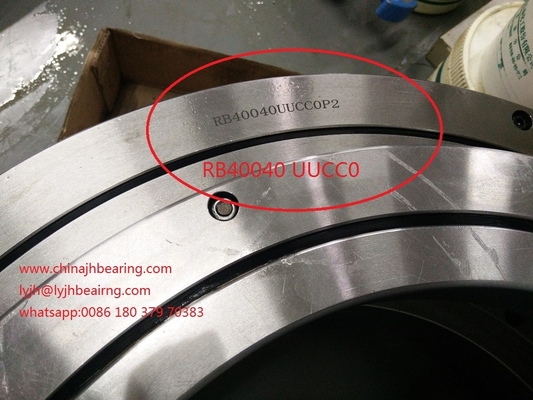

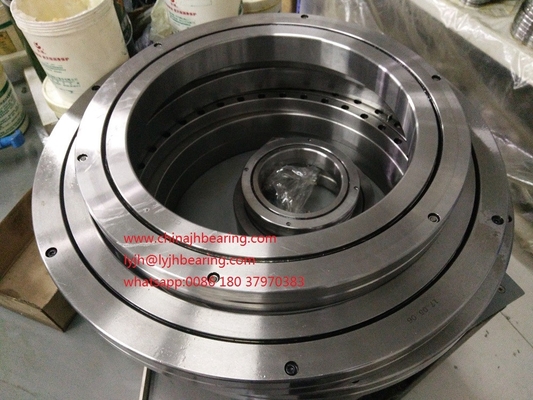

RB 40040 UUCC0  crossed roller bearing actual pictures:

RB40040 UUCC0 Crossed roller bearing used for Robot rotating parts  510x400x40 mm in stocks



Besides of crossed roller bearing RB40040UUCC0 ,We can offer other following bearing type:

RB2008 20 36 8 0.5 3.23 3.1 0.04

RB2508 25 41 8 0.5 3.63 3.83 0.05

RB3010 30 55 10 0.6 7.35 8.36 0.12

RB3510 35 60 10 0.6 7.64 9.12 0.13

RB4010 40 65 10 0.6 8.33 10.6 0.15

RB4510 45 70 10 0.6 8.62 11.3 0.17

RB5013 50 80 13 0.6 16.7 20.9 0.29

RB6013 60 90 13 0.6 18 24.3 0.33

RB7013 70 100 13 0.6 19.4 27.7 0.38

RB8016 80 120 16 0.6 30.1 42.1 0.74

RB9016 90 130 16 1 31.4 45.3 0.81

RB10016 100 140 16 1 31.7 48.6 0.83

RB10020 100 150 20 1 33.1 50.9 1.45

RB11012 110 135 12 0.6 12.5 24.1 0.4

RB11015 110 145 15 0.6 23.7 41.5 0.75

RB11020 110 160 20 1 34 54 1.56

RB12016 120 150 16 0.6 24.2 43.2 0.72

RB12025 120 180 25 1.5 66.9 100 2.62

RB13015 130 160 15 0.6 25 46.7 0.72

RB13025 130 190 25 1.5 69.5 107 2.82

RB14016 140 175 16 1 25.9 50.1 1

RB14025 140 200 25 1.5 74.8 121 2.96

RB15013 150 180 13 0.6 27 53.5 0.68

RB15025 150 210 25 1.5 76.8 128 3.16

RB15030 150 230 30 1.5 100 156 5.3

RB16025 160 220 25 1.5 81.7 135 3.14

RB17020 170 220 20 1.5 29 62.1 2.21

RB18025 180 240 25 1.5 84 143 3.44

RB19025 190 240 25 1 41.7 82.9 2.99

RB20025 200 260 25 2 84.2 157 4

RB20030 200 280 30 2 114 200 6.7

RB20035 200 295 35 2 151 252 9.58

RB22025 220 280 25 2 92.3 171 4.1

RB24025 240 300 25 2.5 68.3 145 4.5

RB25025 250 310 25 2.5 69.3 150 4.97

RB25030 250 330 30 2.5 126 244 8.1

RB25040 250 355 40 2.5 195 348 14.8

RB30025 300 360 25 2.5 76.3 178 5.88

RB30035 300 395 35 2.5 183 367 13.4

RB30040 300 405 40 2.5 212 409 17.2

RB35020 350 400 20 2.5 54.1 143 3.9

RB40035 400 480 35 2.5 156 370 14.5

RB40040 400 510 40 2.5 241 531 23.5

RB40070 400 580 70 2.5 470 811 72.4

RB45025 450 500 25 1 61.7 182 6.6

RB50025 500 550 25 1 65.5 201 7.3

RB50040 500 600 40 2.5 239 607 26

RB50050 500 625 50 2.5 267 653 41.7

RB50070 500 680 70 2.5 536 1020 86.1

RB60040 600 700 40 3 264 721 30.6

RB60070 600 780 70 3 591 1230 102

RB600120 600 870 120 3 1250 2270 274

RB70045 700 815 45 3 281 836 46.5

RB70070 700 880 70 3 630 1390 115

RB700150 700 1020 150 3 1660 3010 478
