We/JinHang Precision bearing Co.,LTD offer crossed roller bearing RA20013UUCC0 with double seal and CC0 Clearance. the inner ring and outer ring and roller material are GCr15. It is strictly required high precision and rigid.
RA20013UUCC0 Bearing dimension specification as follows:

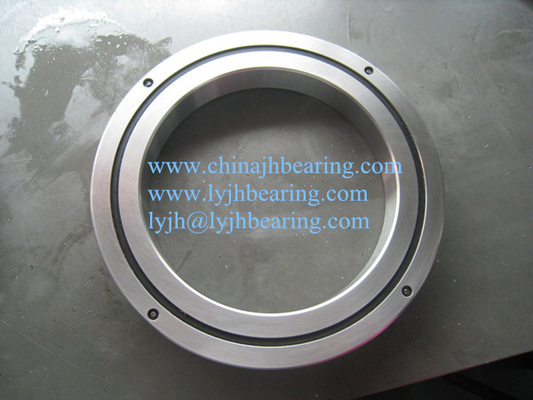

Crossed roller bearing RA20013UUCC0
Equal to THK:RA20013
|Outer ring:||226 mm|
|Delivery time||In stock|
|lubrication||No.2 Li Base grease|
|Precision grade||P4 P5 Grade|
UU:with seal attached on both sides
U:with seal attached on one side
C1:positive clearance(greater than CO)
Grade: No Symbol normal grade 0
USP:USP grade rotation accuracy
P5: P5 grade rotation accuracy
The delivery time: in stock

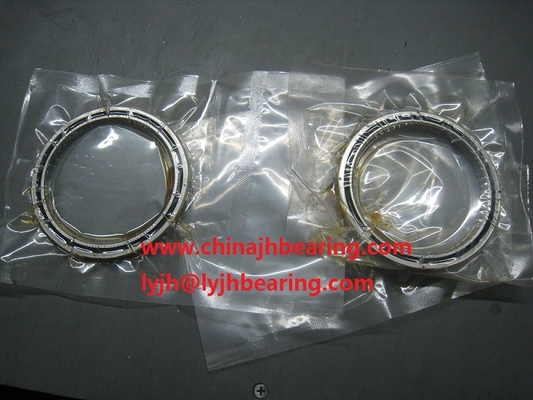

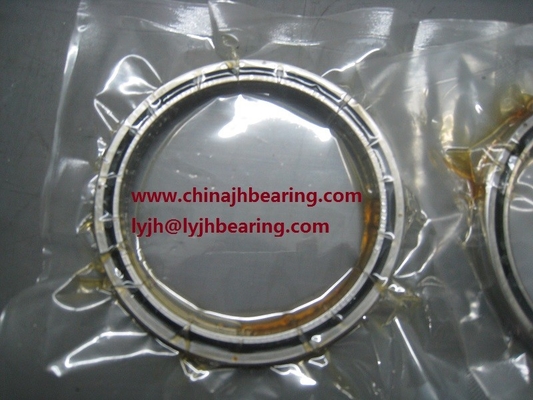

The package:vacuum packing and carton
Crossed roller beairng RA20013UUCC0 application:
Industry robot joints
Industry robot swiveling unit
Swiveling table of machining centers
Rotary units of manipulators
Precision rotary tables,
IC Manufacturing machines
RA20013UUCC0 crossed roller bearing features:
2.High rotational accuracy
3.Strictly dimension tolerance
5.Compact ,space saving
6.Easy installation and adjustment
Besides of RA20013UUCC0 ,We can offer RA5008UUCC0,RA6008UUCC0,RA8008UUCC0,RA7008UUCC0,RA9008UUCC0,RA11008UUCC0,RA12008UUCC0,RA10008UUCC0,RA13008UUCC0,RA14008UUCC0,RA15008UUCC0,RA16013UUCC0,RA170013UUCC0,RA18013UUCC0,RA19013UUCC0,RA20013UUCC0 and customized crossed roller bearing type.
About the crossed roller bearing RA20013UUCC0 Installation and lubrication:
For the RA20013UUCC0 Bearing we had filled in the good No.2 Li Base grease into them,then it can be directly mounted after receiving theRA19013UUCC0 Bearing.But compared with other conventional roller bearing,the internal space is smaller,so regular refill the grease is necessary.
The grease is entering into the oil holes which in the ring and connected with oil gap.The intervals are usually six months in one year.Please use the same grease to fill into the RA20013UUCC0 Bearing.
But note that,because of the resistance of grease,the torque moment will increase in a short time the the beginning period.After redundant grease overflows from the seals ,It will recover the normal torque value.
