offer Crossed roller bearing RA17013UUCC0 170x196x13mm application and specification,in stock

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

offer Crossed roller bearing RA17013UUCC0 170x196x13mm application and specification,in stock

China offer Crossed roller bearing RA17013UUCC0 170x196x13mm application and specification,in stock supplier
offer Crossed roller bearing RA17013UUCC0 170x196x13mm application and specification,in stock supplier offer Crossed roller bearing RA17013UUCC0 170x196x13mm application and specification,in stock supplier offer Crossed roller bearing RA17013UUCC0 170x196x13mm application and specification,in stock supplier offer Crossed roller bearing RA17013UUCC0 170x196x13mm application and specification,in stock supplier

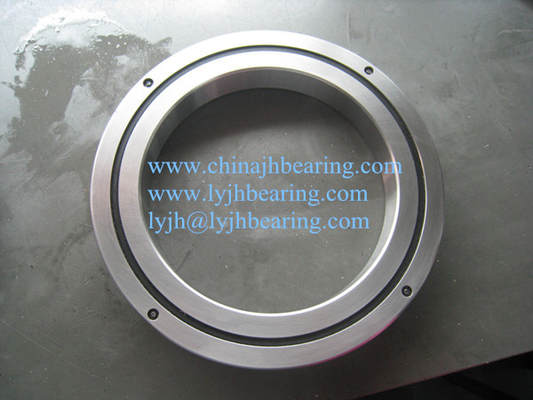

Large Image :  offer Crossed roller bearing RA17013UUCC0 170x196x13mm application and specification,in stock

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: Quality Certificate
Model Number: RA17013UUCC0

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD50
Packaging Details: vacuumize bag
Delivery Time: 2 days
Payment Terms: T/T,Paypal
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Material: GCr15 Clearance: UU0
Lubrication: No.2 Li Base Grease Delivery Time: In Stock

offer Crossed roller bearing RA17013UUCC0 170x196x13mm application and specification,in stock



We/JinHang Precision bearing Co.,LTD offer crossed roller bearing RA17013UUCC0  with double seal and CC0 Clearance. the inner ring and outer ring and roller material are GCr15. It is strictly required high precision and rigid.





The RA17013UUCC0  Bearing dimension specification as follows:



Name:

Crossed roller bearing RA17013UUCC0

Equal to THK:RA17013

IKO:CRBS1713

Boundary dimension(mm) 170x196x13mm
Inner ring: 170mm
Outer ring: 196 mm
Height: 13mm
Radial C 23.5KN
Radial Co 46.5KN
UU: Double seal
Clearance CCO
Delivery time In stock
package vacuumize bag
Rolling Cylindrical roller
material GCr15
lubrication No.2 Li Base grease
Precision grade P4 P5 Grade
weight 0.64KGS



UU:with seal attached on both sides
U:with seal attached on one side
CCO:negative clearance
CO:positive clearance
C1:positive clearance(greater than CO)
Grade: No Symbol normal grade 0
USP:USP grade rotation accuracy
P5: P5 grade rotation accuracy
The delivery time: in stock

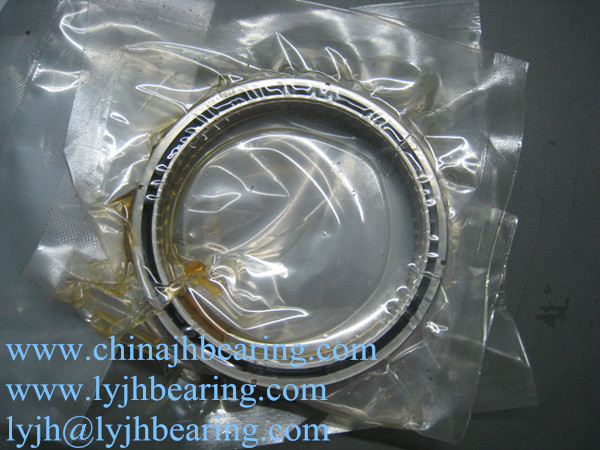

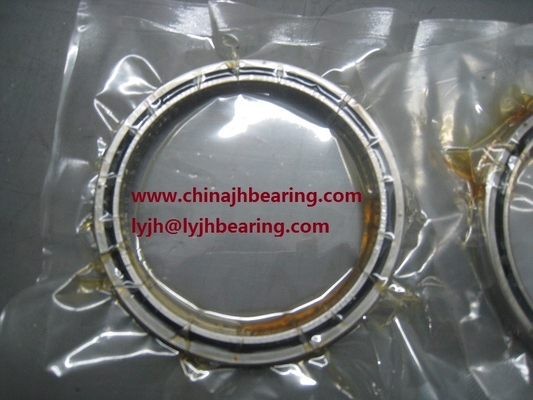

The package:vacuum packing and carton







offer Crossed roller bearing RA17013UUCC0 170x196x13mm application and specification,in stock



Crossed roller beairng RA17013UUCC0  application:
Industry robot joints
Industry robot swiveling unit
Swiveling table of machining centers
Rotary units of manipulators
Precision rotary tables,
Medical equipment
Measuring instruments
IC Manufacturing machines



RA17013UUCC0 crossed roller bearing features:
1.High rigidity
2.High rotational accuracy
3.Strictly dimension tolerance
4.Smooth rotation
5.Compact ,space saving
6.Easy installation and adjustment
7.Light series




Besides of RA17013UUCC0 ,We can offer RA5008UUCC0,RA6008UUCC0,RA8008UUCC0,RA7008UUCC0,RA9008UUCC0,RA11008UUCC0,RA12008UUCC0,RA10008UUCC0,RA13008UUCC0,RA14008UUCC0,RA15008UUCC0,RA16013UUCC0,RA170013UUCC0,RA18013UUCC0,RA19013UUCC0,RA20013UUCC0 and customized crossed roller bearing type.



offer Crossed roller bearing RA17013UUCC0 170x196x13mm application and specification,in stock



About the crossed roller bearing RA17013UUCC0 Installation and lubrication:
For the RA17013UUCC0 Bearing we had filled in the good No.2 Li Base grease into them,then it can be directly mounted after receiving theRA16013UUCC0  Bearing.But compared with other conventional roller bearing,the internal space is smaller,so regular refill the grease is necessary.


The grease is entering into the oil holes which in the ring and connected with oil gap.The intervals are usually six months in one year.Please use the same grease to fill into the RA17013UUCC0 Bearing.
But note that,because of the resistance of grease,the torque moment will increase in a short time the the beginning period.After redundant grease overflows from the seals ,It will recover the normal torque value.
