RA6008UUCC0 Crossed roller bearing 60x76x8mm parameter and application,in stock

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

RA6008UUCC0 Crossed roller bearing 60x76x8mm parameter and application,in stock

China RA6008UUCC0 Crossed roller bearing 60x76x8mm parameter and application,in stock supplier
RA6008UUCC0 Crossed roller bearing 60x76x8mm parameter and application,in stock supplier RA6008UUCC0 Crossed roller bearing 60x76x8mm parameter and application,in stock supplier RA6008UUCC0 Crossed roller bearing 60x76x8mm parameter and application,in stock supplier RA6008UUCC0 Crossed roller bearing 60x76x8mm parameter and application,in stock supplier

Large Image :  RA6008UUCC0 Crossed roller bearing 60x76x8mm parameter and application,in stock

Product Details:

Place of Origin: CHINA
Brand Name: JHB or OEM
Certification: ISO9001
Model Number: RA6008UUCC0

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD50-100
Packaging Details: carton and standard wooden case
Delivery Time: 1 days
Payment Terms: T/T,paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Material: GCr15 Grease: No.2 Li Base Grease
Delivery Time: In Stock Seal: Double Seal
Package: Carton

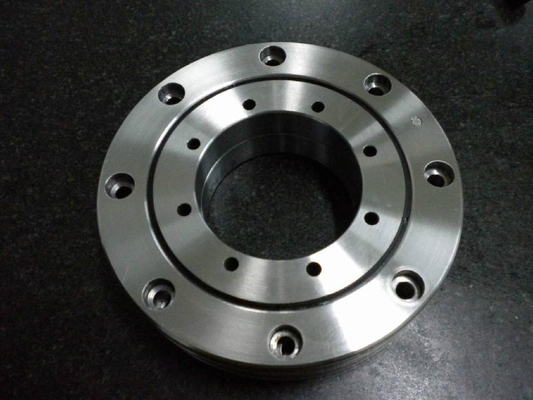

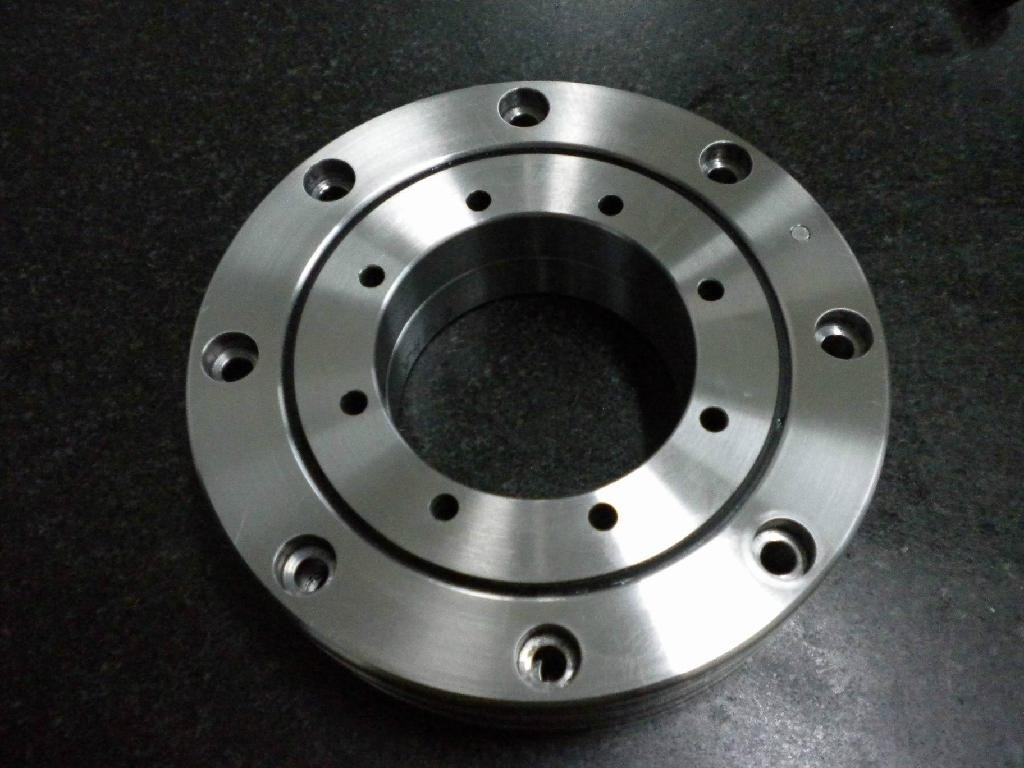

RA6008UUCC0 Crossed roller bearing 60x76x8mm parameter and application



JinHang Precision offer RA6008UUCC0 Bearing belongs to light and compact type with thinnest possible inner and outer ring.It is suit for place that weight reduction and downsizing are required,such as the hand swiveling unit robots and manipulators and CNC machine.

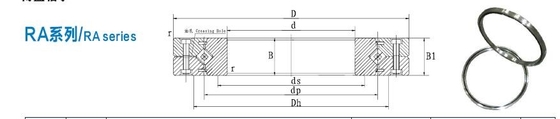

RA6008UUCC0 Bearing parameter as follows:



Bearing type

Boundary dimension

(mm)

Load rating weight Equivalent bearing type
RA6008UUCC0 d D B C C0 KGS
60 76 8 5.7 8.7 0.09

THK:RA6008

IKO:CRBS608



RA6008UUCC0 Crossed roller bearing 60x76x8mm parameter and application,in stock

UU:with seal attached on both sides
U:with seal attached on one side
CCO:negative clearance
CO:positive clearance
C1:positive clearance(greater than CO)
Grade: No Symbol normal grade 0
USP:USP grade rotation accuracy
P5: P5 grade rotation accuracy
The delivery time: in stock
The package:vacuum packing and carton



RA6008 UUCC0 Bearing application:
Industrial automation control
Robotics
Machine tools
Inspection and medical devices





About the crossed roller bearing RA6008UUCC0 Installation and lubrication:
For the RA6008UUCC0 Bearing we had filled in the good No.2 Li Base grease into them,then it can be directly mounted after receiving the RA6008 Bearing.But compared with other conventional roller bearing,the internal space is smaller,so regular refill the grease is necessary.


The grease is entering into the oil holes which in the ring and connected with oil gap.The intervals are usually six months in one year.Please use the same grease to fill into the RA6008 Bearing.
But note that,because of the resistance of grease,the torque moment will increase in a short time the the beginning period.After redundant grease overflows from the seals ,It will recover the normal torque value.
