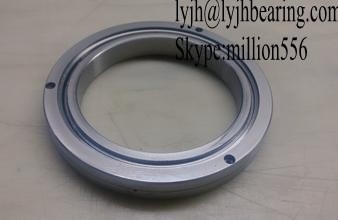

Crossed roller bearing RA19013C 190X216X13 MM,GCr15 material

 Crossed roller bearing RA19013C Belongs to Model RA-C(Single-split type).The major dimensions of this model are the same as that of model RA.Since the outer ring is split at one point to increase the rigidity of the outer ring, this model can also be used for outer ring rotation.

Name: RA19013C Bearing or RA19013C roller bearing or RA19013C Crossed roller bearing, The bearing RA19013C shaft diameter:190 mm,

Dimension(dxDxB):190X216X13 MM

Inner diameter (d):190mm

Outer diameter(D):216 mm

Width(B):13 mm

Weight:0.69kgs

Radial Basic load rating: C:24.9  KN, Co:51 KN

Precision grade:  P2 P4 P5 class

Material:GCr15,GCr15SiMn

Delivery time: in stock, after getting the order, within 2 days will send the customer,If ex-stock,it will need 30-40 days.

Shipping term: By DHL or UPS or Fedex or TNT or customer required.

Crossed roller bearing RA19013C application such as joints and swiveling units of industrial robots,swiveling table of machining centers,rotary units of manipulators, precison rotary table, medical equipment,meansuring instruments and IC manufacturing machines.

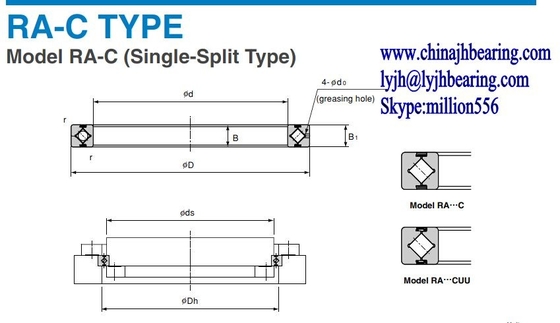

Crossed roller bearing RA19013C  rough drawing as following:
