RA16013C Bearing,RA16013C roller bearing ,RA16013C Crossed roller bearing 160X186X13 MM

 Crossed roller bearing RA16013C Belongs to Model RA-C(Single-split type).The major dimensions of this model are the same as that of model RA.Since the outer ring is split at one point to increase the rigidity of the outer ring, this model can also be used for outer ring rotation.

Name: RA16013C Bearing or RA16013C roller bearing or RA16013C Crossed roller bearing, The bearing RA16013C shaft diameter:160 mm,

Dimension(dxDxB):160X186X13 MM

Inner diameter (d):160mm

Outer diameter(D):186 mm

Width(B):13 mm

Weight:0.2kgs

Radial Basic load rating: C:23  KN, Co:44 KN

Precision grade:  P2 P4 P5 class

Material:GCr15,GCr15SiMn

Delivery time: in stock, after getting the order, within 2 days will send the customer,If ex-stock,it will need 30-40 days.

Shipping term: By DHL or UPS or Fedex or TNT or customer required.

Crossed roller bearing RA16013C application such as joints and swiveling units of industrial robots,swiveling table of machining centers,rotary units of manipulators, precison rotary table, medical equipment,meansuring instruments and IC manufacturing machines.

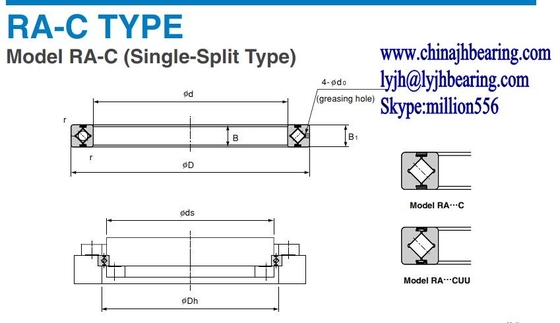

Crossed roller bearing RA16013C  rough drawing as following:
