To offer RA14008C beariing,RA14008C crossed roller bearing 140X156X8 MM

 Crossed roller bearing RA14008C Belongs to Model RA-C(Single-split type).The major dimensions of this model are the same as that of model RA.Since the outer ring is split at one point to increase the rigidity of the outer ring, this model can also be used for outer ring rotation.

Name: RA14008C Bearing or RA14008C roller bearing or RA14008C Crossed roller bearing, The bearing RA14008C shaft diameter:140 mm,

Dimension(dxDxB):140X156X8 MM

Inner diameter (d):140mm

Outer diameter(D):156 mm

Width(B):8 mm

Weight:0.19kgs

Radial Basic load rating: C:8.3  KN, Co:19.1 KN

Precision grade:  P2 P4 P5 class

Material:GCr15,GCr15SiMn

Delivery time: in stock, after getting the order, within 2 days will send the customer,If ex-stock,it will need 30-40 days.

Shipping term: By DHL or UPS or Fedex or TNT or customer required.

Crossed roller bearing RA14008C application such as joints and swiveling units of industrial robots,swiveling table of machining centers,rotary units of manipulators, precison rotary table, medical equipment,meansuring instruments and IC manufacturing machines.

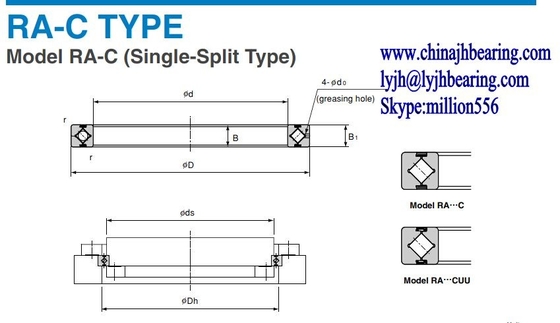

Crossed roller bearing RA14008C  rough drawing as following:
