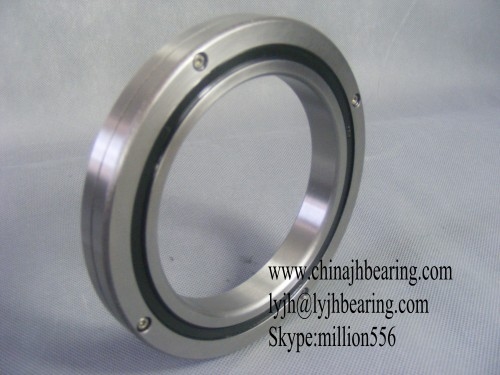

To order RA7008C bearing,RA7008C Crossed roller bearing 70X86X8 MM

 Crossed roller bearing RA7008C Belongs to Model RA-C(Single-split type).The major dimensions of this model are the same as that of model RA.Since the outer ring is split at one point to increase the rigidity of the outer ring, this model can also be used for outer ring rotation.

Name: RA7008C Bearing or RA7008C roller bearing or RA7008C Crossed roller bearing, The bearing RA7008C shaft diameter:70 mm,

Dimension(dxDxB):70X86X8 MM

Inner diameter (d):70mm

Outer diameter(D): 86 mm

Width(B):8 mm

Weight:0.09 kgs

Radial Basic load rating: C:5.98  KN, Co:9.8 KN

Precision grade:  P2 P4 P5 class

Material:GCr15,GCr15SiMn

Delivery time: in stock, after getting the order, within 2 days will send the customer,If ex-stock,it will need 30-40 days.

Shipping term: By DHL or UPS or Fedex or TNT or customer required.

Crossed roller bearing RA7008C application such as joints and swiveling units of industrial robots,swiveling table of machining centers,rotary units of manipulators, precison rotary table, medical equipment,meansuring instruments and IC manufacturing machines.

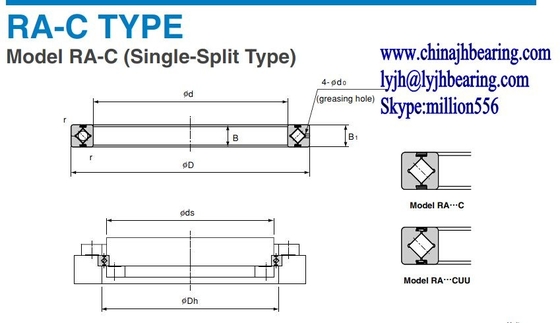

Crossed roller bearing RA7008C  rough drawing as following:
