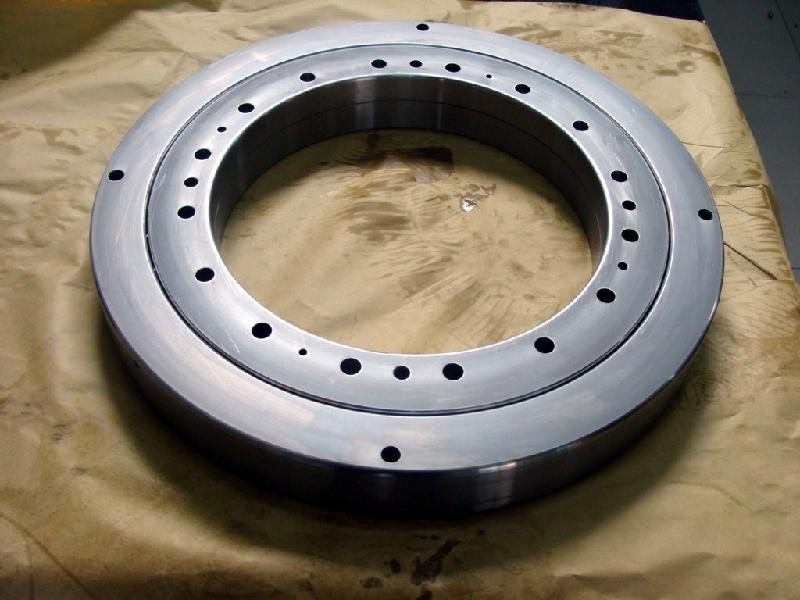

Crossed roller bearing RA20013,200X226X13 MM,P4 P5 Grade



Crossed roller bearing RA20013 Belongs to Model RA Separable outer   ring type for inner ring rotation.  Based on model RB,this model is a light and compact type with the thinnest possible inner and outer rings,It is optimal for locations where weight reduction and downsizing are required,such as the hand swiveling unit of robots and manipulators.

Name: RA20013 Bearing or RA20013 roller bearing or RA20013 Crossed roller bearing, The bearing RA20013 shaft diameter:200 mm,

Dimension(dxDxB):200X226X13 MM

Inner diameter (d):200mm

Outer diameter(D): 226 mm

Width(B):13 mm

Weight:0.71 kgs

Radial Basic load rating: C:25.8  KN, Co:54.7 KN

Precision grade:  P2 P4 P5 class

Material:GCr15,GCr15SiMn

Delivery time: in stock, after getting the order, within 2 days will send the customer,If ex-stock,it will need 30-40 days.

Shipping term: By DHL or UPS or Fedex or TNT or customer required.

Crossed roller bearing RA20013 application such as joints and swiveling units of industrial robots,swiveling table of machining centers,rotary units of manipulators, precison rotary table, medical equipment,meansuring instruments and IC manufacturing machines.

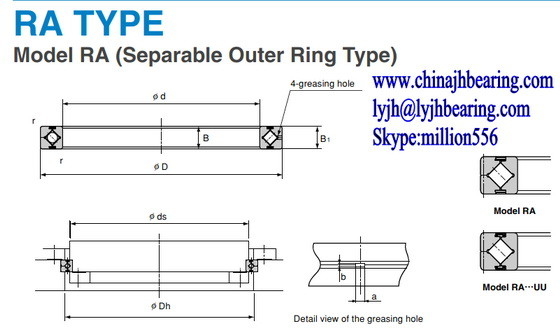

Crossed roller bearing RA20013  rough drawing as following:
