XSA141094N crossed roller slewing bearing with external gear,XSA141094N bearing supplier
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | Double Seal Rubber |
|---|---|---|---|
| Number Of Row: | Single Row |

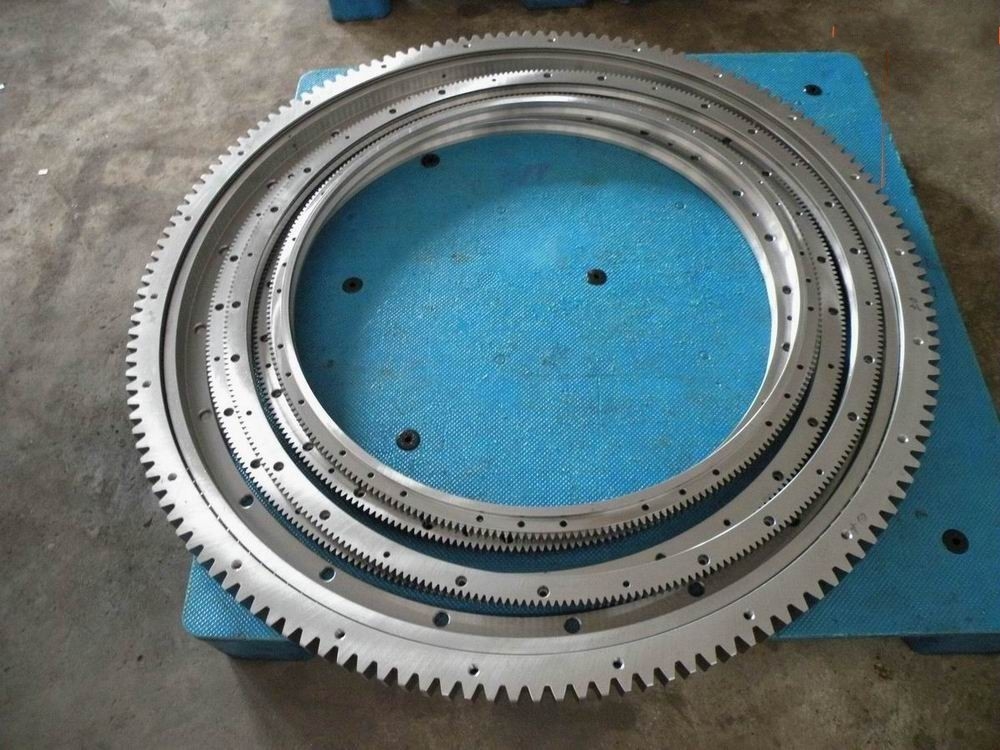

XSA141094N Bearing,XSA141094N crossed roller slewing bearing with external gear
teeth technology parameter as follow:
|
Description |
XSA141094N crossed roller slewing bearing |
|
Outside and Inside diameter tolerances |
in accordance with ISO2768-m |
|
dimension |
1198.1x1024x56 mm |
|
Outer diameter(OD) |
1198.1 mm |
|
Inner diameter(ID) |
1024 mm |
|
Width/Height/(H) |
56 mm |
|
Axial Ca |
390 KN |
|
Axial Cor |
1360 KN |
|
Radial Ca |
246 KN |
|
Radial Cor |
670 KN |
|
Gear teech do |
1184 |
|
Gear teeth m |
8 |
|
Gear teeth Z |
148 |
|
Material |
42CrMo,42CrMo4V,50Mn |
|
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
XSA141094N Crossed roller bearings structure description:
XSA141094N Crossed roller bearings are units comprising inner and outer rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples.
1.gear teeth on the outer ring, inner ring or without gear teeth.
2.bearing rings with through holes or threaded holes for fixing screws
3.are suitable for circumferential speeds
4.can support high radial loads,moderate axial loads and tilting moment loads.
5.are suitalbe for operating temperatures from -25 ℃ to +80 ℃

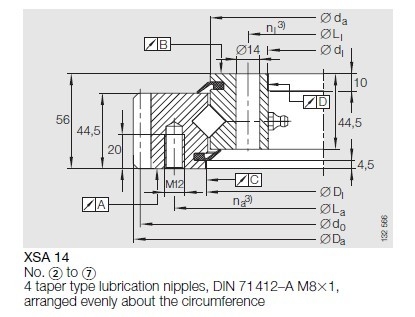

XSA14: Crossed roller bearing, standard series 14, external teeth, sealed, preloaded, lubrication nipple
on circumference of untoothed ring
Crossed roller bearings standard series 14 external gear teeth series XSA:
|
Designation |
Weight (kgs) |
Dimension (mm) |
Gear teeth |
Basic load ratings (KN) |
|||||||
|
Da |
di |
H |
do |
m |
z |
Axial Ca |
Axial Coa |
Radial Cr |
Radial Cor |
||
|
XSA 4 0414 N |
32 |
503.3 |
344 |
56 |
495 |
5 |
99 |
229 |
520 |
146 |
250 |
|
XSA 14 0544 N |
44 |
640.3 |
474 |
56 |
630 |
6 |
105 |
270 |
680 |
170 |
330 |
|
XSA 14 0644 N |
52 |
742.3 |
574 |
56 |
732 |
6 |
122 |
290 |
800 |
185 |
395 |
|
XSA 14 0744 N |
59 |
838.1 |
674 |
56 |
828 |
6 |
138 |
315 |
930 |
200 |
455 |
|
XSA 14 0844 N |
71 |
950.1 |
774 |
56 |
936 |
8 |
117 |
340 |
1050 |
215 |
510 |
|
XSA 14 0944 N |
77 |
1046.1 |
874 |
56 |
1032 |
8 |
129 |
360 |
1170 |
227 |
580 |
|
XSA 14 1094 N |
91 |
1198.1 |
1024 |
56 |
1184 |
8 |
148 |
390 |
1360 |
246 |
670 |
XSA141094N Bearing, XSA141094N Slewing ring, XSA141094N crossed roller slewing bearing Application:
Foundry operation
Construction machinery (e.g. crane, dragline excavator, vibratory roller)
Vehicles and vehicle attachments (e.g. lorry-mounted crane)
Fork lift trucks and fork lift truck attachments
Sewage treatment plant
Wind power equipment
Robots
Antennae
Machine tools
Measuring equipment
Medical equipment
JinHang Precision Bearing mainly export high quantities XSA140944N Slewing Bearing and relative products, we have huge stocks for XSA140944N slewing ring and relative items, we supply high quality XSA140944N four point contact ball Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in XSA140944N Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
