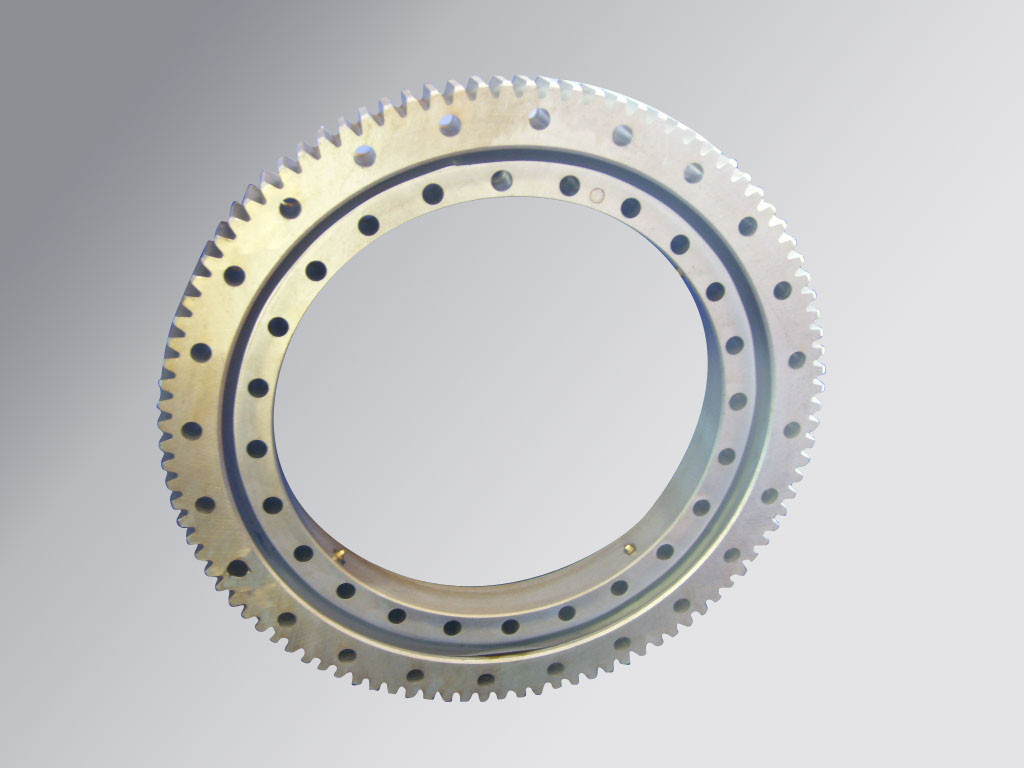

VLA200414N bearing,VLA200414N slewing ring,VLA200414N slewing bearing
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | Double Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
VA: Four point contact bearing, external teeth, sealed, selectable internal clearance, lubrication nipple
on circumference of untoothed ring
VLA200414N bearing,VLA200414N slewing ring,VLA200414N slewing bearing as follow:
Designation | Weight (kgs) | Dimension (mm) | Gear teeth | Basic load ratings (KN) | |||||||
Da | di | H | Do | m | z | Axial Ca | Axial Coa | Radial Cr | Radial Cor | ||

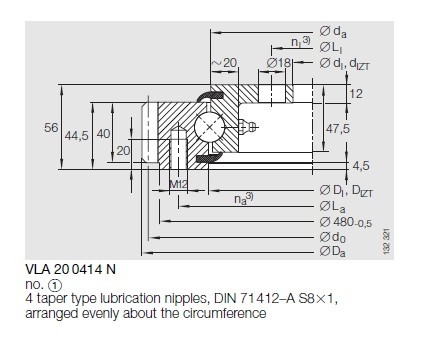

VLA 20 0414 N | 29.5 | 503.3 | 304 | 56 | 495 | 5 | 99 | 169 | 295 | 111 | 110 |
VLA 20 0544 N | 41.5 | 640.3 | 434 | 56 | 630 | 6 | 105 | 188 | 385 | 123 | 145 |
VLA 20 0644 N | 48.5 | 742.3 | 534 | 56 | 732 | 6 | 122 | 200 | 455 | 131 | 171 |
VLA 20 0744 N | 54.5 | 838.1 | 634 | 56 | 828 | 6 | 138 | 211 | 530 | 138 | 198 |
VLA 20 0844 N | 65.5 | 950.1 | 734 | 56 | 936 | 8 | 117 | 222 | 600 | 145 | 224 |
VLA 20 0944 N | 71.5 | 1046.1 | 834 | 56 | 1032 | 8 | 129 | 231 | 670 | 151 | 250 |
VLA 20 1094 N | 83.5 | 1198.1 | 984 | 56 | 1184 | 8 | 148 | 244 | 770 | 160 | 290 |
INA Slewing bearing,slewing ring Suffix and Description:
H:Hardened gear teeth on bearing ring
N:Normalised gear teeth on bearing ring
V:Quenched and tempered gear teeth on bearing ring
VSP:Bearing with preload
ZT:Centring on inner and outer rings
RR:Corrosion-resistant design with INA special plating Corrotect
RL0, 1, 2, 3: Restricted internal clearance
If you want to know more, please contact us as follows:
JinHang Precision Bearing Co.,Ltd
www.chinajhbearing.com www.lyjhbearing.com
E-mail: lyjh@lyjhbearing.com
MSN: lyjhbearing@hotmail.com
Skype: million556
