Home ProductsFour point contact ball slewing bearing

RKS.060.25.1754 four point contact slewing ring bearing China factory,1646x1862x68mm,turntable bearing supplier

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

RKS.060.25.1754 four point contact slewing ring bearing China factory,1646x1862x68mm,turntable bearing supplier

China RKS.060.25.1754 four point contact slewing ring bearing China factory,1646x1862x68mm,turntable bearing supplier supplier
RKS.060.25.1754 four point contact slewing ring bearing China factory,1646x1862x68mm,turntable bearing supplier supplier RKS.060.25.1754 four point contact slewing ring bearing China factory,1646x1862x68mm,turntable bearing supplier supplier RKS.060.25.1754 four point contact slewing ring bearing China factory,1646x1862x68mm,turntable bearing supplier supplier RKS.060.25.1754 four point contact slewing ring bearing China factory,1646x1862x68mm,turntable bearing supplier supplier

Large Image :  RKS.060.25.1754 four point contact slewing ring bearing China factory,1646x1862x68mm,turntable bearing supplier

Product Details:

Place of Origin: China
Brand Name: JHB or your required
Certification: ISO9001:2008
Model Number: RKS.060.25.1754

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-1000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: 25-35 days
Payment Terms: T/T,L/C, Western Union
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P0 P6 P5 Seals Type: Double Sealed
Material: 42CrMo 50Mn Package: Wooden Case

RKS.060.25.1754 four point contact slewing ring bearing China factory,1646x1862x68mm,turntable bearing supplier





RKS.060.25.1754  SKF code    Single row four-point contact ball slewing bearings

RKS.060.25.1754  slewing ring bearings,1646x1862x68mm, without gear,JBT10471 standard

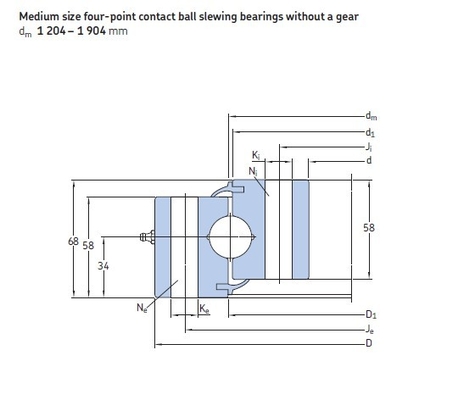

Dimensions - d (inside diameter): 1646 mm

Dimensions - D (outside diameter):1862 mm

Dimensions - B (width): 68mm

     RKS.060.25.1754 four point contact slewing ring bearing China factory,1646x1862x68mm,turntable bearing supplier



Basic Dimensions(mm)

Bearing Designations

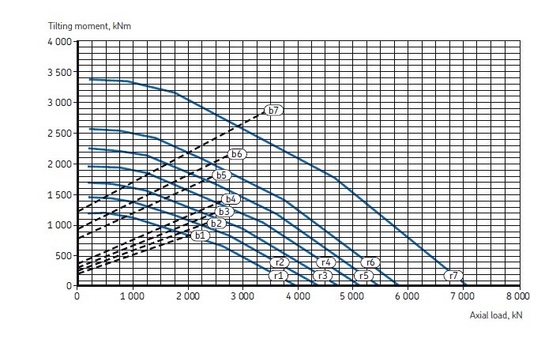

basic load rating(KN)

Weight

d

D

B

C

Co

(KGS)

1646

1862

68

RKS.060.25.1754

585

5840

222

RKS.060.25.1754  Single row four-point contact ball slewing bearings are simple in design. They are particularly versatile and offer many advantages for applications where there are light-tomedium axial, radial and moment loads.
RKS.060.25.1754   The outer ring and inner ring material: 42CrMo, 42CrMo4V,50Mn in accordance with EN 10083
Ball material: 100Cr6 bearing steel,in accordance with EN ISO683
Geart teeth accuracy grade: in accordance with ISO1328
Oil or grease material:Lithium grease
The inner ring and outer ring Material  hardness: quenching and tempering: HB229~269
Raceway case hardening :HRC55~62
  RKS.060.25.1754   The package,: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case. we can assure that the bearing shipping by sea or by air.
The delivery time:25-35 days

Generally, RKS.060.25.1754  slewing bearings are large-size rolling bearings that can accommodate axial, radial and moment loads acting either singly or in combination and in any direction. They can perform both slewing (oscillating) movements as well as rotational movements.
Basically, RKS.060.25.1754      slewing bearing consists of an inner ring , an outer ring and rolling elements−balls or cylindrical rollers−that are separated by polyamide spacers .The rings, one of which usually incorporates a gear , are provided with holes to accommodate attachment bolts. The holes may be threaded.
Generally, only the raceways in the rings are hardened and precision- ground. Integral seals  made of acrylonitrile- butadiene rubber (NBR) keep the lubricant in, and contaminants out of the bearing.

RKS.060.25.1754 Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines



RKS.060.25.1754 four point contact slewing ring bearing China factory,1646x1862x68mm,turntable bearing supplier


   If you want to know  RKS.060.25.1754    bearing  more, Please send us by e-mail  or call us, We will send the more details.
