FAG NN3014-AS-K-M-SP Cylindrical roller Bearing,70X110X30mm,two row roller,high precision

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

FAG NN3014-AS-K-M-SP Cylindrical roller Bearing,70X110X30mm,two row roller,high precision

China FAG NN3014-AS-K-M-SP Cylindrical roller Bearing,70X110X30mm,two row roller,high precision supplier

Large Image :  FAG NN3014-AS-K-M-SP Cylindrical roller Bearing,70X110X30mm,two row roller,high precision

Product Details:

Place of Origin: Germany
Brand Name: FAG or OEM
Certification: Quality certificate
Model Number: NN3014-AS-K-M-SP

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: in stock, if Ex-stock, It will need 5- 8 days
Payment Terms: T/T,L/C
Supply Ability: 1000 PCS/Month
Contact Now
Detailed Product Description
Precision Rating: P4 P5 Seals Type: No Seal
Number Of Row: Single Row




FAG bearings  NN3014-AS-K-M-SP

d:70 mm      D: 110mm        B: 30mm

Type:

NN

Cylindrical roller bearing, double row,

ribs on inner ring, outer ring ribless

Dimension series:

30

Medium series

Dimension(dxDxb)



70x110x30mm

External geometry

AS

Lubrication groove and lubrication holes

in outer ring of series NN30

Tapered bore

K

Tapered bore(taper 1:12)

Cages:

M

Brass cage,guided by rollers

Precision:

SP

Special precision



NN3014-AS-K-M-SP High Precision roller Bearing, N1014KM1SP Machine tool main spindle bearing

NN3014-AS-K-M-SP  FAG  High Speed roller Bearing, roller Bearing is Super precision  cylindrical roller bearing with 1:12 tapered bore and brass cage, bearing is SP quality and made in Germany

Item: NN3014-AS-K-M-SP  FAG Cylindrical roller  Bearing,FAG machine tool main spindle bearing

Type: super precision cylindrical roller Bearing

rolling: roller

Quality: SP Grade

Dimensions: 70mm x110mm x30mm /Metric

ID (inner diameter)/Bore: 70mm

OD (outer diameter): 110mm

Width/Height/thickness: 30mm

Size:70 x 110 x 30mm

Quantity: One Bearing

Dynamic load rating Cr: 98000 N

Static load rating Cor: 150000 N

Limiting Speed:

Grease Lubrication: 7000 RPM

Oil Lubrication: 8500 RPM

 the delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

  Shipping term:TNT,FEDEX,DHL UPS Express or your required.

FAG NN3014-AS-K-M-SP Cylindrical roller Bearing,70X110X30mm,two row roller,high precision

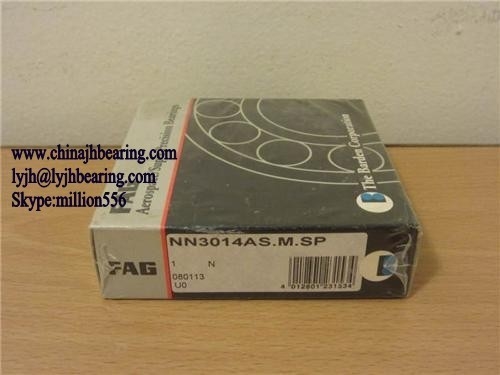

The bearing  NN3014-AS-K-M-SP Reference pictures as following:

        FAG NN3014-AS-K-M-SP Cylindrical roller Bearing,70X110X30mm,two row roller,high precision

 Price: if you want to know the price  NN3014-AS-K-M-SP  bearing ,Please send us:
