KG350AR0 thin wall bearing price,KG350AR0 thin section bearing application,dimension

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

KG350AR0 thin wall bearing price,KG350AR0 thin section bearing application,dimension

China KG350AR0 thin wall bearing price,KG350AR0 thin section bearing application,dimension supplier
KG350AR0 thin wall bearing price,KG350AR0 thin section bearing application,dimension supplier KG350AR0 thin wall bearing price,KG350AR0 thin section bearing application,dimension supplier

Large Image :  KG350AR0 thin wall bearing price,KG350AR0 thin section bearing application,dimension

Product Details:

Place of Origin: China
Brand Name: JHB or OEM
Certification: Quality certificate
Model Number: KG350AR0

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: available ,if unavailable,it will need 20-30 days
Payment Terms: T/T,L/C
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P5 P6 P0 Seals Type: No Seal
Number Of Row: Single Row

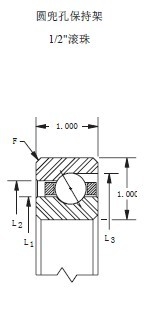

KG350AR0  Thin section open ball bearing with a 1’’ cross section width,KG350AR0  Bearing is a popular item that could be used in different application, the dimensions are 35x37x1 inch size, 889x939.8x25.4 mm , KG350AR0 Bearing without seal or shields.

Item:KG350AR0  Thin section ball bearing.
Type: Angular contact ball  bearing
Material:Chrome steel
Dimension: 35x37x1 inch size,or 889x939.8x25.4 mm,
ID(Inner diaeter) bore:35 inch size or 889 metric size
OD(Outer diameter) bore:37 inch size or 939.8 metric size
Width/Height/Thichkness:1 inch size or 25.4 metric size
Crosse section: 1 inch size or  25.4 metric size
Quantity: one bearing

The KAYDON Angular contact ball bearing KG350AR0 ,this is thin section or slim bearing , the thin section bearing have high precision,and very quite, high load. The slim bearing including three kinds design, including deep groove ball bearing, four point contact ball bearing, angular contact ball bearing, and the space is very little, Most of cross section is square,even if the large shaft diameter or bearing bore, the cross section keep original.

The quality standard: GB/T 292-2007 rolling bearing-angular contat ball bearing dimension

The Bearing KG350AR0   inner ring and outer ring ball forging material:AISI 52100 Type steel vacuum degassed, AISI440C Stainless steell.
The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.
The package: standard export wooden case or carton boxes.



The KAYDON Angular contact ball bearing KG350AR0  applicantion:Aerospace and astronomy instrumentation,Fixturing and workholding equipment,Food processing equipment, glassworking equipment, index and rotary tables, packaging equipment,machine tools, medical devices,optical scanning equipment, tire making equipment, radar,satellite and communication equipment, robotics, textile machinery,tube and pipe cutting machines, semiconductor manufacturing equipment, sorting equipment and so on.


If you want to know more, Please send us by e-mail
We will send the more details. Thanks.
