Gearboxes For Single And Twin Screw Feed Extrudes Use Bearing T5AR2362 M5CT2362 23x62x131mm

 Gearboxes For Single And Twin Screw Extrudes Use Bearing T5AR2362 M5CT2362 23x62x131mm

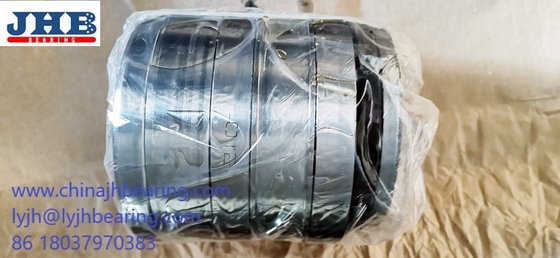

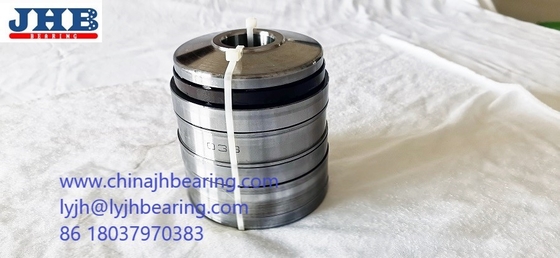

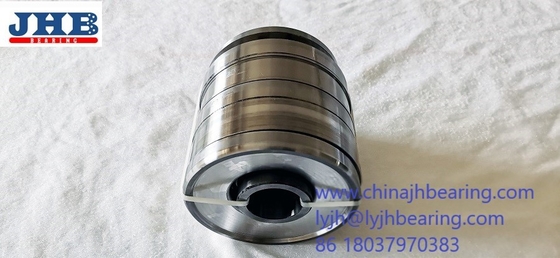

Tandem Thrust Bearings can receive heavy load in a limited space and support firmly in the direction of axis and last long with low frictional power. In addition, these bearings are moved by oil lubrication. Also these tandem thrust bearings are used principally in gear boxes for single & twin screw extruders in the rubber and plastic industries. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. The thrust cylindrical roller bearing T5AR2362 M5CT2362 with size 23*62*131mm , the inner diameter:23 mm, the outer diameter:62mm, the total height:131mm

JinHang Precision bearing offer Tandem thrust cylindrical roller T5AR2362 M5CT2362 23x62x131mm bearings have the characteristics of small radial cross-sectional size, compact structure, large axial load capacity, uniform load of each row of rollers, wear resistance, low vibration noise and long life. They are parallel twin screw extruders. Ideal screw spindle bearing.
The tandem bearing including two, three, four, five, six, seven or eight rows of tandem bearings in the company's sample according to the screw center distance, space and load size. The company also accepts tandem bearings of sizes and structures other than the sample.

Tandem bearings have the following structural types:
The basic type tandem bearing is to connect the shaft ring, the seat ring and the roller-cage assembly through the elastic spacer. This type of bearing is a separate structure, the parts can be disassembled, and it must be carefully installed and disassembled according to the numbering sequence provided by our company.

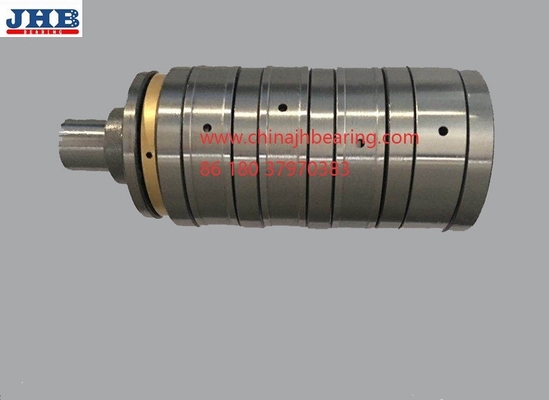

The tandem bearing with shaft is a modified structure bearing. A shaft is inserted in the inner hole of the basic tandem bearing, and the bearing is fixed on the shaft with an elastic lock ring. The bearing parts of this type are inseparable, and it is very convenient to install and dismount the whole bearing during use.

Tandem bearing with sleeve, sleeve is sleeved on the outside of the basic tandem bearing.

When using tandem bearings, the following recommendations should be adhered to:
1. Preload: 1% of the dynamic basic load rating. The dynamic basic load rating of each tandem bearing . Figures not listed will be provided by out institute on request.
2. Radial guidance: full complement cylindrical roller bearings or needle roller bearings can be used.
3. Eliminate tilting: the supporting parts must be machined to eliminate any tilting.
4. Mounting tolerances: recommended the following mounting tolerances: shaft f6 and housing bore F7.
5. Lubrication: tandem bearings must always be lubricated by oil circulation.
6. if you have the technology problem, Please contact us, we can offer the solve the solution for you.

Types of Extruder
Many types of extruders are used in the food industries and several designs are possible for a food extruder. The most commonly used extruder consists of the flighted screw(s) or worm(s) rotating within a sleeve or barrel to be termed as the screw extruder. However, the piston type extruders are possible though they are used in other type of industries. The flights on the screw push the plasticized material forward and discharge through an opening or the die. The details on the different type of extruders and their components are available (Harper, 1981; Yacu, 2012).

A variety of extruders have been developed to manufacture different types of food products. On the basis of the number of the screw, extruders can be classified as a single-screw or twin-screw extruders. The twin-screw extruder is partially developed on the experience and the knowledge derived from the understanding of single-screw extrusion cooking.
