NCF2938V Timken code cylindrical roller bearing,size:190x260x42mm,ISO246 Quality standard

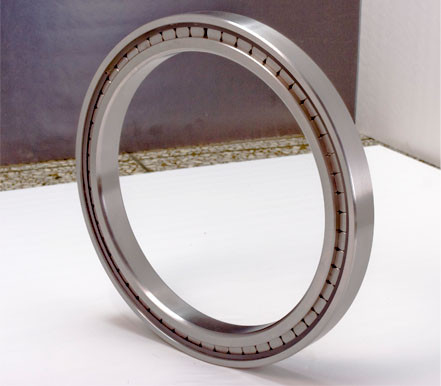

Large Image : NCF2938V Timken code cylindrical roller bearing,size:190x260x42mm,ISO246 Quality standard

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	Quality certificate
Model Number:	NCF2938V

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	1-10000USD/negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 10 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

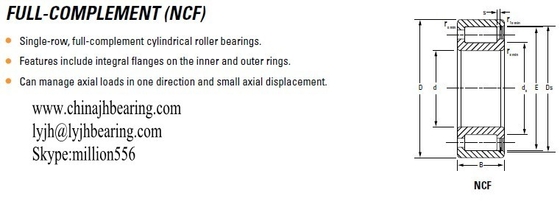

The NCF2938V full-complement (NCF) single-row bearings include integral flanges on the inner and outer rings. These bearings also can manage axial loads in one direction and permit small axial displacements.

The NCF2938 cylindrical roller bearing description as follows:

Name		Full complement single row cylindrical roller bearing NCF2938V
Bearing type		NCF2938V
Dimension		190x260x42 mm
ID(inner diameter)/Bore		190 mm
OD(outer diameter)		260 mm
Width/Height/thickness		42 mm
Load Rating	Static	803 KN
	Dynamic	487 KN
Speed Ratings	Oil	780 RPM
	Grease	660 RPM
Weight		6.5 KGS
Delivery time		In stock, If ex-stock, the manufacture time about 15-20 days
package		standard export wooden case
Quality standard		I S O 2 4 6/ GB/T 283
Material		GCr15 GCr15SiMn chorme steel
HS Code		8482500090

JinHang Precision Bearing mainly export precision cylindrical roller bearing Timken NCF2938V Bearing and relative products, we have huge stocks for NCF2938V bearing and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NCF2938V Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly. Thanks for your trust!
