Home ProductsFull complement cylindrical roller bearing

INA/FAG SL182988 bearing parameter,dimension, hardness, load rating and application

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

INA/FAG SL182988 bearing parameter,dimension, hardness, load rating and application

China INA/FAG SL182988  bearing parameter,dimension, hardness, load rating and application supplier
INA/FAG SL182988  bearing parameter,dimension, hardness, load rating and application supplier INA/FAG SL182988  bearing parameter,dimension, hardness, load rating and application supplier

Large Image :  INA/FAG SL182988 bearing parameter,dimension, hardness, load rating and application

Product Details:

Place of Origin: China
Brand Name: JHB or OEM
Certification: ISO9001:2008 or quality certificate
Model Number: SL182988

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 100-1000USD
Packaging Details: Standard export wooden case
Delivery Time: in stock or ex-stock
Payment Terms: T/T L/C
Supply Ability: 1000PCS/month
Contact Now
Detailed Product Description
Precision Rating: P5 P6 P0 Seals Type: Opened
Number Of Row: Single Row

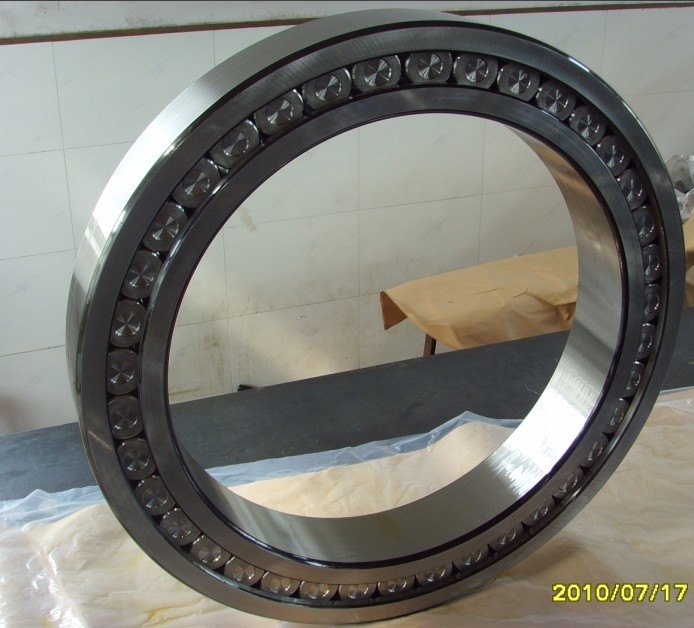

 Cylindrical roller bearings SL182988 semi-locating bearing, full complement cylindrical roller set,

  the dimension: 440x600x95 mm

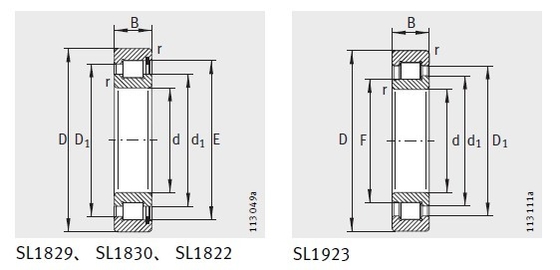

SL182988   bearing dimension details and rough drawing:

INA/FAG SL182988  bearing parameter,dimension, hardness, load rating and application

description

Full complete single row cylindrical roller bearing

Bearing type

INA/FAG  Code SL182988





Basic dimension(mm)

d

440 mm

D

600mm

B

95 mm

r min

4 mm

rl

s

7 mm

E

562 mm

F

---

D1

544.6  mm

d1

490 mm

B1

---

B2

B3

Basic load rating

Cr(KN)

2090 KN

Cor(KN)

4100  KN

Limiting speed

nG(rpm)

590 1/min



nB(rpm)

320 1/min

Weight



78.1   kgs

INA/FAG SL182988  bearing parameter,dimension, hardness, load rating and application



The bearing  SL182988  outer  and inner ring material and hardness:

The Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel

The  Inner ring and outer ring hardness: 58-62HRC

The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

SL182988   full complete cylindrical roller bearing application:
crane sheaves,Gear box producers,Transmission motor producers, Steel industry, Producers for construction equipment

Forest technology, Synthetic material industry, Machine tool producers, Producers of measuring devices and dividing units

Rotary table manufactures, Maritime industry, Metal forming technology, Crane sheave on the sea, Deck crane

Transmission, Planetary speed reducer, and so on.

  If you want to know   bearing  SL182988    more, Please send us by e-mail  or call us, We will send the more details. Thanks.

JinHang Precision Bearing Co.,LTD   www.chinajhbearing.com

E-mail: lyjh@lyjhbearing.com  or lyjhbearing@gmail.com

MSN:lyjhbearing@hotmail.com

Skype:million556
