INA/ FAG code SL181872-E bearing , dimension and load rating and application

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

INA/ FAG code SL181872-E bearing , dimension and load rating and application

China INA/ FAG code SL181872-E  bearing , dimension and load rating and application supplier
INA/ FAG code SL181872-E  bearing , dimension and load rating and application supplier INA/ FAG code SL181872-E  bearing , dimension and load rating and application supplier

Large Image :  INA/ FAG code SL181872-E bearing , dimension and load rating and application

Product Details:

Place of Origin: China
Brand Name: JHB or OEM
Certification: ISO9001:2008 or quality certificate
Model Number: SL181872-E

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 100-1000USD
Packaging Details: Standard export wooden case
Delivery Time: in stock or ex-stock
Payment Terms: T/T L/C
Supply Ability: 1000PCS/month
Contact Now
Detailed Product Description
Precision Rating: P5 P6 P0 Seals Type: Opened
Number Of Row: Single Row

Cylindrical roller bearings SL181872-E  semi-locating bearing, full complement cylindrical roller set,

  the dimension: 360x440x38 mm

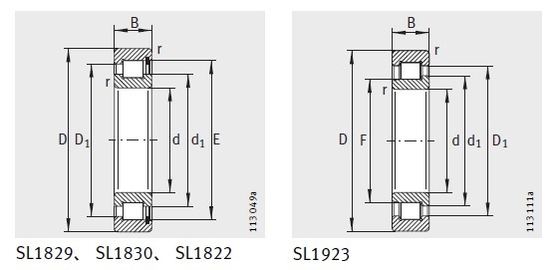

SL181872-E bearing dimension details and rough drawing:

INA/ FAG code SL181872-E  bearing , dimension and load rating and application

description

Full complete single row cylindrical roller bearing

Bearing type

INA/FAG  Code SL181872-E





Basic dimension(mm)

d

360 mm

D

440mm

B

38 mm

r min

2.1 mm

rl

s

3 mm

E

423.5 mm

F

---

D1

413.5 mm

d1

387  mm

B1

---

B2

B3

Basic load rating

Cr(KN)

500 KN

Cor(KN)

1010 KN

Limiting speed

nG(rpm)

770 1/min



nB(rpm)

530 1/min

Weight



11.5  kgs

INA/ FAG code SL181872-E  bearing , dimension and load rating and application

The bearing  SL181872-E outer  and inner ring material and hardness:

The Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel

The  Inner ring and outer ring hardness: 58-62HRC

The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

SL181872-E   full complete cylindrical roller bearing application:
crane sheaves,Gear box producers,Transmission motor producers, Steel industry, Producers for construction equipment

Forest technology, Synthetic material industry, Machine tool producers, Producers of measuring devices and dividing units

Rotary table manufactures, Maritime industry, Metal forming technology, Crane sheave on the sea, Deck crane

Transmission, Planetary speed reducer, and so on.

  If you want to know   bearing  SL181872-E  more, Please send us by e-mail  or call us, We will send the more details. Thanks.
