Precision Rating: | P4 P5 | Lubrication: | Oil Or Grease |
---|---|---|---|
Number Of Row: | Three Row | Roller: | Cylindrical |
Material: | GCr15SiMn | Clearance: | C0 |
Hardness: | 58-62 HRC | Package: | Standard Export Wooden Case |
Delivery Time: | 10 Days |

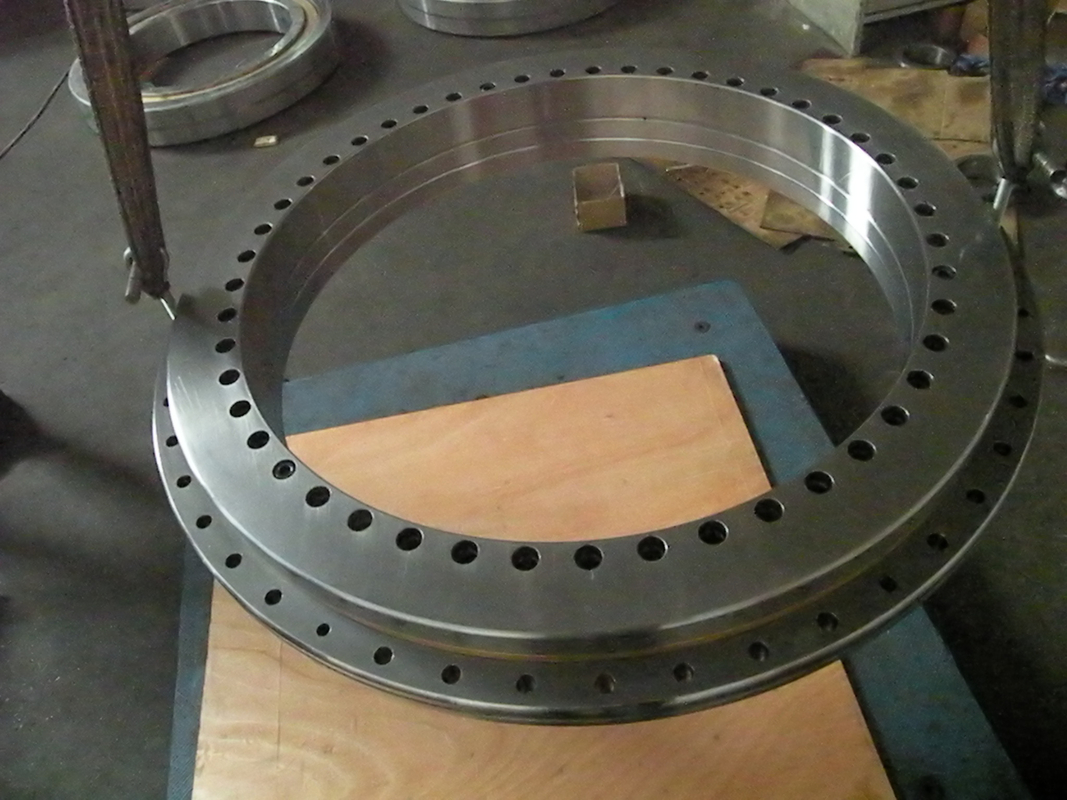

YRT650 bearing 650x870x122mm,brass cage,three row roller,GCr15SiMn material,58-62 Hardness
YRT 650 rotary table bearing belong to high precisi9on rotary bearing, the precision can reach to P5 Class.It will widely used in CNC rotary machine. with stable performance and high precision, It can help customer to improve the useage life and reduce the maintence expense.
The material: GCr15SiMn
The hardness:58-62 HRC hardness treatment
The cage material:brass
Delivery time: in stock, if ex-stock,It will need 10 days.
The YRT650 rotary table bearing parameter as follows:
Items |
Data |
Unit |
Description |
YRT650 rotary table bearing |
|
ID(inner diameter)/Bore |
650 |
mm |
OD(outer diameter) |
870 |
mm |
H:Width/Height/thickness |
122 |
mm |
d1 |
14 |
mm |
d2 |
20 |
mm |
d3 |
14 |
mm |
H1 |
78 |
mm |
H2 |
44 |
mm |
J |
680 |
mm |
J1 |
830 |
mm |
Ca (Axial Dynamic load rating) |
49.5 |
KN |
Coa (Axial Static load rating) |
5200 |
KN |
Cr (Radial Dynamic load rating) |
415 |
KN |
Cor (Radial Static load rating) |
1500 |
KN |
Ra (Roughness) |
1.6 |
μm |
Weight |
170 |
KGS |
The YRT650 Bearing details as follows:
Component |

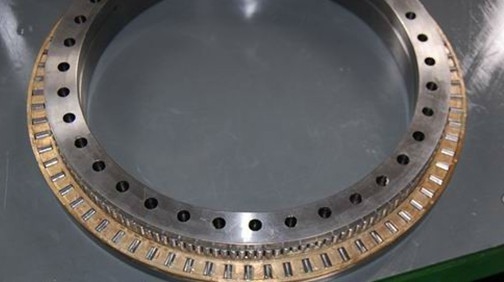

YRT650 bearing consist of a thrust/radial housing washer, a thrust/radial shaft washer, a thrust washer, two axial needle roller and cage assemblies and a group of radial cylindrical roller |
Details |
Housing washer and shaft washer have bolt holes for install equally spacer. This kind of bearing has high axial load and radial load, and high tilting rigidity and high precision. This bearing request higher quality of the parts matches it. You must control screw tightening torque when install it. |
Application |
This bearing can be used to the machine tool or other high precision machinery of the rotary table or subset, and also can be used for chuck, measuring instruments and test equipment and rotary table configuration. |
Material |
GCr15SiMn , |
Packing |
First lubricated, Second circled with plastic film/Kraft paper/blue belt, and then packaged in plywood case, last gathered in Wooden pallet |
Delivery time |
In stock, if not available,It will need 20-30 days |
Serive |
Our engineer can design the assembly drawing to you |
YRT series rotary table bearing product as follows:
Bearing No. |
Principal dimension(mm) |
Weight (kg) |
|||||||||
d |
D |
H |
H1 |
C |
d 1 |
dn |
dm |
||||
YRT50 |
50 |
126 |
30 |
20 |
10 |
105 |
63 |
116 |
1.6 |
||
YRT80 |
80 |
146 |
35 |
23.35 |
12 |
130 |
92 |
138 |
2.4 |
||
YRT100 |
100 |
185 |
38 |
25 |
12 |
160 |
112 |
170 |
4.1 |
||
YRT120 |
120 |
210 |
40 |
26 |
12 |
184 |
135 |
195 |
5.3 |
||
YRT150 |
150 |
240 |
40 |
26 |
12 |
214 |
165 |
225 |
6.2 |
||
YRT180 |
180 |
280 |
43 |
29 |
15 |
244 |
194 |
260 |
7.7 |
||
YRT200 |
200 |
300 |
45 |
30 |
15 |
274 |
215 |
285 |
9.7 |
||
YRT260 |
260 |
385 |
55 |
36.5 |
18 |
345 |
280 |
365 |
18.3 |
||
YRT325 |
325 |
450 |
60 |
40 |
20 |
415 |
342 |
430 |
25 |
||
YRT395 |
395 |
525 |
65 |
42.5 |
20 |
486 |
415 |
505 |
33 |
||
YRT460 |
460 |
600 |
70 |
46 |
22 |
560 |
482 |
580 |
45 |
||
YRT580 |
580 |
750 |
90 |
60 |
30 |
700 |
610 |
720 |
89 |
||
YRT650 |
650 |
870 |
122 |
78 |
34 |
800 |
680 |
830 |
170 |
||
YRT850 |
850 |
1095 |
124 |
80.5 |
37 |
1018 |
890 |
1055 |
253 |
||
YRT950 |
950 |
1200 |
132 |
86 |
40 |
1130 |
990 |
1160 |
312 |
||
YRT1030 |
1030 |
1300 |
145 |
92.5 |
40 |
1215 |
1075 |
1255 |
375 |
