Rotary table bearing YRT 395 in stock, directly offer/395x525x65 mm used in index table

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

Rotary table bearing YRT 395 in stock, directly offer/395x525x65 mm used in index table

China Rotary table bearing YRT 395  in stock,  directly offer/395x525x65 mm used in index table supplier
Rotary table bearing YRT 395  in stock,  directly offer/395x525x65 mm used in index table supplier Rotary table bearing YRT 395  in stock,  directly offer/395x525x65 mm used in index table supplier Rotary table bearing YRT 395  in stock,  directly offer/395x525x65 mm used in index table supplier Rotary table bearing YRT 395  in stock,  directly offer/395x525x65 mm used in index table supplier

Large Image :  Rotary table bearing YRT 395 in stock, directly offer/395x525x65 mm used in index table

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: Quality certificate
Model Number: YRT395

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-10000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: in stocks
Payment Terms: T/T,L/C, Western Union
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Bearing Type: YRT395 Delivery Time: In Stocks
Service: Offer Assembly Drawing Shipping Term: By Sea Or By Air

Rotary table bearing YRT 395 in stock, directly offer/395x525x65 mm used in index table





The YRT395 rotary table Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel
The YRT395 Bearing roller material : GCr15SiMn ,GCr15, Chrome steel
The YRT395 Bearing Inner ring and outer ring hardness: 58-62HRC
The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.
The delivery time:10-20 days
The package: standard export wooden case or carton boxes.

YRT395 rotary table bearing is a kind of bearing fixed by a bidirectional thrust bearing and a centripetal-guided bearing. They can support radial loads, axial loads from both directions and tilting moments free from clearance and are particularly suitable for bearing arrangements with high requirements for running accuracy,like rotary tables, millings heads and reversible clamps chucks , milling heads, measuring instruments , test equipment as well as rotary turntable.
.Due to the fixing holes in the bearing rings, the units are very easy to fit.


Items

Data

Unit

Description

YRT395

rotary table bearing



ID(inner diameter)/Bore

395

mm

OD(outer diameter)

525

mm

H:Width/Height/thickness

65

mm

d1

9.3

mm

d2

15

mm

d3

9.3

mm

H1

42.5

mm

H2

22.5

mm

J

415

mm

J1

505

mm

Ca (Axial Dynamic load rating)

202

KN

Coa (Axial Static load rating)

2010

KN

Cr (Radial Dynamic load rating)

133

KN

Cor (Radial Static load rating)

435

KN

Ra (Roughness)

0.8

μm

Weight

33

KGS

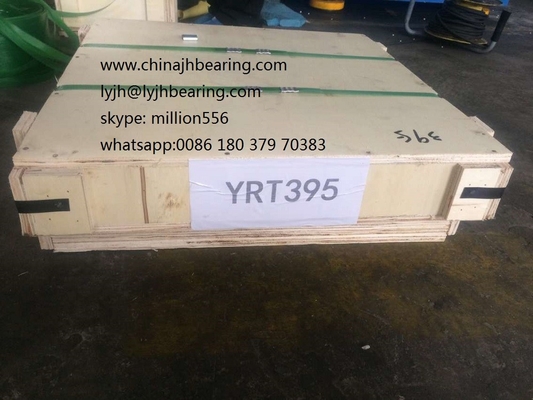

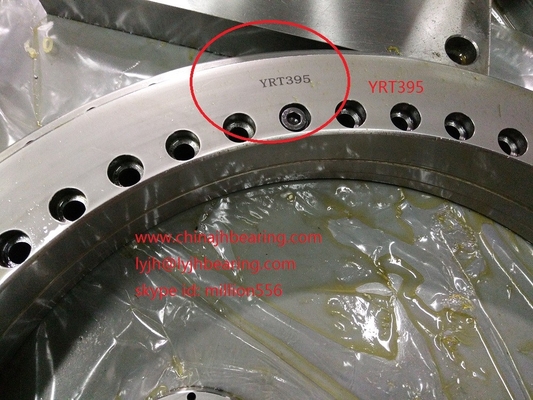

Rotary table bearing YRT 395 actual bearing picture :



Rotary table bearing YRT 395  in stock,  directly offer/395x525x65 mm used in index table
