HS7009-C-T-P4S-UL angular contact ball bearing 45x75x16 mm,HS7009CTP4SUL spindle bearing

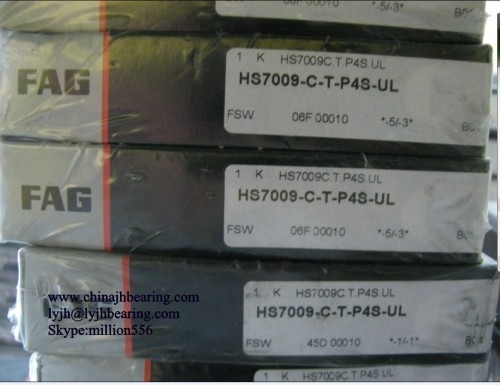

Large Image : HS7009-C-T-P4S-UL angular contact ball bearing 45x75x16 mm,HS7009CTP4SUL spindle bearing

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	HS7009-C-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	With Seal
Number Of Row:	Single Row

FAG bearings HS7009-C-T-P4S-UL adjusted, in pairs or sets, contact angle α = 15°, restricted tolerances, steel ball
d: 45mm D: 75mm B: 16mm
Type:	HS	Bearing with small balls steel balls
Dimension series:	70	Medium series
Dimension(dxDxh)		45x75x16mm
Contact angle:	C	C =15° E = 25°
Cages:	T	Plastic fiber cage, outer ring guided
Precision:	P4S	P4S FAG standard, reference to DIN620, higher than P4
Bearing arrangement:	U	single bearing, universal assemble
Preload:	L	light preload

HS7009-C-T-P4S-UL High Precision Ball Bearing HS7009-C-T-P4S-UL Machine tool main spindle bearing

HS7009-C-T-P4S-UL FAG High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phonetic cage, bearing is P4 quality and made in Germany

Item: HS7009.C.T.P4S.UL FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular contact Ball Bearing

ball: steel ball

Quality: P4 Grade

Dimensions: 45mm x75mm x16mm /Metric

ID (inner diameter)/Bore: 45mm

OD (outer diameter): 75mm

Width/Height/thickness: 16mm

Size:45 x 75 x 16 mm

Quantity: One Bearing

Dynamic load rating Cr:12900 N

Static load rating Cor: 12200 N
