FAG B7205-C-T-P4S-UL main spindle bearing 25x52x15 mm,P4 Grade,15 degrees Contact Angle

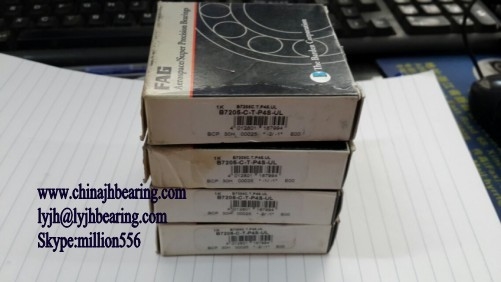

Large Image : FAG B7205-C-T-P4S-UL main spindle bearing 25x52x15 mm,P4 Grade,15 degrees Contact Angle

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	B7205-C-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	No Seal
Number Of Row:	Single Row

B7205-C-T-P4S-UL High Precision Ball Bearing,Machine tool main spindle bearing
B7205.C.T.P4S.UL FAG High Speed Angular contact Ball Bearing
15 degrees Contact Angle
P4 Grade
25mm x 52mm x 15mm
Made in Germany

B7205CTP4SUL FAG High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phenolic cage, bearing is P4 quality and made in Germany

Item: B7205.C.T.P4S.UL FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular contact Ball Bearing

ball: steel

Quality: P4 Grade

Dimensions: 25mm x 52mm x 15mm /Metric

ID (inner diameter)/Bore: 25mm

OD (outer diameter): 52mm

Width/Height/thickness: 15mm

Size:25 x 52 x 15 mm

Quantity: One Bearing

Dynamic load rating Cr: 18300 N

Static load rating Cor: 9200 N
