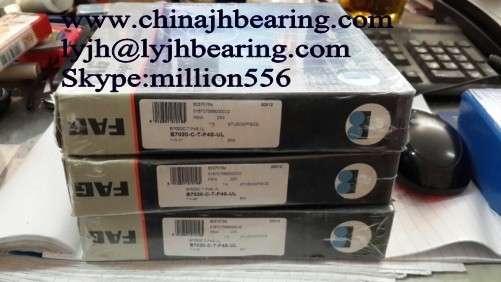

FAG B7020-C-T-P4S-UL main spindle bearing 100x150x24MM,P4 Grade,15 degrees Contact Angle

Large Image : FAG B7020-C-T-P4S-UL main spindle bearing 100x150x24MM,P4 Grade,15 degrees Contact Angle

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	B7020-C-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	No Seal
Number Of Row:	Single Row

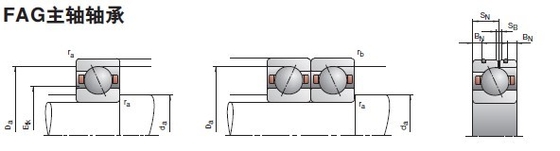

FAG bearings B7020-C-T-P4S-UL adjusted, in pairs or sets, contact angle α = 15°, restricted tolerances
d: 100mm D: 150mm B: 24mm
Type:	B	Standard Steel balls
Dimension series:	70	Medium series
Dimension(dxDxh)		100x150x24mm
Contact angle:	C	C =15° E = 25°
Cages:	T	Plastic fiber cage, outer ring guided
Precision:	P4S	P4S FAG standard, reference to DIN620, higher than P4
Bearing arrangement:	U	single bearing, universal assemble
Preload:	L	light preload

B7020-C-T-P4S-UL High Precision Ball Bearing,Machine tool main spindle bearing
B7020.C.T.P4S.UL FAG High Speed Angular contact Ball Bearing
15 degrees Contact Angle
P4 Grade
100mm x 150mm x 24mm
Made in Germany

B7020.C.T.P4S.UL FAG High Speed Angular Spindle Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phenolic cage, bearing is P4 quality and made in Germany

Item: B7020CTP4SUL FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular Spindle Ball Bearing

ball: steel

Quality: P4 Grade

Dimensions: 100mm x 150mm x 24mm /Metric

ID (inner diameter)/Bore: 100mm

OD (outer diameter): 150mm

Width/Height/thickness: 24mm

Size:100 x 150 x 24 mm

Quantity: One Bearing

Dynamic load rating Cr: 83000 N

Static load rating Cor: 57000 N
