B7018-E-T-P4S-UL spindle bearing,90x140x24mm,B7018.E.T.P4S.UL Angular contact Ball bearing

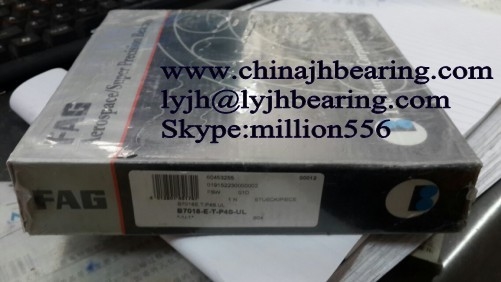

Large Image : B7018-E-T-P4S-UL spindle bearing,90x140x24mm,B7018.E.T.P4S.UL Angular contact Ball bearing

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	B7018-E-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	No Seal
Number Of Row:	Single Row

B7018-E-T-P4S-UL High Precision Ball Bearing,Machine tool main spindle bearing
B7018.E.T.P4S.UL FAG High Speed Angular contact Ball Bearing
25 degrees Contact Angle
P4 Grade
90mm x 140mm x 24mm
Made in Germany

B7018-E-T-P4S-UL FAG High Speed Angular Spindle Bearing, Ball Bearing is Super precision Angular with 25 degrees contact angle and Phenolic cage, bearing is P4 quality and made in Germany

Item: B7018.E.T.P4S.UL FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular Spindle Ball Bearing

ball: steel

Quality: P4 Grade

Dimensions: 90mm x 140mm x 24mm /Metric

ID (inner diameter)/Bore: 90mm

OD (outer diameter): 140mm

Width/Height/thickness: 24mm

Size:90 x 140 x 24 mm

Quantity: One Bearing

Dynamic load rating Cr: 74000 N

Static load rating Cor: 48500 N
