Precision Rating: | P4 P5 P6 | Seals Type: | Open Or Seal |
---|---|---|---|
Number Of Row: | Single Row |

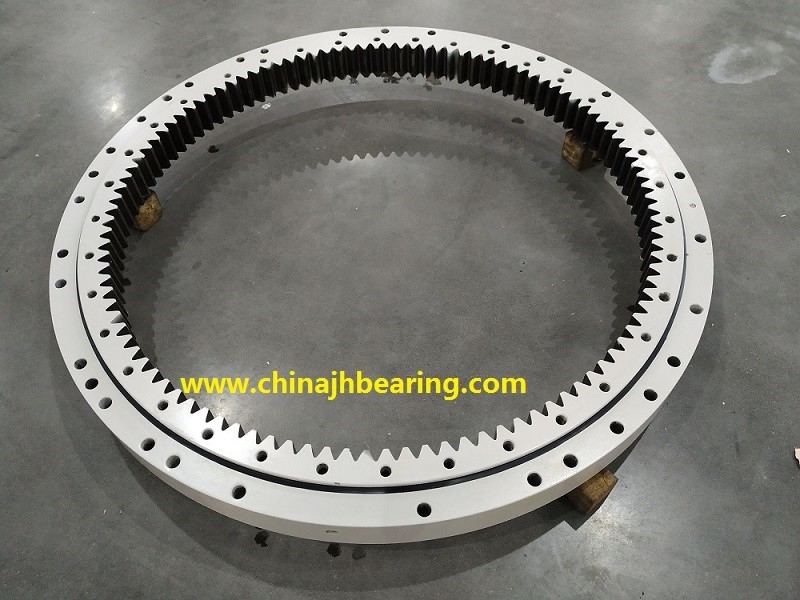

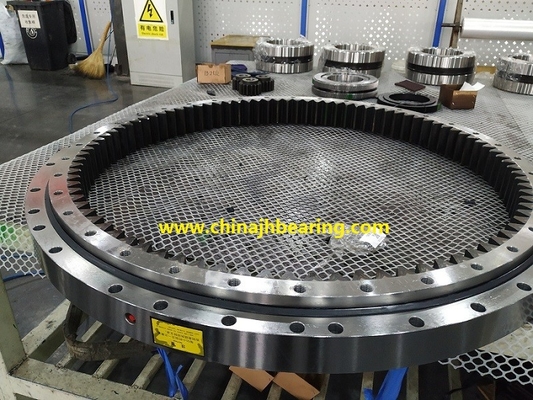

142DBS101Y four point contact ball Slewing bearing 1750x1424x120mm with internal gear
142DBS101Y slewing ring/turntable bearing used for crane equipment,It can bear axial load and radial direction load.
Now We will introduce Slewing bearing 142DBS101Y specification as follows:
Slewing bearing type | 142DBS101Y with external teeth |
Dimension: | 142DBS101Y |
Outer dia: | 1750 mm |
Inner dia: | 1424mm |
Height: | 120 mm |
Weight | 620 Kgs |
Outer ring hole distribute | equally distribute |
Inner ring hole qty | Equally sapce |
Outer ring and inner ring material | 50Mn |
Ball bearing | LYC ball Brand ,GCr15SiMn |
Lubrication | Grease lubrication |
142DBS101Y Slewing bearing external teeth parameter as follows:
No of teeth | Z=180 |
Press angle | A=20 degree |
M | X=8 |
Bearing are pre-greased in manufacture factory and can be re-lubricated by grease holes.
142DBS101Y Slewing bearing specification:
1) One bearing itself can accommodate axial loads,couple loads and radial loads;
2) Mounting holes or bolts on bearing rings make the bearing mounting very easy;
3) Bearing are pre-greased in manufacture factory and can be re-lubricated by grease holes.
4) Bearings should be only be stored lying down,never standing up.
5) The storage life of the bearing is limited by the storage life of the grease.Experience shows that the grease with a mineral oil base used can be stored for up to 3 years if the following precondtions are met: closed storage room,dry,clean rooms with temperatures between 0 degree to 40 degree, Relative atmospheric humidity not more than 65%,No influence by chemical agents such as vapors,gases ,fluids.
Please notice above the specification, If you have any question, Please contact us.
142DBS101Y Slewing bearing If you have question, Please contact us as following:
