Food Feed Extruder Multi-Stage Bearings T5AR3278 Size 32x78x137mm With Shaft In Stock

Food Feed Extruder Multi-Stage Bearings T5AR3278 Size 32x78x137mm With Shaft In Stock

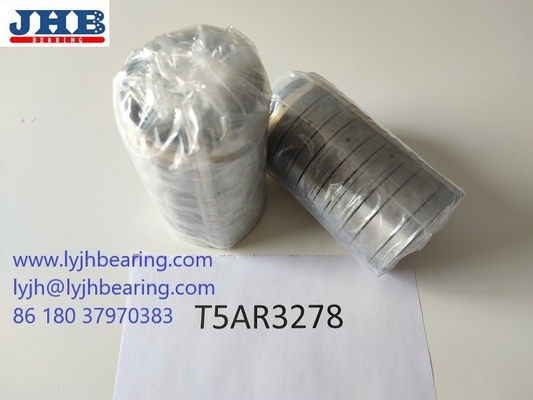

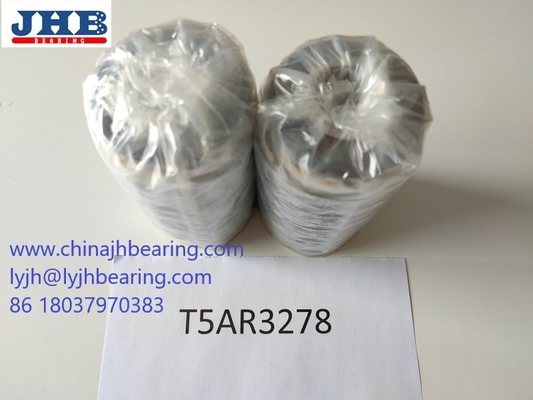

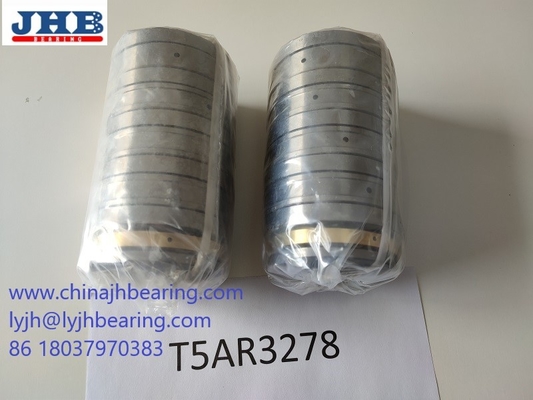

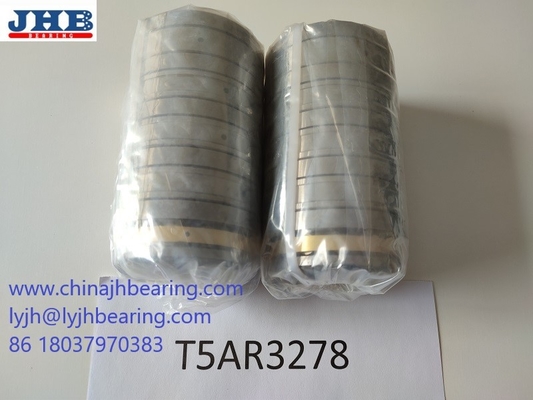

Tandem bearings T5AR3278 consist of several axial cylindrical roller bearings arranged in line, A system of rings and washers matched to each other ensures that all stages of the tandem bearing are subjected to uniform load at all times irrespective of the ratio C/F. The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. The thrust cylindrical roller bearing T5AR3278with size 32x78x137mm, the inner diameter:32 mm, the outer diameter:78mm, the total height:137mm

Food Extruders
Longitudinal section of a screw extruder of thermoplastic polymers. Plastic pellets are fed from a hopper into the barrel of the extruder, where the pellets are gradually melted by mechanical energy generated by a turning screw and by heaters arranged along the barrel. The molten polymer is forced through a die, which shapes the extrudate into products such as the examples shown.

Extruders are used to produce long continuous products such as tubing, tire treads, and wire coverings. They are also used to produce various profiles that can later be cut to length. Multiroll calenders are used to make wide sheeting. In transfer and injection molds, the…

There are two major types of extruders; single and twin screw (co-rotating and counter rotating). These come with a wide range of screw diameters (D), lengths (L), and designs. The single screw and co-rotating twin screw are inherently axially open-channel extruders. They can be regarded as drag flow pumps. Their output or degree of fill (if not running at maximum volumetric rate) can be impacted by the pressure flow within the extruder. Closely intermeshing counter-rotating twin screw extruders form closed channels in the intermeshing region. Their output is less vulnerable to the pressure flow within the extruder. As such, they can be considered as positive displacement pumps.
Food extruders utilize thermal and mechanical energy. Understanding energy consumption and input requirements is very important for improving performance and economical system design. Water is a common ingredient in almost all food extrusion formulations. It impacts the characteristics of the ingredients, melting behavior, and formed dough rheology. Part of this water can be sometimes applied in the form of steam, thus impacting the total extruder energy input, extruder output, system design, and operating conditions. Both forms of water can be directly metered into the extruder and/or into a preconditioning mixing device. The steam incorporation option can have a significant impact on the extruder selection, design, and performance, as well as on the product characteristics.
