Tandem bearings in large gearboxes T4AR1858 M4CT1858 18*58*101mm four row tandem structure

Tandem bearings in large gearboxes T4AR1858 M4CT1858 18*58*101mm four row tandem structure

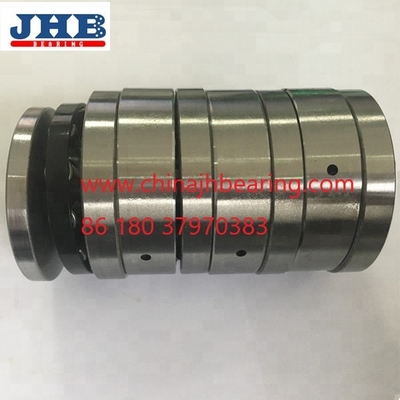

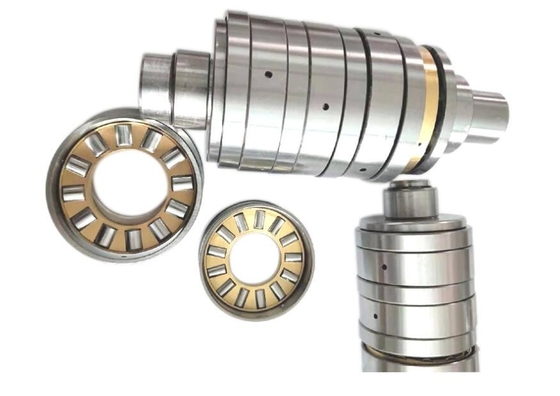

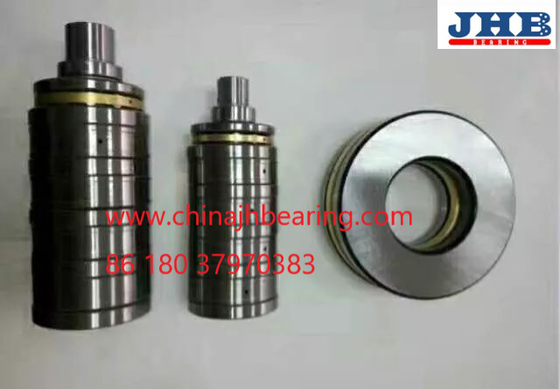

Tandem bearings T4AR1858 M4CT1858 consist of several axial cylindrical roller bearings arranged in line, A system of rings and washers matched to each other ensures that all stages of the tandem bearing are subjected to uniform load at all times irrespective of the ratio C/F. The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. The thrust cylindrical roller bearing T4AR1858 M4CT1858 with size 18*58*101MM, the inner diameter:18 mm, the outer diameter:58mm, the total height:101mm

Tandem bearings offer an optimum solution wherever the following requirements apply:
■ small radial design envelope
■ high axial forces
■ long operating life
■ low frictional energy.
Tandem bearings have proven effective principally in gearboxes for single and twin screw extruders in the rubber and plastics industry.
Other possible applications include:
■ deep hole drilling equipment
■ friction welding machines.

Why choose JHB bearings
Who we are?
We JINHANG Precision bearing are a professional
Precision bearing manufacturer in the world, established in 2005, specializing in slewing bearings, slewing drives,rotary table bearing,crossed roller bearing,cylindrical roller bearing,tapered roller bearing,spherical roller bearing,thrust roller bearing thrust ball bearing,tandem bearing,pinion and other special machine parts, with design, production, sales, marketing and service all over the world. For the high precision bearing,our precision grade can reach to P5 P4 P2 class.

Our team advantage:
We have 70 employees, with 10 experienced engineers and professional technicists. The most of Engineer from LYC and ZWZ brand factory, they had owned produce and design and after sales experienced to design the bearing.We can also design the drawing according to the bearing work condition to meet the customer requirement.

Manufacturing ability:
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.
Quality control:
All the bearing from the forging to assembly process,It will need to inspect step.For the bearing forging we will need to test the size and hardness and surface, for the lathe process and grinding process,first it will need to check by the worker ,and then the professional inspector will checking the size and accurate,The last step the monitor will inspect the size. It can insure zero defect.
Service:
It can calculate the load curve.
Can offer assembly drawing based on the bearing working condition
Can offer pre- sale ,sale and after sale service
