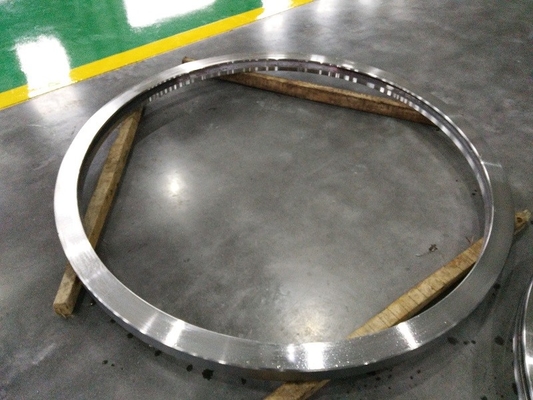

Slewing bearing SD.716.20.00.B turntable ring 716x572x56mm without gear teeth

 Slewing bearing SD.716.20.00.B turntable ring 716x572x56mm without gear teeth

Slewing bearing SD.716.20.00.B details as following:

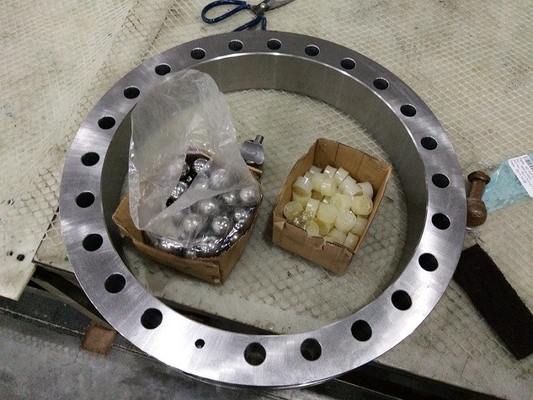

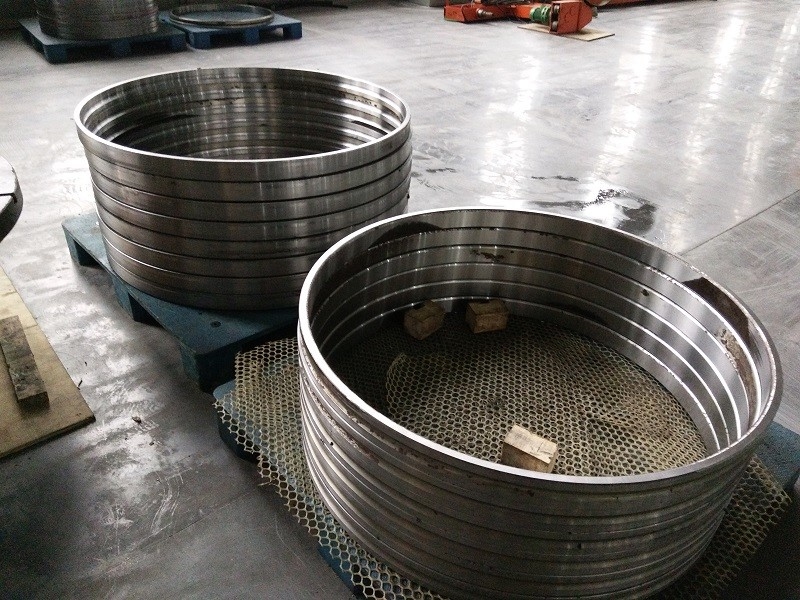

For slewing bearing SD.716.20.00.B manufacture process: order forging,lathe process ,grinding process and assembly process and keep in warehouse.
The slewing bearing SD.716.20.00.B quality control : Every process we will performance strictly ISO quality required, the first step the worker will inspected by themself, the second the professional QC person will inspected them, the third the department monitor will check them again.

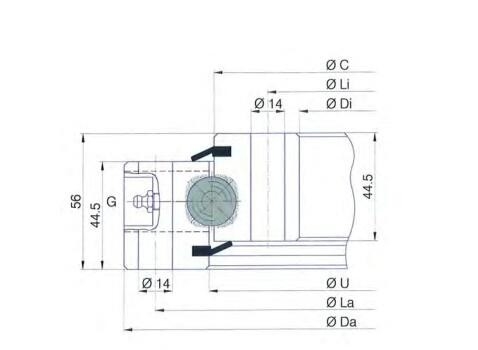

The slewing ring SD.716.20.00.B structure ,please check the profile:

SD.716.20.00.B slewing bearing transport and storage:

Slewing bearing required careful handing
Slewing bearing should always be transported and stored in horizontal position and be stored in dry roofed areas.
USE eye-bolts for horizontal handling,Impact,particularly in radical direction,must be avoided.
The surface of slewing bearing should be applied with anti-corrosion oil,and the anti-corrosion period is 6 months,longer storage(as backup,for example) periods will require special preservation.h
