NN3024KP5W33 cylindrical roller bearing in stocks,180x120x46mm for lathes machining centers use

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

NN3024KP5W33 cylindrical roller bearing in stocks,180x120x46mm for lathes machining centers use

China NN3024KP5W33 cylindrical roller bearing in stocks,180x120x46mm for lathes machining centers use supplier
NN3024KP5W33 cylindrical roller bearing in stocks,180x120x46mm for lathes machining centers use supplier NN3024KP5W33 cylindrical roller bearing in stocks,180x120x46mm for lathes machining centers use supplier NN3024KP5W33 cylindrical roller bearing in stocks,180x120x46mm for lathes machining centers use supplier

Large Image :  NN3024KP5W33 cylindrical roller bearing in stocks,180x120x46mm for lathes machining centers use

Product Details:

Place of Origin: China
Brand Name: JHB or OEM
Certification: Quality certificate
Model Number: NN3024KP5W33

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD100
Packaging Details: wooden case
Delivery Time: 2 days
Payment Terms: Western Union, T/T
Supply Ability: 3000PCS
Contact Now
Detailed Product Description
Material: GCr15 Package: Carton And Wooden Case
Delivery Time: In Stocks Brass: Brass Cage
W33: With Oil Groove K: Tapered Bore 1:12

NN3024KP5W33 cylindrical roller bearing in stocks,180x120x46mm for lathes machining centers use



NN3024KP5W33 double row cylindrical roller bearing with tapered bore P5 Grade.We JinHang Precision bearing factory offer high precision spindle bearing such as ball bearing,cylindrical roller bearing,rotary table bearing,turntable bearing,crossed roller bearing,slewing bearing. We can accept the Non-standard size to process.



For the machine tool cylindrical roller bearing NN3024KP5W33, the size as following:

Cylindrical roller bearing item Boundary size(mm) Outer dia(mm) Inner dia(mm) Height(mm)
NN3024KP5W33 180x120x46 180 120

46







NN:Double rolw cylindrical roller bearing

K:Tapered bore 1:12

Cage material: Brass material

Precision class:P5 class

Clearance: C0,C1 C2 C3 or other available

Delivery time: in stocks

Brand: JHB or OEM

Ring material:GCr15

W33:with groove hole for oil lubrication

CC1: Standard clearance for cylindrical bore

CC0: Standard clearance for tapered bore



NN3024KP5W33 cylindrical roller bearing feature and application :



Super Precision Cylindrical roller bearings are designed to specifically handle large radial loads in high speed applications. They are available in a variety of designs, including double row and single row options, to suit various applications. In addition, a standard lube groove and hole

feature is available along with tapered and non-tapered bores. When combined with Super Precision Angular Contact Thrust bearings, the Super Precision Cylindrical meets the high rigidity requirements of many machine tool spindle applications

Lathes Machining Centers › (NN) Double Row Design for High Radial Rigidity

Single row cylindrical roller bearing used for Single Row Design for Radial Rigidity and High Speed

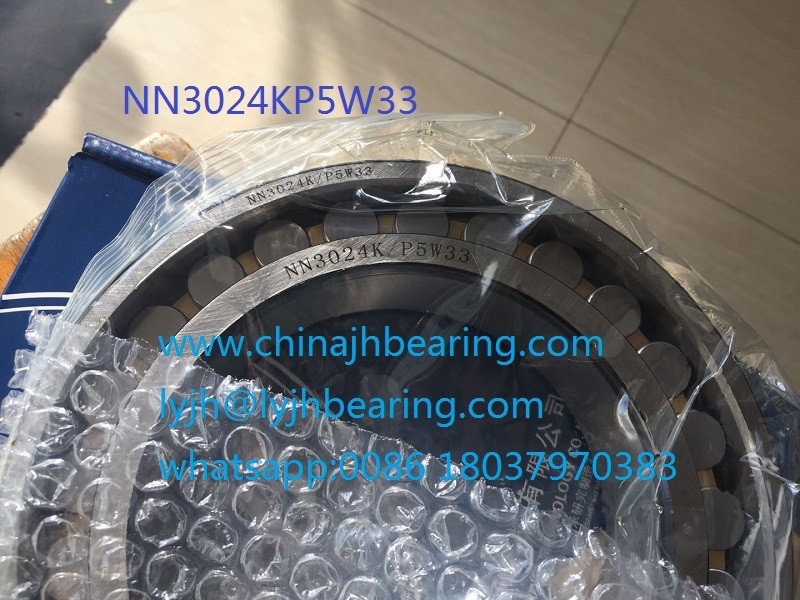

NN3024KP5W33 cylindrical roller bearing actual bearing pictures as following:

NN3024KP5W33 cylindrical roller bearing in stocks,180x120x46mm for lathes machining centers use
