Crossed roller bearing RB3010UUCC0 30x55x10mm application/lubrication/seals,offer sample in stocks

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

Crossed roller bearing RB3010UUCC0 30x55x10mm application/lubrication/seals,offer sample in stocks

China Crossed roller bearing RB3010UUCC0  30x55x10mm application/lubrication/seals,offer sample in stocks supplier
Crossed roller bearing RB3010UUCC0  30x55x10mm application/lubrication/seals,offer sample in stocks supplier Crossed roller bearing RB3010UUCC0  30x55x10mm application/lubrication/seals,offer sample in stocks supplier Crossed roller bearing RB3010UUCC0  30x55x10mm application/lubrication/seals,offer sample in stocks supplier Crossed roller bearing RB3010UUCC0  30x55x10mm application/lubrication/seals,offer sample in stocks supplier

Large Image :  Crossed roller bearing RB3010UUCC0 30x55x10mm application/lubrication/seals,offer sample in stocks

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: Quality Certificate
Model Number: RB3010UUCC0

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD50
Packaging Details: vacuumize bag
Delivery Time: 2 days
Payment Terms: T/T,Paypal
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Material: GCr15 Clearance: UU0
Lubrication: No.2 Li Base Grease Delivery Time: In Stock

offer Crossed roller bearing RB3010UUCC0 30x55x10mm application/lubrication/seals,in stock

RB3010UUCC0 Crossed roller bearing structure:
It consist of outer ring ,inner ring and small roller and spacer.Each roller in a crossed roller bearing is crossed at a 90° angle,which is able to handle the loading force from multiple direction at the same time. RA crossed roller bearing series belong to outer ring split in half, the inner ring whole unit.RB3010UUCC0 Bearing belongs to light and compact type with thinnest possible inner and outer ring.It is suit for place that weight reduction and downsizing are required,such as the hand swiveling unit robots and manipulators.
The ring and roller material are GCr15.



Crossed roller bearing RB3010UUCC0  30x55x10mm application/lubrication/seals,offer sample in stocks







UU:with seal attached on both sides
U:with seal attached on one side
CCO:negative clearance
CO:positive clearance
C1:positive clearance(greater than CO)
Grade: No Symbol normal grade 0
USP:USP grade rotation accuracy
P5: P5 grade rotation accuracy
The delivery time: in stock

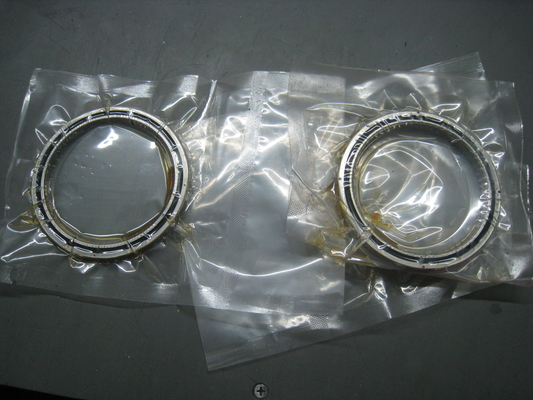

The package:vacuum packing and carton







Crossed roller bearing RB3010UUCC0  30x55x10mm application/lubrication/seals,offer sample in stocks



Crossed roller beairng RB3010UUCC0 application:
Industry robot joints
Industry robot swiveling unit
Swiveling table of machining centers
Rotary units of manipulators
Precision rotary tables,
Medical equipment
Measuring instruments
IC Manufacturing machines



RB3010UUCC0 crossed roller bearing features:
1.High rigidity
2.High rotational accuracy
3.Strictly dimension tolerance
4.Smooth rotation
5.Compact ,space saving
6.Easy installation and adjustment
7.Light series




Besides of RB3010UUCC0    ,We can offer RA5008UUCC0,RA6008UUCC0,RA8008UUCC0,RA7008UUCC0,RA9008UUCC0,RA11008UUCC0,RA12008UUCC0,RA10008UUCC0,RA13008UUCC0,RA14008UUCC0,RA15008UUCC0,RA16013UUCC0,RA170013UUCC0,RA18013UUCC0,RA19013UUCC0,RA20013UUCC0 , RB2008UUCC0, RB2508UUCC0,and customized crossed roller bearing type.



Crossed roller bearing RB3010UUCC0  30x55x10mm application/lubrication/seals,offer sample in stocks



About the crossed roller bearing RB3010UUCC0 Installation and lubrication:
For the RB3010UUCC0 Bearing we had filled in the good No.2 Li Base grease into them,then it can be directly mounted after receiving the RB3010UUCC0  Bearing.But compared with other conventional roller bearing,the internal space is smaller,so regular refill the grease is necessary.


The grease is entering into the oil holes which in the ring and connected with oil gap.The intervals are usually six months in one year.Please use the same grease to fill into the RB3010UUCC0 Bearing.
But note that,because of the resistance of grease,the torque moment will increase in a short time the the beginning period.After redundant grease overflows from the seals ,It will recover the normal torque value.



YRT series rotary table bearing product as follows:

Bearing No. Principal dimension(mm)

Weight

(kg)

d D H H1 C d 1 dn dm
YRT50 50 126 30 20 10 105 63 116 1.6
YRT80 80 146 35 23.35 12 130 92 138 2.4
YRT100 100 185 38 25 12 160 112 170 4.1
YRT120 120 210 40 26 12 184 135 195 5.3
YRT150 150 240 40 26 12 214 165 225 6.2
YRT180 180 280 43 29 15 244 194 260 7.7
YRT200 200 300 45 30 15 274 215 285 9.7
YRT260 260 385 55 36.5 18 345 280 365 18.3
YRT325 325 450 60 40 20 415 342 430 25
YRT395 395 525 65 42.5 20 486 415 505 33
YRT460 460 600 70 46 22 560 482 580 45
YRT580 580 750 90 60 30 700 610 720 89
YRT650 650 870 122 78 34 800 680 830 170
YRT850 850 1095 124 80.5 37 1018 890 1055 253
YRT950 950 1200 132 86 40 1130 990 1160 312
